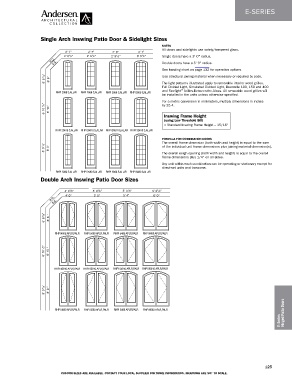

Page 127 - Andersen Architectural Collection E-Series 2017-18 Product Guide for Professionals

Single Arch Inswing Patio Door & Sidelight Sizes
NOTES
All doors and sidelights use safety/tempered glass.
2' 1" 2' 7" 2' 9" 3' 1"
1
1
2' 0 /2" 2' 6 /2" 2' 8 1 /2" 3' 0 1 /2" Single doors have a 3' 0" radius.
R.O. F.S. Double doors have a 5' 0" radius.
See handing chart on page 132 for operation options.
6' 8 1 /2" 6' 8" Use structural joining material when necessary or required by code.
The light patterns illustrated apply to removable interior wood grilles,
Full Divided Light, Simulated Divided Light, Decorelle 100, 150 and 400
™
RHPI 2068 S,AL,AR RHPI 2668 S,AL,AR RHPI 2868 S,AL,AR RHPI 3068 S,AL,AR and Finelight Grilles-Between-the-Glass. All removable wood grilles will
be installed in the units unless otherwise specified.
For a metric conversion in millimeters, multiply dimensions in inches
6' 10 1 /2" 6' 10" by 25.4.
Inswing Frame Height
(using Low Threshold Sill)
= Standard Inswing Frame Height – 15/16"
RHPI 20610 S,AL,AR RHPI 26610 S,AL,AR RHPI 28610 S,AL,AR RHPI 30610 S,AL,AR
FORMULA FOR COMBINATION DOORS
The overall frame dimension (both width and height) is equal to the sum
8' 0 1 /2" 8' 0" of the individual unit frame dimensions plus joining material dimension(s).
The overall rough opening (both width and height) is equal to the overall
frame dimensions plus 1/4" on all sides.
Any unit within each combination can be operating or stationary except for
direct-set units and transoms.
RHPI 2080 S,AL,AR RHPI 2680 S,AL,AR RHPI 2880 S,AL,AR RHPI 3080 S,AL,AR
Double Arch Inswing Patio Door Sizes

1
1
4' 0 /2" 5' 0 /2" 5' 4 /2" 6' 0 /2"
1
1
4' 0" 5' 0" 5' 4" 6' 0"
R.O. F.S.
6' 8 1 /2" 6' 8 "

RHPI 4068 APLR,PALR RHPI 5068 APLR,PALR RHPI 5468 APLR,PALR RHPI 6068 APLR,PALR

6' 10 1 /2" 6' 10 "

RHPI 40610 APLR,PALR RHPI 50610 APLR,PALR RHPI 54610 APLR,PALR RHPI 60610 APLR,PALR

8' 0 1 /2" 8' 0 "

RHPI 4080 APLR,PALR RHPI 5080 APLR,PALR RHPI 5480 APLR,PALR RHPI 6080 APLR,PALR Hinged Patio Doors
E-Series

125
CUSTOM SIZES ARE AVAILABLE. CONTACT YOUR LOCAL SUPPLIER FOR MORE INFORMATION. DRAWINGS ARE NOT TO SCALE.
