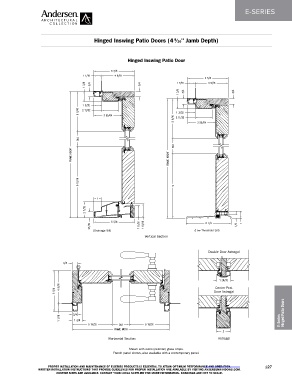

Hinged Inswing Patio Doors (4 / 16" Jamb Depth)
9

Hinged Inswing Patio Door

(Drainage Sill) (Low Threshold Sill)
Vertical Section

Double Door Astragal

Center Post
Door Astragal
Hinged Patio Doors

E-Series

Horizontal Section Astragal
Shown with ovolo (colonial) glass stops.
French panel shown, also available with a contemporary panel.
