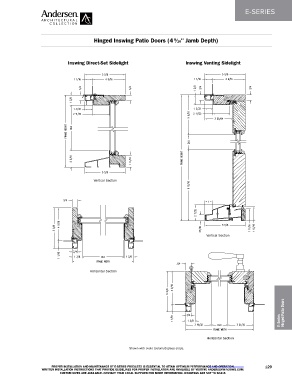

Hinged Inswing Patio Doors (4 / 16" Jamb Depth)
9
Inswing Direct-Set Sidelight Inswing Venting Sidelight
Vertical Section
Vertical Section
Horizontal Section
Hinged Patio Doors
E-Series
Horizontal Section
Shown with ovolo (colonial) glass stops.
