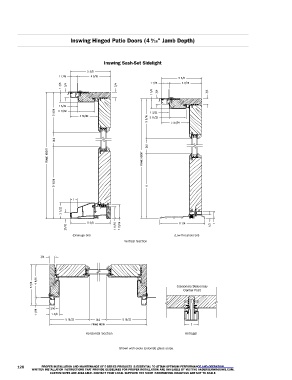

Inswing Hinged Patio Doors (4 / 16" Jamb Depth)
9
Inswing Sash-Set Sidelight
(Drainage Sill) (Low Threshold Sill)
Vertical Section
Stationary-Stationary
Center Post
Horizontal Section Astragal
Shown with ovolo (colonial) glass stops.
