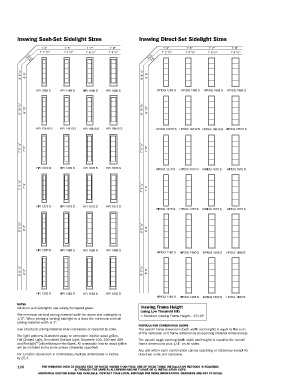

Page 122 - Andersen Architectural Collection E-Series 2017-18 Product Guide for Professionals

Inswing Sash-Set Sidelight Sizes Inswing Direct-Set Sidelight Sizes

1' 3" 1' 5" 1' 7" 1' 9" 1' 3" 1' 5" 1' 7" 1' 9"
1
1
1' 2 /2" 1' 4 /2" 1' 6 1 /2" 1' 8 1 /2" 1' 2 /2" 1' 4 /2" 1' 6 /2" 1' 8 /2"
1
1
1
1
R.O. F .S. R.O. F .S.
6' 8 1 /2" 6' 8" 6' 8 1 /2" 6' 8"
HPI 1268 S HPI 1468 S HPI 1668 S HPI 1868 S HPIDG 1268 S HPIDG 1468 S HPIDG 1668 S HPIDG 1868 S

6' 10 1 /2" 6' 10" 6' 10 1 /2" 6' 10"

HPI 12610 S HPI 14610 S HPI 16610 S HPI 18610 S HPIDG 12610 S HPIDG 14610 S HPIDG 16610 S HPIDG 18610 S

7' 0 1 /2" 7' 0" 7' 0 1 /2" 7' 0"

HPI 1270 S HPI 1470 S HPI 1670 S HPI 1870 S HPIDG 1270 S HPIDG 1470 S HPIDG 1670 S HPIDG 1870 S

7' 3 1 /2" 7' 3" 7' 3 1 /2" 7' 3"

HPI 1273 S HPI 1473 S HPI 1673 S HPI 1873 S
HPIDG 1273 S HPIDG 1473 S HPIDG 1673 S HPIDG 1873 S

8' 0 1 /2" 8' 0" 8' 0 1 /2" 8' 0"

HPI 1280 S HPI 1480 S HPI 1680 S HPI 1880 S
HPIDG 1280 S HPIDG 1480 S HPIDG 1680 S HPIDG 1880 S

8' 3 1 /2" 8' 3" 8' 3 1 /2" 8' 3"

HPI 1283 S HPI 1483 S HPI 1683 S HPI 1883 S
HPIDG 1283 S HPIDG 1483 S HPIDG 1683 S HPIDG 1883 S
NOTES
All doors and sidelights use safety/tempered glass. Inswing Frame Height
(using Low Threshold Sill)
The minimum vertical joining material width for doors and sidelights is = Standard Inswing Frame Height – 15/16"
1/2". When joining a venting sidelight to a door, the minimum vertical
joining material width is 2".
FORMULA FOR COMBINATION DOORS
Use structural joining material when necessary or required by code. The overall frame dimension (both width and height) is equal to the sum
of the individual unit frame dimensions plus joining material dimension(s).
The light patterns illustrated apply to removable interior wood grilles,
Full Divided Light, Simulated Divided Light, Decorelle 100, 150 and 400 The overall rough opening (both width and height) is equal to the overall
™
and Finelight Grilles-Between-the-Glass. All removable interior wood grilles frame dimensions plus 1/4" on all sides.
will be installed in the units unless otherwise specified.
Any unit within each combination can be operating or stationary except for
For a metric conversion in millimeters, multiply dimensions in inches direct-set units and transoms.
by 25.4.
120 FOR WINDOWS OVER 30 SQUARE FEET OR RATED HIGHER THAN PG50, ONE OF THESE THREE INSTALLATION METHODS IS REQUIRED:
A) THROUGH THE JAMB B) ALUMINUM NAILING FLANGE OR C) INSTALLATION CLIPS.
ADDITIONAL CUSTOM SIZES ARE AVAILABLE. CONTACT YOUR LOCAL SUPPLIER FOR MORE INFORMATION. DRAWINGS ARE NOT TO SCALE.
