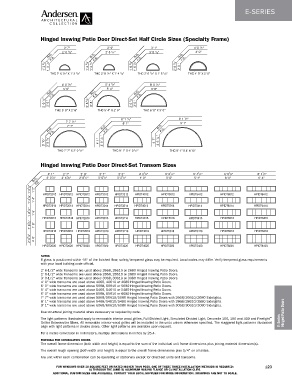

Page 125 - Andersen Architectural Collection E-Series 2017-18 Product Guide for Professionals

Hinged Inswing Patio Door Direct-Set Half Circle Sizes (Specialty Frame)

2' 7" 2' 9" 3' 1" 4' 0 1 /2"
2' 6 1 /2" 2' 8 1 /2" 3' 0 1 /2" 4' 0"
R.O. F.S. R.O. F.S. R.O. F.S. R.O. F.S.
1' 3 3 /4" 1' 3 1 /4" 1' 4 3 /4" 1' 4 1 /4" 1' 6 3 /4" 1' 6 1 /4" 2' 0 1 /2" 2' 0 "
THC 2' 6 1 /2" X 1' 3 1 /4" THC 2' 8 1 /2" X 1' 4 1 /4" THC 3' 0 1 /2" X 1' 6 1 /4" THC 4' 0" X 2' 0"

5' 0 1 /2" 5' 4 1 /2" 6' 0 1 /2"
5' 0" 5' 4" 6' 0"
R.O. F.S. R.O. F.S. R.O. F.S.
2' 6 1 /2" 2' 6 " 2' 8 1 /2" 2' 8 " 3' 0 1 /2" 3' 0 "

THC 5' 0" X 2' 6" THC 5' 4" X 2' 8" THC 6' 0" X 3' 0"
8' 1 1 /2" 9' 1 1 /2"
7' 7 1 /2" 8' 1" 9' 1"
7' 7" R.O. R.O.
R.O. F.S. F.S. F.S.

3' 10" 3' 9 1 /2" 4' 1" 4' 0 1 /2 " 4' 7" 4' 6 1 /2 "
THC 7' 7" X 3' 9 1 /2" THC 8' 1" X 4' 0 1 /2" THC 9' 1" X 4' 6 1 /2"

Hinged Inswing Patio Door Direct-Set Transom Sizes
1
1
1
1
1
2' 1" 2' 7" 2' 9" 3' 1" 3' 3" 4' 0 /2" 5' 0 /2" 5' 4 /2" 6' 0 /2" 6' 4 /2"
1
1
1
1
1
R.O. F .S. 2' 0 /2" 2' 6 /2" 2' 8 /2" 3' 0 /2" 3' 2 /2" 4' 0" 5' 0" 5' 4" 6' 0" 6' 4"
1' 2 1 /2" 1' 2" HPIDT2012 HPIDT2612 HPIDT2812 HPIDT3012 HPIDT3212 HPIDT4012 HPIDT5012 HPIDT5412 HPIDT6012 HPIDT6412
1' 4 1 /2" 1' 4"
HPIDT2014 HPIDT2614 HPIDT2814 HPIDT3014 HPIDT3214 HPIDT4014 HPIDT5014 HPIDT5414 HPIDT6014 HPIDT6414
1' 6 1 /2" 1' 6"
HPIDT2016 HPIDT2616 HPIDT2816 HPIDT3016 HPIDT3216 HPIDT4016 HPIDT5016 HPIDT5416 HPIDT6016 HPIDT6416
1' 8 1 /2" 1' 8"
HPIDT2018 HPIDT2618 HPIDT2818 HPIDT3018 HPIDT3218 HPIDT4018 HPIDT5018 HPIDT5418 HPIDT6018 HPIDT6418
2' 0 1 /2" 2' 0"
HPIDT2020 HPIDT2620 HPIDT2820 HPIDT3020 HPIDT3220 HPIDT4020 HPIDT5020 HPIDT5420 HPIDT6020 HPIDT6420
NOTES
If glass is positioned within 18" of the finished floor, safety/tempered glass may be required. Local codes may differ. Verify tempered glass requirements
with your local building code official.
2' 6-1/2" wide transoms are used above 2668, 26610 or 2680 Hinged Inswing Patio Doors.
2' 8-1/2" wide transoms are used above 2868, 28610 or 2880 Hinged Inswing Patio Doors.
3' 0-1/2" wide transoms are used above 3068, 30610 or 3080 Hinged Inswing Patio Doors.
4' 0" wide transoms are used above 4068, 40610 or 4080 Hinged Inswing Patio Doors.
5' 0" wide transoms are used above 5068, 50610 or 5080 Hinged Inswing Patio Doors.
5' 4" wide transoms are used above 5468, 54610 or 5480 Hinged Inswing Patio Doors.
6' 0" wide transoms are used above 6068, 60610 or 6080 Hinged Inswing Patio Doors.
7' 7" wide transoms are used above 5068/50610/5080 Hinged Inswing Patio Doors with 2668/26610/2680 Sidelights.
8' 1" wide transoms are used above 5468/54610/5480 Hinged Inswing Patio Doors with 2868/28610/2880 Sidelights.
9' 1" wide transoms are used above 6068/60610/6080 Hinged Inswing Patio Doors with 3068/30610/3080 Sidelights.
Use structural joining material when necessary or required by code. Hinged Patio Doors
The light patterns illustrated apply to removable interior wood grilles, Full Divided Light, Simulated Divided Light, Decorelle 100, 150 and 400 and Finelight E-Series
™
Grilles-Between-the-Glass. All removable interior wood grilles will be installed in the units unless otherwise specified. The staggered light patterns illustrated
align with light patterns in double doors. Other light patterns are available upon request.
For a metric conversion in millimeters, multiply dimensions in inches by 25.4.
FORMULA FOR COMBINATION DOORS
The overall frame dimension (both width and height) is equal to the sum of the individual unit frame dimensions plus joining material dimension(s).
The overall rough opening (both width and height) is equal to the overall frame dimensions plus 1/4" on all sides.
Any unit within each combination can be operating or stationary except for direct-set units and transoms.
FOR WINDOWS OVER 30 SQUARE FEET OR RATED HIGHER THAN PG50, ONE OF THESE THREE INSTALLATION METHODS IS REQUIRED: 123
A) THROUGH THE JAMB B) ALUMINUM NAILING FLANGE OR C) INSTALLATION CLIPS.
ADDITIONAL CUSTOM SIZES ARE AVAILABLE. CONTACT YOUR LOCAL SUPPLIER FOR MORE INFORMATION. DRAWINGS ARE NOT TO SCALE.
