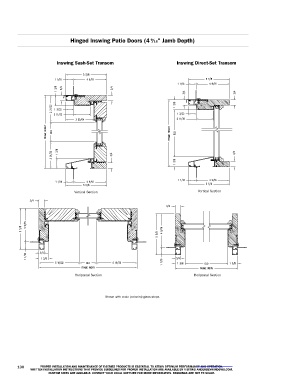

Hinged Inswing Patio Doors (4 / 16" Jamb Depth)
9
Inswing Sash-Set Transom Inswing Direct-Set Transom
Vertical Section Vertical Section
Horizontal Section Horizontal Section
Shown with ovolo (colonial) glass stops.
130 PROPER INSTALLATION AND MAINTENANCE OF E-SERIES PRODUCTS IS ESSENTIAL TO ATTAIN OPTIMUM PERFORMANCE AND OPERATION.
WRITTEN INSTALLATION INSTRUCTIONS THAT PROVIDE GUIDELINES FOR PROPER INSTALLATION ARE AVAILABLE BY VISITING ANDERSENWINDOWS.COM.
CUSTOM SIZES ARE AVAILABLE. CONTACT YOUR LOCAL SUPPLIER FOR MORE INFORMATION. DRAWINGS ARE NOT TO SCALE.
