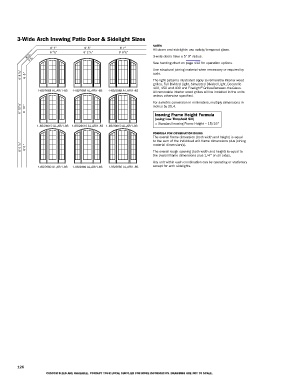

3-Wide Arch Inswing Patio Door & Sidelight Sizes
NOTES
6' 1" 6' 3" 6' 7" All doors and sidelights use safety/tempered glass.
6' 1 /2" 6' 2 1 /2" 6' 6 1 /2"
R.O. F.S. 3-wide doors have a 5' 0" radius.
See handing chart on page 132 for operation options.
Use structural joining material when necessary or required by
6' 8 1 /2" 6' 8 " code.
The light patterns illustrated apply to removable interior wood
grilles, Full Divided Light, Simulated Divided Light, Decorelle
100, 150 and 400 and Finelight Grilles-Between-the-Glass.
™
1-8S/2668 AL,AR/1-8S 1-8S/2868 AL,AR/1-8S 1-8S/3068 AL,AR/1-8S All removable interior wood grilles will be installed in the units
unless otherwise specified.
For a metric conversion in millimeters, multiply dimensions in
6' 10 1 /2" 6' 10 " inches by 25.4.
Inswing Frame Height Formula
(using Low Threshold Sill)
= Standard Inswing Frame Height – 15/16"
1-8S/26610 AL,AR/1-8S 1-8S/28610 AL,AR/1-8S 1-8S/30610 AL,AR/1-8S
FORMULA FOR COMBINATION DOORS
The overall frame dimension (both width and height) is equal
to the sum of the individual unit frame dimensions plus joining
8' 0 1 /2" 8' 0 " material dimension(s).
The overall rough opening (both width and height) is equal to
the overall frame dimensions plus 1/4" on all sides.
Any unit within each combination can be operating or stationary
1-8S/2680 AL,AR/1-8S 1-8S/2880 AL,AR/1-8S 1-8S/3080 AL,AR/1-8S except for arch sidelights.

126
CUSTOM SIZES ARE AVAILABLE. CONTACT YOUR LOCAL SUPPLIER FOR MORE INFORMATION. DRAWINGS ARE NOT TO SCALE.
