Page 120 - Andersen Architectural Collection E-Series 2017-18 Product Guide for Professionals

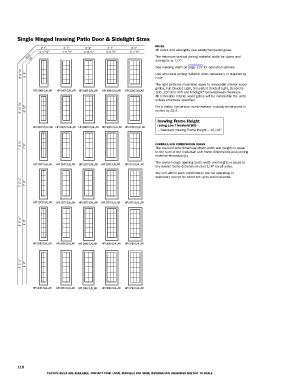

Single Hinged Inswing Patio Door & Sidelight Sizes

NOTES
2' 1" 2' 7" 2' 9" 3' 1" 3' 3"
2' 0 1 /2" 2' 6 1 /2" 2' 8 1 /2" 3' 0 1 /2" 3' 2 1 /2" All doors and sidelights use safety/tempered glass.
R.O. F .S. The minimum vertical joining material width for doors and
sidelights is 1/2".
See handing chart on page 132 for operation options.
6' 8 1 /2" 6' 8" Use structural joining material when necessary or required by
code.
The light patterns illustrated apply to removable interior wood
grilles, Full Divided Light, Simulated Divided Light, Decorelle
HPI 2068 S,AL,AR HPI 2668 S,AL,AR HPI 2868 S,AL,AR HPI 3068 S,AL,AR HPI 3268 S,AL,AR 100, 150 and 400 and Finelight Grille-Between-the-Glass.
™
All removable interior wood grilles will be installed in the units
unless otherwise specified.
6' 10 1 /2" 6' 10" For a metric conversion in millimeters, multiply dimensions in
inches by 25.4.
Inswing Frame Height
(using Low Threshold Sill)
HPI 20610 S,AL,AR HPI 26610 S,AL,AR HPI 28610 S,AL,AR HPI 30610 S,AL,AR HPI 32610 S,AL,AR
= Standard Inswing Frame Height – 15/16"
7' 0 1 /2" 7' 0" FORMULA FOR COMBINATION DOORS
The overall frame dimension (both width and height) is equal
to the sum of the individual unit frame dimensions plus joining
material dimension(s).
The overall rough opening (both width and height) is equal to
HPI 2070 S,AL,AR HPI 2670 S,AL,AR HPI 2870 S,AL,AR HPI 3070 S,AL,AR HPI 3270 S,AL,AR
the overall frame dimensions plus 1/4" on all sides.
Any unit within each combination can be operating or
stationary except for direct-set units and transoms.
7' 3 1 /2" 7' 3"

HPI 2073 S,AL,AR HPI 2673 S,AL,AR HPI 2873 S,AL,AR HPI 3073 S,AL,AR HPI 3273 S,AL,AR

8' 0 1 /2" 8' 0"

HPI 2080 S,AL,AR HPI 2680 S,AL,AR HPI 2880 S,AL,AR HPI 3080 S,AL,AR HPI 3280 S,AL,AR

8' 3 1 /2" 8' 3"

HPI 2083 S,AL,AR HPI 2683 S,AL,AR HPI 2883 S,AL,AR HPI 3083 S,AL,AR HPI 3283 S,AL,AR

118
CUSTOM SIZES ARE AVAILABLE. CONTACT YOUR LOCAL SUPPLIER FOR MORE INFORMATION. DRAWINGS ARE NOT TO SCALE.
