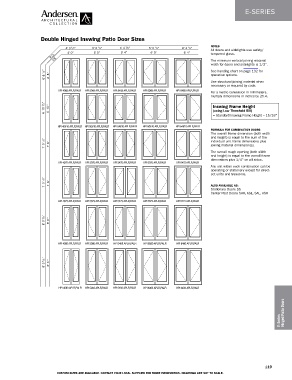

Double Hinged Inswing Patio Door Sizes

NOTES
1
1
4' 0 /2" 5' 0 /2" 5' 4 /2" 6' 0 /2" 6' 4 /2" All doors and sidelights use safety/
1
1
1
R.O. 4' 0" 5' 0" 5' 4" 6' 0" 6' 4" tempered glass.
F .S. The minimum vertical joining material
width for doors and sidelights is 1/2".
6' 8 1 /2" 6' 8 " See handing chart on page 132 for
operation options.
Use structural joining material when
necessary or required by code.
HPI 4068 APLR,PALR HPI 5068 APLR,PALR HPI 5468 APLR,PALR HPI 6068 APLR,PALR HPI 6468 APLR,PALR For a metric conversion in millimeters,
multiply dimensions in inches by 25.4.
6' 10 1 /2" 6' 10 " Inswing Frame Height
(using Low Threshold Sill)
= Standard Inswing Frame Height – 15/16"
HPI 40610 APLR,PALR HPI 50610 APLR,PALR HPI 54610 APLR,PALR HPI 60610 APLR,PALR HPI 64610 APLR,PALR
FORMULA FOR COMBINATION DOORS
The overall frame dimension (both width
and height) is equal to the sum of the
7' 0 1 /2" 7' 0 " individual unit frame dimensions plus
joining material dimension(s).
The overall rough opening (both width
and height) is equal to the overall frame
dimensions plus 1/4" on all sides.
HPI 4070 APLR,PALR HPI 5070 APLR,PALR HPI 5470 APLR,PALR HPI 6070 APLR,PALR HPI 6470 APLR,PALR
Any unit within each combination can be
operating or stationary except for direct-
set units and transoms.
7' 3 1 /2" 7' 3 " ALSO AVAILABLE AS:
Stationary Doors SS
Center Post Doors SAR, ASL, SAL, ASR
HPI 4073 APLR,PALR HPI 5073 APLR,PALR HPI 5473 APLR,PALR HPI 6073 APLR,PALR HPI 6473 APLR,PALR

8' 0 1 /2" 8' 0 "

HPI 4080 APLR,PALR HPI 5080 APLR,PALR HPI 5480 APLR,PALR HPI 6080 APLR,PALR HPI 6480 APLR,PALR

8' 3 1 /2" 8' 3 "

HPI 4083 APLR,PALR HPI 5083 APLR,PALR HPI 5483 APLR,PALR HPI 6083 APLR,PALR HPI 6483 APLR,PALR

Hinged Patio Doors

E-Series

119
CUSTOM SIZES ARE AVAILABLE. CONTACT YOUR LOCAL SUPPLIER FOR MORE INFORMATION. DRAWINGS ARE NOT TO SCALE.
