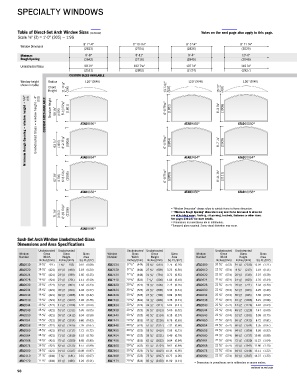

SPECIALTY WINDOWS

Notes on the next page also apply to this page.
Table of Direct-Set Arch Window Sizes (continued)
Scale ⁄8" (3) = 1'-0" (305) — 1:96
1
8'-7 1 ⁄4" 8'-10 7 ⁄16" 9'-3 1 ⁄4" 9'-11 1 ⁄4"
Window Dimension
(2623) (2704) (2826) (3029)
Minimum 8'-8" 8'-11" 9'-4" 10'-0"
Rough Opening (2642) (2718) (2845) (3048)
Unobstructed Glass 99 1 ⁄4" 102 7 ⁄16" 107 1 ⁄4" 115 1 ⁄4"
(2521) (2602) (2724) (2927)
CUSTOM SIZES AVAILABLE
Window height Radius 120" (3048) 120" (3048) 120" (3048)
shown in table
Chord 11 11 ⁄16" 13 21 ⁄32" 15 7 ⁄8"
Height 5'-10 15 ⁄16" (296) (1801) 6'-0 29 ⁄32" (347) (1852) 6'-3 1 ⁄8" (403) (1908)
Minimum Rough Opening = window height + 3 ⁄4" Unobstructed Glass = window height – 4" CUSTOM SIZES AVAILABLE 59 1 ⁄4" 63 1 ⁄4" (1505) (1607) 6'-2 15 ⁄16" (1903) ATAD8850* 6'-4 29 ⁄32" (1954) ATAD9450* 6'-7 1 ⁄8" (2009) ATAD10050*
(102)
(19)
Shoulder Height

67 1 ⁄4" (1708) 6'-6 15 ⁄16" (2005) ATAD8854* 6'-8 29 ⁄32" (2055) ATAD9454* 6'-11 1 ⁄8" (2111) ATAD10054*

ATAD8858* ATAD9458* ATAD10058*

71 1 ⁄4" (1810) 6'-10 15 ⁄16" (2106) • "Window Dimension" always refers to outside frame to frame dimension.
• "Minimum Rough Opening" dimensions may need to be increased to allow for
use of building wraps, flashing, sill panning, brackets, fasteners or other items.
See pages 236-237 for more details.
• Dimensions in parentheses are in millimeters.
*Tempered glass required. Some visual distortion may occur.
ATAD8860*
Sash-Set Arch Window Unobstructed Glass Sash-Set Arch Window Unobstructed Glass Sash-Set Arch Window Unobstructed Glass
Dimensions and Area Specifications Dimensions and Area Specifications Dimensions and Area Specifications
Unobstructed Unobstructed Unobstructed Unobstructed Unobstructed Unobstructed
Window Glass Glass Glass Window Glass Glass Glass Window Glass Glass Glass
Number Width Height Area Number Width Height Area Number Width Height Area
Inches/(mm) Inches/(mm) Sq. Ft./(m 2 ) Inches/(mm) Inches/(mm) Sq. Ft./(m 2 ) Inches/(mm) Inches/(mm) Sq. Ft./(m 2 )
ATA2010 16 5 / 8 " 421) 7 5 / 8 " 193) 0.81 (0.08) ATA2124 17 1 / 2 " (444) 23 1 / 8 " (587) 2.75 (0.26) ATA2480 20 5 / 8 " (523) 91 7 / 8 " (2333) 13.04 (1.21)
ATA2020 16 5 / 8 " (421) 19 5 / 8 " (498) 2.19 (0.20) ATA2128 17 1 / 2 " (444) 27 1 / 8 " (689) 3.23 (0.30) ATA2610 22 5 / 8 " (574) 8 3 / 8 " (213) 1.19 (0.11)
ATA2024 16 5 / 8 " (421) 23 5 / 8 " (599) 2.65 (0.25) ATA2130 17 1 / 2 " (444) 31 1 / 8 " (791) 3.72 (0.35) ATA2620 22 5 / 8 " (574) 20 3 / 8 " (518) 3.07 (0.29)
ATA2028 16 5 / 8 " (421) 27 5 / 8 " (701) 3.11 (0.29) ATA2410 20 5 / 8 " (523) 7 7 / 8 " (200) 1.03 (0.10) ATA2624 22 5 / 8 " (574) 24 3 / 8 " (620) 3.70 (0.34)
ATA2030 16 5 / 8 " (421) 31 5 / 8 " (803) 3.58 (0.33) ATA2420 20 5 / 8 " (523) 19 7 / 8 " (505) 2.74 (0.25) ATA2628 22 5 / 8 " (574) 28 3 / 8 " (721) 4.33 (0.40)
ATA2034 16 5 / 8 " (421) 35 5 / 8 " (904) 4.04 (0.37) ATA2424 20 5 / 8 " (523) 23 7 / 8 " (606) 3.32 (0.31) ATA2630 22 5 / 8 " (574) 32 3 / 8 " (823) 4.95 (0.46)
ATA2038 16 5 / 8 " (421) 39 5 / 8 " (1006) 4.50 (0.42) ATA2428 20 5 / 8 " (523) 27 7 / 8 " (708) 3.89 (0.36) ATA2634 22 5 / 8 " (574) 36 3 / 8 " (925) 5.58 (0.52)
ATA2040 16 5 / 8 " (421) 43 5 / 8 " (1107) 4.96 (0.46) ATA2430 20 5 / 8 " (523) 31 7 / 8 " (809) 4.46 (0.41) ATA2638 22 5 / 8 " (574) 40 3 / 8 " (1026) 6.21 (0.58)
ATA2044 16 5 / 8 " (421) 47 5 / 8 " (1209) 5.42 (0.50) ATA2434 20 5 / 8 " (523) 35 7 / 8 " (911) 5.03 (0.47) ATA2640 22 5 / 8 " (574) 44 3 / 8 " (1128) 6.84 (0.64)
ATA2048 16 5 / 8 " (421) 51 5 / 8 " (1311) 5.88 (0.55) ATA2438 20 5 / 8 " (523) 39 7 / 8 " (1013) 5.60 (0.52) ATA2644 22 5 / 8 " (574) 48 3 / 8 " (1229) 7.47 (0.69)
ATA2050 16 5 / 8 " (421) 55 5 / 8 " (1412) 6.34 (0.59) ATA2440 20 5 / 8 " (523) 43 7 / 8 " (1114) 6.18 (0.57) ATA2648 22 5 / 8 " (574) 52 3 / 8 " (1331) 8.09 (0.75)
ATA2054 16 5 / 8 " (421) 59 5 / 8 " (1514) 6.80 (0.63) ATA2444 20 5 / 8 " (523) 47 7 / 8 " (1216) 6.75 (0.63) ATA2650 22 5 / 8 " (574) 56 3 / 8 " (1433) 8.72 (0.81)
ATA2058 16 5 / 8 " (421) 63 5 / 8 " (1615) 7.26 (0.67) ATA2448 20 5 / 8 " (523) 51 7 / 8 " (1317) 7.32 (0.68) ATA2654 22 5 / 8 " (574) 60 3 / 8 " (1534) 9.35 (0.87)
ATA2060 16 5 / 8 " (421) 67 5 / 8 " (1717) 7.72 (0.72) ATA2450 20 5 / 8 " (523) 55 7 / 8 " (1419) 7.89 (0.73) ATA2658 22 5 / 8 " (574) 64 3 / 8 " (1636) 9.98 (0.93)
ATA2064 16 5 / 8 " (421) 71 5 / 8 " (1819) 8.18 (0.76) ATA2454 20 5 / 8 " (523) 59 7 / 8 " (1521) 8.46 (0.79) ATA2660 22 5 / 8 " (574) 68 3 / 8 " (1737) 10.60 (0.99)
ATA2068 16 5 / 8 " (421) 75 5 / 8 " (1920) 8.65 (0.80) ATA2458 20 5 / 8 " (523) 63 7 / 8 " (1622) 9.04 (0.84) ATA2664 22 5 / 8 " (574) 72 3 / 8 " (1839) 11.23 (1.04)
ATA2074 16 5 / 8 " (421) 83 5 / 8 " (2123) 9.57 (0.89) ATA2460 20 5 / 8 " (523) 67 7 / 8 " (1724) 9.61 (0.89) ATA2668 22 5 / 8 " (574) 76 3 / 8 " (1941) 11.86 (1.10)
ATA2080 16 5 / 8 " (421) 91 5 / 8 " (2327) 10.49 (0.97) ATA2464 20 5 / 8 " (523) 71 7 / 8 " (1825) 10.18 (0.95) ATA2674 22 5 / 8 " (574) 84 3 / 8 " (2144) 13.11 (1.22)
ATA2110 17 1 / 2 " (444) 7 1 / 8 " (181) 0.81 (0.07) ATA2468 20 5 / 8 " (523) 75 7 / 8 " (1927) 10.75 (1.00) ATA2680 22 5 / 8 " (574) 92 3 / 8 " (2347) 14.37 (1.33)
ATA2120 17 1 / 2 " (444) 19 1 / 8 " (486) 2.26 (0.21) ATA2474 20 5 / 8 " (523) 83 7 / 8 " (2130) 11.90 (1.11)
• Dimensions in parentheses are in millimeters or square meters.
continued on next page
