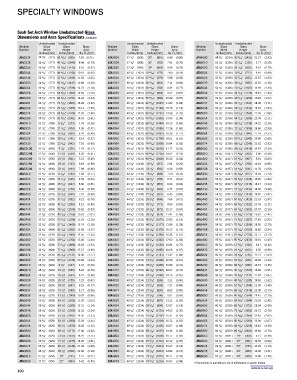

Page 102 - Andersen Architectural Collection A-Series 2018-19 Product Guide for Professionals

SPECIALTY WINDOWS

Sash-Set Arch Window Unobstructed Glass Sash-Set Arch Window Unobstructed Glass Sash-Set Arch Window Unobstructed Glass
Dimensions and Area Specifications (continued) Dimensions and Area Specifications Dimensions and Area Specifications
Unobstructed Unobstructed Unobstructed Unobstructed Unobstructed Unobstructed
Window Glass Glass Glass Window Glass Glass Glass Window Glass Glass Glass
Number Width Height Area Number Width Height Area Number Width Height Area
Inches/(mm) Inches/(mm) Sq. Ft./(m 2 ) Inches/(mm) Inches/(mm) Sq. Ft./(m 2 ) Inches/(mm) Inches/(mm) Sq. Ft./(m 2 )
ATA3234 30 5 / 8 " (777) 36 15 / 16 " (939) 7.63 (0.71) ATA3924 37 3 / 4 " (958) 26" (661) 6.46 (0.60) ATA4880 48 5 / 8 " (1234) 95 5 / 16 " (2421) 31.57 (2.93)
ATA3238 30 5 / 8 " (777) 40 15 / 16 " (1040) 8.48 (0.79) ATA3928 37 3 / 4 " (958) 30" (763) 7.51 (0.70) ATA5010 52 5 / 8 " (1336) 12 7 / 16 " (315) 3.77 (0.35)
ATA3240 30 5 / 8 " (777) 44 15 / 16 " (1142) 9.33 (0.87) ATA3930 37 3 / 4 " (958) 34" (864) 8.56 (0.79) ATA5020 52 5 / 8 " (1336) 24 7 / 16 " (620) 8.15 (0.76)
ATA3244 30 5 / 8 " (777) 48 15 / 16 " (1243) 10.18 (0.95) ATA4010 40 5 / 8 " (1031) 10 13 / 16 " (275) 2.60 (0.24) ATA5024 52 5 / 8 " (1336) 28 7 / 16 " (722) 9.61 (0.89)
ATA3248 30 5 / 8 " (777) 52 15 / 16 " (1345) 11.03 (1.02) ATA4020 40 5 / 8 " (1031) 22 13 / 16 " (579) 5.98 (0.56) ATA5028 52 5 / 8 " (1336) 32 7 / 16 " (823) 11.07 (1.03)
ATA3250 30 5 / 8 " (777) 56 15 / 16 " (1447) 11.88 (1.10) ATA4024 40 5 / 8 " (1031) 26 13 / 16 " (681) 7.11 (0.66) ATA5030 52 5 / 8 " (1336) 36 7 / 16 " (925) 12.53 (1.16)
ATA3254 30 5 / 8 " (777) 60 15 / 16 " (1548) 12.73 (1.18) ATA4028 40 5 / 8 " (1031) 30 13 / 16 " (783) 8.24 (0.77) ATA5034 52 5 / 8 " (1336) 40 7 / 16 " (1027) 13.99 (1.30)
ATA3258 30 5 / 8 " (777) 64 15 / 16 " (1650) 13.58 (1.26) ATA4030 40 5 / 8 " (1031) 34 13 / 16 " (884) 9.37 (0.87) ATA5038 52 5 / 8 " (1336) 44 7 / 16 " (1128) 15.45 (1.44)
ATA3260 30 5 / 8 " (777) 68 15 / 16 " (1751) 14.43 (1.34) ATA4034 40 5 / 8 " (1031) 38 13 / 16 " (986) 10.49 (0.97) ATA5040 52 5 / 8 " (1336) 48 7 / 16 " (1230) 16.92 (1.57)
ATA3264 30 5 / 8 " (777) 72 15 / 16 " (1853) 15.28 (1.42) ATA4038 40 5 / 8 " (1031) 42 13 / 16 " (1087) 11.62 (1.08) ATA5044 52 5 / 8 " (1336) 52 7 / 16 " (1331) 18.38 (1.71)
ATA3268 30 5 / 8 " (777) 76 15 / 16 " (1955) 16.13 (1.50) ATA4040 40 5 / 8 " (1031) 46 13 / 16 " (1189) 12.75 (1.18) ATA5048 52 5 / 8 " (1336) 56 7 / 16 " (1433) 19.84 (1.84)
ATA3274 30 5 / 8 " (777) 84 15 / 16 " (2158) 17.83 (1.66) ATA4044 40 5 / 8 " (1031) 50 13 / 16 " (1291) 13.88 (1.29) ATA5050 52 5 / 8 " (1336) 60 7 / 16 " (1535) 21.30 (1.98)
ATA3280 30 5 / 8 " (777) 92 15 / 16 " (2361) 19.53 (1.81) ATA4048 40 5 / 8 " (1031) 54 13 / 16 " (1392) 15.00 (1.39) ATA5054 52 5 / 8 " (1336) 64 7 / 16 " (1636) 22.76 (2.11)
ATA3310 31 1 / 2 " (799) 9 3 / 16 " (233) 1.76 (0.16) ATA4050 40 5 / 8 " (1031) 58 13 / 16 " (1494) 16.13 (1.50) ATA5058 52 5 / 8 " (1336) 68 7 / 16 " (1738) 24.22 (2.25)
ATA3320 31 1 / 2 " (799) 21 3 / 16 " (538) 4.39 (0.41) ATA4054 40 5 / 8 " (1031) 62 13 / 16 " (1595) 17.26 (1.60) ATA5060 52 5 / 8 " (1336) 72 7 / 16 " (1839) 25.68 (2.39)
ATA3324 31 1 / 2 " (799) 25 3 / 16 " (639) 5.26 (0.49) ATA4058 40 5 / 8 " (1031) 66 13 / 16 " (1697) 18.39 (1.71) ATA5064 52 5 / 8 " (1336) 76 7 / 16 " (1941) 27.14 (2.52)
ATA3328 31 1 / 2 " (799) 29 3 / 16 " (741) 6.14 (0.57) ATA4060 40 5 / 8 " (1031) 70 13 / 16 " (1799) 19.51 (1.81) ATA5068 52 5 / 8 " (1336) 80 7 / 16 " (2043) 28.60 (2.66)
ATA3330 31 1 / 2 " (799) 33 3 / 16 " (842) 7.01 (0.65) ATA4064 40 5 / 8 " (1031) 74 13 / 16 " (1900) 20.64 (1.92) ATA5074 52 5 / 8 " (1336) 88 7 / 16 " (2246) 31.52 (2.93)
ATA3310G 31 3 / 4 " (806) 9 1 / 4 " (235) 1.79 (0.17) ATA4068 40 5 / 8 " (1031) 78 13 / 16 " (2002) 21.77 (2.02) ATA5080 52 5 / 8 " (1336) 96 7 / 16 " (2449) 34.45 (3.20)
ATA3320G 31 3 / 4 " (806) 21 1 / 4 " (539) 4.43 (0.41) ATA4074 40 5 / 8 " (1031) 86 13 / 16 " (2205) 24.02 (2.23) ATA5410 56 5 / 8 " (1437) 11 15 / 16 " (303) 3.90 (0.36)
ATA3324G 31 3 / 4 " (806) 25 1 / 4 " (641) 5.31 (0.49) ATA4080 40 5 / 8 " (1031) 94 13 / 16 " (2408) 26.28 (2.44) ATA5420 56 5 / 8 " (1437) 23 15 / 16 " (607) 8.61 (0.80)
ATA3328G 31 3 / 4 " (806) 29 1 / 4 " (743) 6.19 (0.58) ATA4310 43 3 / 4 " (1110) 10 1 / 8 " (257) 2.64 (0.25) ATA5424 56 5 / 8 " (1437) 27 15 / 16 " (709) 10.18 (0.95)
ATA3330G 31 3 / 4 " (806) 33 1 / 4 " (844) 7.08 (0.66) ATA4320 43 3 / 4 " (1110) 22 1 / 8 " (562) 6.28 (0.58) ATA5428 56 5 / 8 " (1437) 31 15 / 16 " (811) 11.76 (1.09)
ATA3410 32 5 / 8 " (828) 9 7 / 16 " (240) 1.88 (0.17) ATA4324 43 3 / 4 " (1110) 26 1 / 8 " (664) 7.50 (0.70) ATA5430 56 5 / 8 " (1437) 35 15 / 16 " (912) 13.33 (1.24)
ATA3420 32 5 / 8 " (828) 21 7 / 16 " (545) 4.59 (0.43) ATA4328 43 3 / 4 " (1110) 30 1 / 8 " (765) 8.71 (0.81) ATA5434 56 5 / 8 " (1437) 39 15 / 16 " (1014) 14.90 (1.38)
ATA3424 32 5 / 8 " (828) 25 7 / 16 " (647) 5.50 (0.51) ATA4330 43 3 / 4 " (1110) 34 1 / 8 " (867) 9.93 (0.92) ATA5438 56 5 / 8 " (1437) 43 15 / 16 " (1115) 16.47 (1.53)
ATA3428 32 5 / 8 " (828) 29 7 / 16 " (748) 6.40 (0.59) ATA4410 44 5 / 8 " (1133) 10 5 / 16 " (263) 2.74 (0.25) ATA5440 56 5 / 8 " (1437) 47 15 / 16 " (1213) 18.05 (1.68)
ATA3430 32 5 / 8 " (828) 33 7 / 16 " (850) 7.31 (0.68) ATA4420 44 5 / 8 " (1133) 22 5 / 16 " (567) 6.45 (0.60) ATA5444 56 5 / 8 " (1437) 51 15 / 16 " (1319) 19.62 (1.82)
ATA3434 32 5 / 8 " (828) 37 7 / 16 " (952) 8.21 (0.76) ATA4424 44 5 / 8 " (1133) 26 5 / 16 " (669) 7.69 (0.71) ATA5448 56 5 / 8 " (1437) 55 15 / 16 " (1420) 21.19 (1.97)
ATA3438 32 5 / 8 " (828) 41 7 / 16 " (1053) 9.12 (0.85) ATA4428 44 5 / 8 " (1133) 30 5 / 16 " (771) 8.93 (0.83) ATA5450 56 5 / 8 " (1437) 59 15 / 16 " (1522) 22.76 (2.11)
ATA3440 32 5 / 8 " (828) 45 7 / 16 " (1155) 10.02 (0.93) ATA4430 44 5 / 8 " (1133) 34 5 / 16 " (872) 10.17 (0.94) ATA5454 56 5 / 8 " (1437) 63 15 / 16 " (1623) 24.33 (2.26)
ATA3444 32 5 / 8 " (828) 49 7 / 16 " (1256) 10.93 (1.02) ATA4434 44 5 / 8 " (1133) 38 5 / 16 " (974) 11.41 (1.06) ATA5458 56 5 / 8 " (1437) 67 15 / 16 " (1725) 25.91 (2.41)
ATA3448 32 5 / 8 " (828) 53 7 / 16 " (1358) 11.83 (1.10) ATA4438 44 5 / 8 " (1133) 42 5 / 16 " (1075) 12.65 (1.18) ATA5460 56 5 / 8 " (1437) 71 15 / 16 " (1827) 27.48 (2.55)
ATA3450 32 5 / 8 " (828) 57 7 / 16 " (1460) 12.74 (1.18) ATA4440 44 5 / 8 " (1133) 46 5 / 16 " (1177) 13.89 (1.29) ATA5464 56 5 / 8 " (1437) 75 15 / 16 " (1928) 29.05 (2.70)
ATA3454 32 5 / 8 " (828) 61 7 / 16 " (1561) 13.65 (1.27) ATA4444 44 5 / 8 " (1133) 50 5 / 16 " (1279) 15.13 (1.41) ATA5468 56 5 / 8 " (1437) 79 15 / 16 " (2030) 30.62 (2.84)
ATA3458 32 5 / 8 " (828) 65 7 / 16 " (1663) 14.55 (1.35) ATA4448 44 5 / 8 " (1133) 54 5 / 16 " (1380) 16.36 (1.52) ATA5474 56 5 / 8 " (1437) 87 15 / 16 " (2233) 33.77 (3.14)
ATA3460 32 5 / 8 " (828) 69 7 / 16 " (1764) 15.46 (1.44) ATA4450 44 5 / 8 " (1133) 58 5 / 16 " (1482) 17.60 (1.64) ATA5480 56 5 / 8 " (1437) 95 15 / 16 " (2436) 36.91 (3.43)
ATA3464 32 5 / 8 " (828) 73 7 / 16 " (1866) 16.36 (1.52) ATA4454 44 5 / 8 " (1133) 62 5 / 16 " (1583) 18.84 (1.75) ATA5810 60 5 / 8 " (1539) 12 15 / 16 " (328) 4.47 (0.42)
ATA3468 32 5 / 8 " (828) 77 7 / 16 " (1968) 17.27 (1.60) ATA4458 44 5 / 8 " (1133) 66 5 / 16 " (1685) 20.08 (1.87) ATA5820 60 5 / 8 " (1539) 24 15 / 16 " (633) 9.52 (0.88)
ATA3474 32 5 / 8 " (828) 85 7 / 16 " (2131) 19.08 (1.77) ATA4460 44 5 / 8 " (1133) 70 5 / 16 " (1787) 21.32 (1.98) ATA5824 60 5 / 8 " (1539) 28 15 / 16 " (735) 11.21 (1.04)
ATA3480 32 5 / 8 " (828) 93 7 / 16 " (2374) 20.89 (1.94) ATA4464 44 5 / 8 " (1133) 74 5 / 16 " (1888) 22.56 (2.10) ATA5828 60 5 / 8 " (1539) 32 15 / 16 " (836) 12.89 (1.20)
ATA3810 36 5 / 8 " (929) 9 3 / 4 " (247) 2.15 (0.20) ATA4468 44 5 / 8 " (1133) 78 5 / 16 " (1990) 23.80 (2.21) ATA5830 60 5 / 8 " (1539) 36 15 / 16 " (938) 14.57 (1.35)
ATA3820 36 5 / 8 " (929) 21 3 / 4 " (552) 5.20 (0.48) ATA4474 44 5 / 8 " (1133) 86 5 / 16 " (2193) 26.27 (2.44) ATA5834 60 5 / 8 " (1539) 40 15 / 16 " (1040) 16.26 (1.51)
ATA3824 36 5 / 8 " (929) 25 3 / 4 " (654) 6.22 (0.58) ATA4480 44 5 / 8 " (1133) 94 5 / 16 " (2396) 28.75 (2.67) ATA5838 60 5 / 8 " (1539) 44 15 / 16 " (1141) 17.94 (1.67)
ATA3828 36 5 / 8 " (929) 29 3 / 4 " (755) 7.23 (0.67) ATA4810 48 5 / 8 " (1234) 11 5 / 16 " (288) 3.22 (0.30) ATA5840 60 5 / 8 " (1539) 48 15 / 16 " (1243) 19.62 (1.82)
ATA3830 36 5 / 8 " (929) 33 3 / 4 " (857) 8.25 (0.77) ATA4820 48 5 / 8 " (1234) 23 5 / 16 " (593) 7.27 (0.68) ATA5844 60 5 / 8 " (1539) 52 15 / 16 " (1344) 21.30 (1.98)
ATA3834 36 5 / 8 " (929) 37 3 / 4 " (959) 9.27 (0.86) ATA4824 48 5 / 8 " (1234) 27 5 / 16 " (694) 8.62 (0.80) ATA5848 60 5 / 8 " (1539) 56 15 / 16 " (1446) 22.99 (2.14)
ATA3838 36 5 / 8 " (929) 41 3 / 4 " (1060) 10.28 (0.96) ATA4828 48 5 / 8 " (1234) 31 5 / 16 " (796) 9.97 (0.93) ATA5850 60 5 / 8 " (1539) 60 15 / 16 " (1548) 24.67 (2.29)
ATA3840 36 5 / 8 " (929) 45 3 / 4 " (1162) 11.30 (1.05) ATA4830 48 5 / 8 " (1234) 35 5 / 16 " (897) 11.32 (1.05) ATA5854 60 5 / 8 " (1539) 64 15 / 16 " (1649) 26.35 (2.45)
ATA3844 36 5 / 8 " (929) 49 3 / 4 " (1263) 12.31 (1.14) ATA4834 48 5 / 8 " (1234) 39 5 / 16 " (999) 12.67 (1.18) ATA5858 60 5 / 8 " (1539) 68 15 / 16 " (1751) 28.04 (2.60)
ATA3848 36 5 / 8 " (929) 53 3 / 4 " (1365) 13.33 (1.24) ATA4838 48 5 / 8 " (1234) 43 5 / 16 " (1101) 14.02 (1.30) ATA5860 60 5 / 8 " (1539) 72 15 / 16 " (1852) 29.72 (2.76)
ATA3850 36 5 / 8 " (929) 57 3 / 4 " (1467) 14.35 (1.33) ATA4840 48 5 / 8 " (1234) 47 5 / 16 " (1202) 15.37 (1.43) ATA5864 60 5 / 8 " (1539) 76 15 / 16 " (1954) 31.40 (2.92)
ATA3854 36 5 / 8 " (929) 61 3 / 4 " (1568) 15.36 (1.43) ATA4844 48 5 / 8 " (1234) 51 5 / 16 " (1304) 16.72 (1.55) ATA5868 60 5 / 8 " (1539) 80 15 / 16 " (2056) 33.09 (3.07)
ATA3858 36 5 / 8 " (929) 65 3 / 4 " (1670) 16.38 (1.52) ATA4848 48 5 / 8 " (1234) 55 5 / 16 " (1405) 18.07 (1.68) ATA5874 60 5 / 8 " (1539) 88 15 / 16 " (2259) 36.45 (3.39)
ATA3860 36 5 / 8 " (929) 69 3 / 4 " (1771) 17.40 (1.62) ATA4850 48 5 / 8 " (1234) 59 5 / 16 " (1507) 19.42 (1.80) ATA5880 60 5 / 8 " (1539) 96 15 / 16 " (2462) 39.82 (3.70)
ATA3864 36 5 / 8 " (929) 73 3 / 4 " (1873) 18.41 (1.71) ATA4854 48 5 / 8 " (1234) 63 5 / 16 " (1609) 20.77 (1.93) ATA6010 64 5 / 8 " (1641) 14" (356) 5.11 (0.48)
ATA3868 36 5 / 8 " (929) 77 3 / 4 " (1975) 19.43 (1.81) ATA4858 48 5 / 8 " (1234) 67 5 / 16 " (1710) 22.12 (2.05) ATA6020 64 5 / 8 " (1641) 26" (661) 10.50 (0.98)
ATA3874 36 5 / 8 " (929) 85 3 / 4 " (2138) 21.46 (1.99) ATA4860 48 5 / 8 " (1234) 71 5 / 16 " (1812) 23.47 (2.18) ATA6024 64 5 / 8 " (1641) 30" (763) 12.29 (1.14)
ATA3880 36 5 / 8 " (929) 93 3 / 4 " (2381) 23.50 (2.18) ATA4864 48 5 / 8 " (1234) 75 5 / 16 " (1913) 24.82 (2.31) ATA6028 64 5 / 8 " (1641) 34" (864) 14.09 (1.31)
ATA3910 37 3 / 4 " (958) 10" (255) 2.27 (0.21) ATA4868 48 5 / 8 " (1234) 79 5 / 16 " (2015) 26.17 (2.43) ATA6030 64 5 / 8 " (1641) 38" (966) 15.88 (1.48)
ATA3920 37 3 / 4 " (958) 22" (560) 5.41 (0.50) ATA4874 48 5 / 8 " (1234) 87 5 / 16 " (2218) 28.87 (2.68)
• Dimensions in parentheses are in millimeters or square meters.
continued on next page
