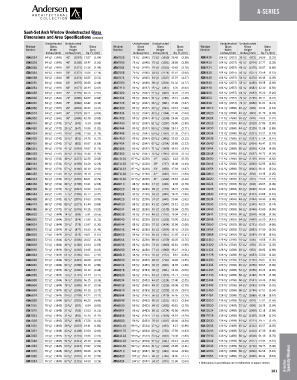

Sash-Set Arch Window Unobstructed Glass Sash-Set Arch Window Unobstructed Glass Sash-Set Arch Window Unobstructed Glass
Dimensions and Area Specifications (continued) Dimensions and Area Specifications Dimensions and Area Specifications
Unobstructed Unobstructed Unobstructed Unobstructed Unobstructed Unobstructed
Window Glass Glass Glass Window Glass Glass Glass Window Glass Glass Glass
Number Width Height Area Number Width Height Area Number Width Height Area
Inches/(mm) Inches/(mm) Sq. Ft./(m 2 ) Inches/(mm) Inches/(mm) Sq. Ft./(m 2 ) Inches/(mm) Inches/(mm) Sq. Ft./(m 2 )
ATA6034 64 5 / 8 " (1641) 42" (1067) 17.67 (1.64) ATA7058 76 5 / 8 " (1945) 71 5 / 8 " (1819) 36.43 (3.38) ATA9428 104 5 / 8 " (2657) 38 1 / 4 " (972) 24.86 (2.31)
ATA6038 64 5 / 8 " (1641) 46" (1169) 19.47 (1.81) ATA7060 76 5 / 8 " (1945) 75 5 / 8 " (1921) 38.56 (3.58) ATA9430 104 5 / 8 " (2657) 42 1 / 4 " (1074) 27.77 (2.58)
ATA6040 64 5 / 8 " (1641) 50" (1271) 21.26 (1.98) ATA7064 76 5 / 8 " (1945) 79 5 / 8 " (2023) 40.69 (3.78) ATA9434 104 5 / 8 " (2657) 46 1 / 4 " (1175) 30.67 (2.85)
ATA6044 64 5 / 8 " (1641) 54" (1372) 23.06 (2.14) ATA7068 76 5 / 8 " (1945) 83 5 / 8 " (2124) 42.81 (3.98) ATA9438 104 5 / 8 " (2657) 50 1 / 4 " (1277) 33.58 (3.12)
ATA6048 64 5 / 8 " (1641) 58" (1474) 24.85 (2.31) ATA7074 76 5 / 8 " (1945) 91 5 / 8 " (2327) 47.07 (4.37) ATA9440 104 5 / 8 " (2657) 54 1 / 4 " (1378) 36.49 (3.39)
ATA6050 64 5 / 8 " (1641) 62" (1575) 26.65 (2.48) ATA7080 76 5 / 8 " (1945) 99 5 / 8 " (2531) 51.32 (4.77) ATA9444 104 5 / 8 " (2657) 58 1 / 4 " (1480) 39.39 (3.66)
ATA6054 64 5 / 8 " (1641) 66" (1677) 28.44 (2.64) ATA7410 80 5 / 8 " (2047) 15 1 / 16 " (383) 6.76 (0.63) ATA9448 104 5 / 8 " (2657) 62 1 / 4 " (1582) 42.30 (3.93)
ATA6058 64 5 / 8 " (1641) 70" (1779) 30.23 (2.81) ATA7420 80 5 / 8 " (2047) 27 1 / 16 " (688) 13.47 (1.25) ATA9450 104 5 / 8 " (2657) 66 1 / 4 " (1683) 45.20 (4.20)
ATA6060 64 5 / 8 " (1641) 74" (1880) 32.03 (2.98) ATA7424 80 5 / 8 " (2047) 31 1 / 16 " (789) 15.71 (1.46) ATA9454 104 5 / 8 " (2657) 70 1 / 4 " (1785) 48.11 (4.47)
ATA6064 64 5 / 8 " (1641) 78" (1982) 33.82 (3.14) ATA7428 80 5 / 8 " (2047) 35 1 / 16 " (891) 17.95 (1.67) ATA9458 104 5 / 8 " (2657) 74 1 / 4 " (1886) 51.01 (4.74)
ATA6068 64 5 / 8 " (1641) 82" (2083) 35.62 (3.31) ATA7430 80 5 / 8 " (2047) 39 1 / 16 " (993) 20.19 (1.88) ATA10010 112 5 / 8 " (2860) 20 7 / 16 " (520) 12.32 (1.14)
ATA6074 64 5 / 8 " (1641) 90" (2287) 39.21 (3.64) ATA7434 80 5 / 8 " (2047) 43 1 / 16 " (1094) 22.43 (2.08) ATA10020 112 5 / 8 " (2860) 32 7 / 16 " (824) 21.70 (2.02)
ATA6080 64 5 / 8 " (1641) 98" (2490) 42.79 (3.98) ATA7438 80 5 / 8 " (2047) 47 1 / 16 " (1196) 24.66 (2.29) ATA10024 112 5 / 8 " (2860) 36 7 / 16 " (926) 24.83 (2.31)
ATA6410 68 5 / 8 " (1742) 13 1 / 2 " (343) 5.24 (0.49) ATA7440 80 5 / 8 " (2047) 51 1 / 16 " (1297) 26.90 (2.50) ATA10028 112 5 / 8 " (2860) 40 7 / 16 " (1028) 27.96 (2.60)
ATA6420 68 5 / 8 " (1742) 25 1 / 2 " (647) 10.95 (1.02) ATA7444 80 5 / 8 " (2047) 55 1 / 16 " (1399) 29.14 (2.71) ATA10030 112 5 / 8 " (2860) 44 7 / 16 " (1129) 31.08 (2.89)
ATA6424 68 5 / 8 " (1742) 29 1 / 2 " (749) 12.86 (1.19) ATA7448 80 5 / 8 " (2047) 59 1 / 16 " (1501) 31.38 (2.92) ATA10034 112 5 / 8 " (2860) 48 7 / 16 " (1231) 34.21 (3.18)
ATA6428 68 5 / 8 " (1742) 33 1 / 2 " (851) 14.76 (1.37) ATA7450 80 5 / 8 " (2047) 63 1 / 16 " (1602) 33.62 (3.12) ATA10038 112 5 / 8 " (2860) 52 7 / 16 " (1332) 37.34 (3.47)
ATA6430 68 5 / 8 " (1742) 37 1 / 2 " (952) 16.67 (1.55) ATA7454 80 5 / 8 " (2047) 67 1 / 16 " (1704) 35.86 (3.33) ATA10040 112 5 / 8 " (2860) 56 7 / 16 " (1434) 40.47 (3.76)
ATA6434 68 5 / 8 " (1742) 41 1 / 2 " (1054) 18.57 (1.73) ATA7458 80 5 / 8 " (2047) 71 1 / 16 " (1805) 38.10 (3.54) ATA10044 112 5 / 8 " (2860) 60 7 / 16 " (1536) 43.59 (4.05)
ATA6438 68 5 / 8 " (1742) 45 1 / 2 " (1155) 20.48 (1.90) ATA7460 80 5 / 8 " (2047) 75 1 / 16 " (1907) 40.34 (3.75) ATA10048 112 5 / 8 " (2860) 64 7 / 16 " (1637) 46.72 (4.34)
ATA6440 68 5 / 8 " (1742) 49 1 / 2 " (1257) 22.38 (2.08) ATA71110 87 13 / 16 " (2230) 17" (432) 8.18 (0.76) ATA10050 112 5 / 8 " (2860) 68 7 / 16 " (1739) 49.85 (4.63)
ATA6444 68 5 / 8 " (1742) 53 1 / 2 " (1359) 24.29 (2.26) ATA71120 87 13 / 16 " (2230) 29" (737) 15.49 (1.44) ATA10054 112 5 / 8 " (2860) 72 7 / 16 " (1840) 52.98 (4.92)
ATA6448 68 5 / 8 " (1742) 57 1 / 2 " (1460) 26.19 (2.43) ATA71124 87 13 / 16 " (2230) 33" (838) 17.93 (1.67) ATA10058 112 5 / 8 " (2860) 76 7 / 16 " (1942) 56.11 (5.21)
ATA6450 68 5 / 8 " (1742) 61 1 / 2 " (1562) 28.10 (2.61) ATA71128 87 13 / 16 " (2230) 37" (940) 20.37 (1.89) ATA10810 120 5 / 8 " (3063) 20 7 / 16 " (532) 13.45 (1.25)
ATA6454 68 5 / 8 " (1742) 65 1 / 2 " (1663) 30.01 (2.79) ATA71130 87 13 / 16 " (2230) 41" (1042) 22.81 (2.12) ATA10820 120 5 / 8 " (3063) 32 7 / 16 " (837) 23.50 (2.18)
ATA6458 68 5 / 8 " (1742) 69 1 / 2 " (1765) 31.91 (2.96) ATA8010 88 5 / 8 " (2250) 17 1 / 4 " (438) 8.35 (0.78) ATA10824 120 5 / 8 " (3063) 36 7 / 16 " (938) 26.85 (2.49)
ATA6460 68 5 / 8 " (1742) 73 1 / 2 " (1867) 33.82 (3.14) ATA8020 88 5 / 8 " (2250) 29 1 / 4 " (743) 15.74 (1.46) ATA10828 120 5 / 8 " (3063) 40 7 / 16 " (1040) 30.20 (2.81)
ATA6464 68 5 / 8 " (1742) 77 1 / 2 " (1968) 35.72 (3.32) ATA8024 88 5 / 8 " (2250) 33 1 / 4 " (844) 18.20 (1.69) ATA10830 120 5 / 8 " (3063) 44 7 / 16 " (1141) 33.55 (3.12)
ATA6468 68 5 / 8 " (1742) 81 1 / 2 " (2070) 37.63 (3.50) ATA8028 88 5 / 8 " (2250) 37 1 / 4 " (946) 20.66 (1.92) ATA10834 120 5 / 8 " (3063) 48 7 / 16 " (1243) 36.90 (3.43)
ATA6474 68 5 / 8 " (1742) 89 1 / 2 " (2273) 41.44 (3.85) ATA8030 88 5 / 8 " (2250) 41 1 / 4 " (1047) 23.12 (2.15) ATA10838 120 5 / 8 " (3063) 52 7 / 16 " (1345) 40.25 (3.74)
ATA6480 68 5 / 8 " (1742) 97 1 / 2 " (2476) 45.25 (4.20) ATA8034 88 5 / 8 " (2250) 45 1 / 4 " (1149) 25.58 (2.38) ATA10840 120 5 / 8 " (3063) 56 7 / 16 " (1446) 43.60 (4.05)
ATA6810 72 5 / 8 " (1844) 14 1 / 2 " (369) 5.91 (0.55) ATA8038 88 5 / 8 " (2250) 49 1 / 4 " (1251) 28.04 (2.61) ATA10844 120 5 / 8 " (3063) 60 7 / 16 " (1548) 46.95 (4.36)
ATA6820 72 5 / 8 " (1844) 26 1 / 2 " (674) 11.96 (1.11) ATA8040 88 5 / 8 " (2250) 53 1 / 4 " (1352) 30.50 (2.83) ATA10848 120 5 / 8 " (3063) 64 7 / 16 " (1649) 50.30 (4.67)
ATA6824 72 5 / 8 " (1844) 30 1 / 2 " (775) 13.97 (1.30) ATA8044 88 5 / 8 " (2250) 57 1 / 4 " (1454) 32.96 (3.06) ATA10850 120 5 / 8 " (3063) 68 7 / 16 " (1751) 53.65 (4.98)
ATA6828 72 5 / 8 " (1844) 34 1 / 2 " (877) 15.99 (1.49) ATA8048 88 5 / 8 " (2250) 61 1 / 4 " (1555) 35.42 (3.29) ATA10854 120 5 / 8 " (3063) 72 7 / 16 " (1853) 57.00 (5.30)
ATA6830 72 5 / 8 " (1844) 38 1 / 2 " (979) 18.01 (1.67) ATA8050 88 5 / 8 " (2250) 65 1 / 4 " (1657) 37.89 (3.52) ATA10858 120 5 / 8 " (3063) 76 7 / 16 " (1954) 60.35 (5.61)
ATA6834 72 5 / 8 " (1844) 42 1 / 2 " (1080) 20.02 (1.86) ATA8054 88 5 / 8 " (2250) 69 1 / 4 " (1759) 40.35 (3.75) ATA11410 128 5 / 8 " (3266) 20 7 / 16 " (545) 14.64 (1.36)
ATA6838 72 5 / 8 " (1844) 46 1 / 2 " (1182) 22.04 (2.05) ATA8058 88 5 / 8 " (2250) 73 1 / 4 " (1860) 43.81 (3.98) ATA11420 128 5 / 8 " (3266) 32 7 / 16 " (850) 25.36 (2.36)
ATA6840 72 5 / 8 " (1844) 50 1 / 2 " (1283) 24.05 (2.23) ATA8060 88 5 / 8 " (2250) 77 1 / 4 " (1962) 45.27 (4.21) ATA11424 128 5 / 8 " (3266) 36 7 / 16 " (952) 28.93 (2.69)
ATA6844 72 5 / 8 " (1844) 54 1 / 2 " (1385) 26.07 (2.42) ATA8810 96 5 / 8 " (2453) 16 1 / 4 " (413) 8.61 (0.80) ATA11428 128 5 / 8 " (3266) 40 7 / 16 " (1053) 32.50 (3.02)
ATA6848 72 5 / 8 " (1844) 58 1 / 2 " (1487) 28.09 (2.61) ATA8820 96 5 / 8 " (2453) 28 1 / 4 " (718) 16.66 (1.55) ATA11430 128 5 / 8 " (3266) 44 7 / 16 " (1155) 36.07 (3.35)
ATA6850 72 5 / 8 " (1844) 62 1 / 2 " (1588) 30.10 (2.80) ATA8824 96 5 / 8 " (2453) 32 1 / 4 " (820) 19.35 (1.80) ATA11434 128 5 / 8 " (3266) 48 7 / 16 " (1256) 39.65 (3.68)
ATA6854 72 5 / 8 " (1844) 66 1 / 2 " (1690) 32.12 (2.98) ATA8828 96 5 / 8 " (2453) 36 1 / 4 " (921) 22.03 (2.05) ATA11438 128 5 / 8 " (3266) 52 7 / 16 " (1358) 43.22 (4.02)
ATA6858 72 5 / 8 " (1844) 70 1 / 2 " (1791) 34.14 (3.17) ATA8830 96 5 / 8 " (2453) 40 1 / 4 " (1023) 24.71 (2.30) ATA11440 128 5 / 8 " (3266) 56 7 / 16 " (1460) 46.79 (4.35)
ATA6860 72 5 / 8 " (1844) 74 1 / 2 " (1893) 36.15 (3.36) ATA8834 96 5 / 8 " (2453) 44 1 / 4 " (1124) 27.40 (2.55) ATA11444 128 5 / 8 " (3266) 60 7 / 16 " (1561) 50.36 (4.68)
ATA6864 72 5 / 8 " (1844) 78 1 / 2 " (1995) 38.17 (3.55) ATA8838 96 5 / 8 " (2453) 48 1 / 4 " (1226) 30.08 (2.79) ATA11448 128 5 / 8 " (3266) 64 7 / 16 " (1663) 53.94 (5.01)
ATA6868 72 5 / 8 " (1844) 82 1 / 2 " (2096) 40.19 (3.73) ATA8840 96 5 / 8 " (2453) 52 1 / 4 " (1328) 32.76 (3.04) ATA11450 128 5 / 8 " (3266) 68 7 / 16 " (1764) 57.51 (5.34)
ATA6874 72 5 / 8 " (1844) 90 1 / 2 " (2299) 44.22 (4.11) ATA8844 96 5 / 8 " (2453) 56 1 / 4 " (1429) 35.45 (3.29) ATA11454 128 5 / 8 " (3266) 72 7 / 16 " (1866) 61.08 (5.67)
ATA6880 72 5 / 8 " (1844) 98 1 / 2 " (2503) 48.25 (4.48) ATA8848 96 5 / 8 " (2453) 60 1 / 4 " (1531) 38.13 (3.54) ATA12010 136 5 / 8 " (3469) 20 7 / 16 " (601) 17.01 (1.58)
ATA7010 76 5 / 8 " (1945) 15 5 / 8 " (397) 6.64 (0.62) ATA8850 96 5 / 8 " (2453) 64 1 / 4 " (1632) 40.81 (3.79) ATA12020 136 5 / 8 " (3469) 32 7 / 16 " (906) 28.39 (2.64)
ATA7020 76 5 / 8 " (1945) 27 5 / 8 " (702) 13.03 (1.21) ATA8854 96 5 / 8 " (2453) 68 1 / 4 " (1734) 43.50 (4.04) ATA12024 136 5 / 8 " (3469) 36 7 / 16 " (1008) 32.19 (2.99)
ATA7024 76 5 / 8 " (1945) 31 5 / 8 " (803) 15.15 (1.41) ATA8858 96 5 / 8 " (2453) 72 1 / 4 " (1836) 46.18 (4.29) ATA12028 136 5 / 8 " (3469) 40 7 / 16 " (1109) 35.98 (3.34)
ATA7028 76 5 / 8 " (1945) 35 5 / 8 " (905) 17.28 (1.61) ATA8860 96 5 / 8 " (2453) 76 1 / 4 " (1937) 48.86 (4.54) ATA12030 136 5 / 8 " (3469) 44 7 / 16 " (1211) 39.77 (3.70)
ATA7030 76 5 / 8 " (1945) 39 5 / 8 " (1007) 19.41 (1.80) ATA81110 99 13 / 16 " (2534) 17 1 / 16 " (433) 9.27 (0.86) ATA12034 136 5 / 8 " (3469) 48 7 / 16 " (1312) 43.57 (4.05)
ATA7034 76 5 / 8 " (1945) 43 5 / 8 " (1108) 21.54 (2.00) ATA81120 99 13 / 16 " (2534) 29 1 / 16 " (738) 17.59 (1.63) ATA12038 136 5 / 8 " (3469) 52 7 / 16 " (1414) 47.36 (4.40)
ATA7038 76 5 / 8 " (1945) 47 5 / 8 " (1210) 23.66 (2.20) ATA81124 99 13 / 16 " (2534) 33 1 / 16 " (839) 20.36 (1.89) ATA12040 136 5 / 8 " (3469) 56 7 / 16 " (1516) 51.16 (4.75)
ATA7040 76 5 / 8 " (1945) 51 5 / 8 " (1311) 25.79 (2.40) ATA81128 99 13 / 16 " (2534) 37 1 / 16 " (941) 23.13 (2.15) ATA12044 136 5 / 8 " (3469) 60 7 / 16 " (1617) 54.95 (5.10)
ATA7044 76 5 / 8 " (1945) 55 5 / 8 " (1413) 27.92 (2.59) ATA81130 99 13 / 16 " (2534) 41 1 / 16 " (1042) 25.90 (2.41) ATA12048 136 5 / 8 " (3469) 64 7 / 16 " (1719) 58.75 (5.46)
ATA7048 76 5 / 8 " (1945) 59 5 / 8 " (1515) 30.05 (2.79) ATA9410 104 5 / 8 " (2657) 18 1 / 4 " (464) 10.34 (0.96) ATA12050 136 5 / 8 " (3469) 68 7 / 16 " (1820) 62.54 (5.81)
ATA7050 76 5 / 8 " (1945) 63 5 / 8 " (1616) 32.18 (2.99) ATA9420 104 5 / 8 " (2657) 30 1 / 4 " (769) 19.05 (1.77) ATA12054 136 5 / 8 " (3469) 72 7 / 16 " (1922) 66.33 (6.16) Specialty Windows
ATA7054 76 5 / 8 " (1945) 67 5 / 8 " (1718) 34.30 (3.19) ATA9424 104 5 / 8 " (2657) 34 1 / 4 " (870) 21.96 (2.04)
• Dimensions in parentheses are in millimeters or square meters. A-Series
