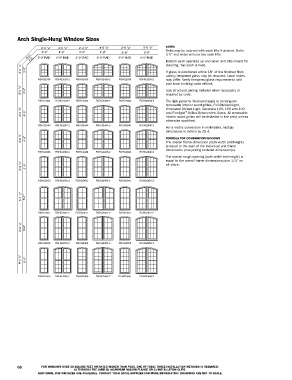

Arch Single-Hung Window Sizes

1
1
1
1
2'-0 /2" 4'-0 1 /2" 2'-4 /2" 4'-8 /2" 2'-6 /2" 5'-0 1 /2" NOTES
Units may be ordered with sash lifts if desired. Units
2'-0" 4'-0" 2'-4" 4'-8" 2'-6" 5'-0" 3'0" and wider will use two sash lifts.
R.O. F.S. 3'-0" RAD 6'-0" RAD 3'-0" RAD 6'-0" RAD 3'-0" RAD 6'-0" RAD Bottom sash operates up and down and tilts inward for
3'-0 1 /2" 3'-0" cleaning. Top sash is fixed.
If glass is positioned within 18" of the finished floor,
safety/tempered glass may be required. Local codes
RSHG2030 RSHG2030-2 RSHG2430 RSHG2430-2 RSHG2630 RSHG2630-2 may differ. Verify tempered glass requirements with
your local building code official.
3'-4 1 /2" 3'-4" Use structural joining material when necessary or
required by code.
RSHG2034 RSHG2034-2 RSHG2434 RSHG2434-2 RSHG2634 RSHG2634-2 The light patterns illustrated apply to rectangular
removable interior wood grilles, Full Divided Light,
4'-0 1 /2" 4'-0" Simulated Divided Light, Decorelle 100, 150 and 400
and Finelight Grilles-Between-the-Glass. All removable
™
interior wood grilles will be installed in the units unless
otherwise specified.
RSHG2040 RSHG2040-2 RSHG2440 RSHG2440-2 RSHG2640 RSHG2640-2
For a metric conversion in millimeters, multiply
dimensions in inches by 25.4.
4'-6 1 /2" 4'-6" FORMULA FOR COMBINATION WINDOWS
The overall frame dimension (both width and height)
is equal to the sum of the individual unit frame
dimensions plus joining material dimension(s).
RSHG2046 RSHG2046-2 RSHG2446 RSHG2446-2 RSHG2646 RSHG2646-2
The overall rough opening (both width and height) is
equal to the overall frame dimensions plus 1/4" on
5'-0 1 /2" 5'-0" all sides.
RSHG2050 RSHG2050-2 RSHG2450 RSHG2450-2 RSHG2650 RSHG2650-2

5'-1 1 /2" 5'-1"

RSHG2051 RSHG2051-2 RSHG2451 RSHG2451-2 RSHG2651 RSHG2651-2

5'-6 1 /2" 5'-6"

RSHG2056 RSHG2056-2 RSHG2456 RSHG2456-2 RSHG2656 RSHG2656-2

6'-0 1 /2" 6'-0"

RSHG2060 RSHG2060-2 RSHG2460 RSHG2460-2 RSHG2660 RSHG2660-2

68 FOR WINDOWS OVER 30 SQUARE FEET OR RATED HIGHER THAN PG50, ONE OF THESE THREE INSTALLATION METHODS IS REQUIRED:
A) THROUGH THE JAMB B) ALUMINUM NAILING FLANGE OR C) INSTALLATION CLIPS.
ADDITIONAL CUSTOM SIZES ARE AVAILABLE. CONTACT YOUR LOCAL SUPPLIER FOR MORE INFORMATION. DRAWINGS ARE NOT TO SCALE.
