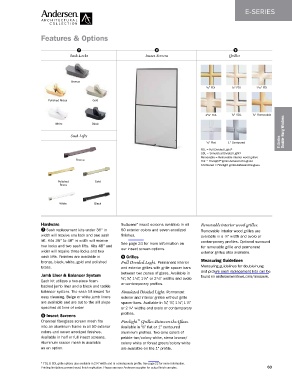

Page 65 - Andersen Architectural Collection E-Series 2017-18 Product Guide for Professionals

Features & Options

7 8 9
Sash Locks Insect Screens Grilles

Bronze
5 ⁄8" FDL 7 ⁄8" FDL 1 1 ⁄8" FDL

Polished Brass Gold

1 1 ⁄2" FDL 7 ⁄8" SDL 7 ⁄8" Removable

White Black
Sash Lifts Double-Hung Windows
5 ⁄8" Flat 1" Contoured E-Series
FDL = Full Divided Light*
SDL = Simulated Divided Light*
Removable = Removable interior wood grilles
Bronze Flat = Finelight ™ grilles-between-the-glass
Contoured = Finelight grilles-between-the-glass

Polished Gold
Brass

White Black

Hardware TruScene insect screens available in all I Removable interior wood grilles.I
®
7 Sash replacement kits under 36" in 50 exterior colors and seven anodized Removable interior wood grilles are
width will receive one lock and one sash finishes. available in a ⁄8" width and ovolo or
7
lift. Kits 36" to 48" in width will receive contemporary profiles. Optional surround
two locks and two sash lifts. Kits 48" and See page 24 for more information on for removable grille and permanent
wider will require three locks and two our insect screen options. exterior grilles also available.
sash lifts. Finishes are available in 9 Grilles
bronze, black, white, gold and polished Full Divided Light. Permanent interior Measuring Guidelines
brass. and exterior grilles with grille spacer bars Measuring guidelines for double-hung
between two panes of glass. Available in and picture sash replacement kits can be
Jamb Liner & Balancer System found on andersenwindows.com/measure.
5 ⁄8", ⁄8", 1 ⁄8", 1 ⁄2" or 2 ⁄4" widths and ovolo
1
1
7
1
Each kit utilizes a two-piece foam-
backed jamb liner and a block and tackle or contemporary profiles.
balancer system. The sash tilt inward for Simulated Divided Light. Permanent
easy cleaning. Beige or white jamb liners exterior and interior grilles without grille
are available and are cut to the sill slope spacer bars. Available in ⁄8", ⁄8", 1 ⁄8", 1 ⁄2"
5
7
1
1
specified at time of order. or 2 ⁄4" widths and ovolo or contemporary
1
profiles.
8 Insect Screens
Charcoal fiberglass screen mesh fits Finelight Grilles-Between-the-Glass.
™
into an aluminum frame in all 50 exterior Available in ⁄8" flat or 1" contoured
5
colors and seven anodized finishes. aluminum profiles. Two-tone colors of
Available in half or full insect screens. pebble tan/colony white, sierra bronze/
Aluminum screen mesh is available colony white or forest green/colony white
as an option. are available on the 1" profile.
* FDL & SDL grille options also available in 2 1 ⁄4" width and in contemporary profile. See page 22 for more information.
Printing limitations prevent exact finish replication. Please see your Andersen supplier for actual finish samples. 63
