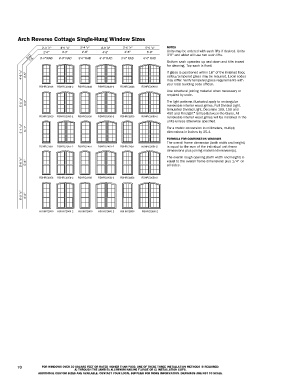

Page 72 - Andersen Architectural Collection E-Series 2017-18 Product Guide for Professionals

Arch Reverse Cottage Single-Hung Window Sizes

1
1
1
2'-0 /2" 4'-0 1 /2" 2'-4 /2" 4'-8 1 /2" 2'-6 /2" 5'-0 1 /2" NOTES
2'-0" 4'-0" 2'-4" 4'-8" 2'-6" 5'-0" Units may be ordered with sash lifts if desired. Units
R.O. F.S. 3'-0" RAD 6'-0" RAD 3'-0" RAD 6'-0" RAD 3'-0" RAD 6'-0" RAD 3'0" and wider will use two sash lifts.
Bottom sash operates up and down and tilts inward
for cleaning. Top sash is fixed.
4'-6 1 /2" 4'-6" If glass is positioned within 18" of the finished floor,
safety/tempered glass may be required. Local codes
may differ. Verify tempered glass requirements with
your local building code official.
RSHRC2046 RSHRC2046-2 RSHRC2446 RSHRC2446-2 RSHRC2646 RSHRC2646-2
Use structural joining material when necessary or
required by code.
5'-0 1 /2" 5'-0" The light patterns illustrated apply to rectangular
removable interior wood grilles, Full Divided Light,
Simulated Divided Light, Decorelle 100, 150 and
400 and Finelight Grilles-Between-the-Glass. All
™
RSHRC2050 RSHRC2050-2 RSHRC2450 RSHRC2450-2 RSHRC2650 RSHRC2650-2 removable interior wood grilles will be installed in the
units unless otherwise specified.
5'-1 1 /2" 5'-1" For a metric conversion in millimeters, multiply
dimensions in inches by 25.4.
FORMULA FOR COMBINATION WINDOWS
The overall frame dimension (both width and height)
RSHRC2051 RSHRC2051-2 RSHRC2451 RSHRC2451-2 RSHRC2651 RSHRC2651-2 is equal to the sum of the individual unit frame
dimensions plus joining material dimension(s).
The overall rough opening (both width and height) is
5'-6 1 /2" 5'-6" equal to the overall frame dimensions plus 1/4" on
all sides.

RSHRC2056 RSHRC2056-2 RSHRC2456 RSHRC2456-2 RSHRC2656 RSHRC2656-2

6'-0 1 /2" 6'-0"

RSHRC2060 RSHRC2060-2 RSHRC2460 RSHRC2460-2 RSHRC2660 RSHRC2660-2

70 FOR WINDOWS OVER 30 SQUARE FEET OR RATED HIGHER THAN PG50, ONE OF THESE THREE INSTALLATION METHODS IS REQUIRED:
A) THROUGH THE JAMB B) ALUMINUM NAILING FLANGE OR C) INSTALLATION CLIPS.
ADDITIONAL CUSTOM SIZES ARE AVAILABLE. CONTACT YOUR LOCAL SUPPLIER FOR MORE INFORMATION. DRAWINGS ARE NOT TO SCALE.
