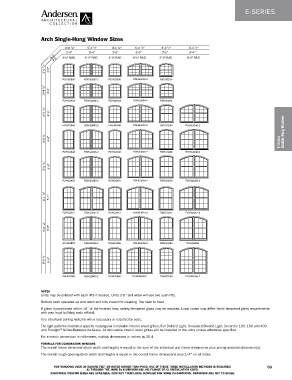

Page 71 - Andersen Architectural Collection E-Series 2017-18 Product Guide for Professionals

Arch Single-Hung Window Sizes

1
2'-8 /2" 5'-4 /2" 3'-0 /2" 6'-0 /2" 3'-2 1 /2" 6'-4 1 /2"
1
1
1
2'-8" 5'-4" 3'-0" 6'-0" 3'-2" 6'-4"
R.O. F.S. 3'-0" RAD 6'-0" RAD 3'-0" RAD 6'-0" RAD 3'-0" RAD 6'-0" RAD
3'-0 1 /2" 3'-0"
RSHG2830 RSHG2830-2 RSHG3030 RSHG3030-2 RSHG3230
3'-4 1 /2" 3'-4"

RSHG2834 RSHG2834-2 RSHG3034 RSHG3034-2 RSHG3234
4'-0 1 /2" 4'-0"

RSHG2840 RSHG2840-2 RSHG3040 RSHG3040-2 RSHG3240 RSHG3240-2
4'-6 1 /2" 4'-6" E-Series Double-Hung Windows

RSHG2846 RSHG2846-2 RSHG3046 RSHG3046-2 RSHG3246 RSHG3246-2

5'-0 1 /2" 5'-0"

RSHG2850 RSHG2850-2 RSHG3050 RSHG3050-2 RSHG3250 RSHG3250-2

5'-1 1 /2" 5'-1"

RSHG2851 RSHG2851-2 RSHG3051 RSHG3051-2 RSHG3251 RSHG3251-2

5'-6 1 /2" 5'-6"

RSHG2856 RSHG2856-2 RSHG3056 RSHG3056-2 RSHG3256 RSHG3256

6'-0 1 /2" 6'-0"

RSHG2860 RSHG2860-2 RSHG3060 RSHG3060-2 RSHG3260 RSHG3260-2

NOTES
Units may be ordered with sash lifts if desired. Units 3'0" and wider will use two sash lifts.
Bottom sash operates up and down and tilts inward for cleaning. Top sash is fixed.
If glass is positioned within 18" of the finished floor, safety/tempered glass may be required. Local codes may differ. Verify tempered glass requirements
with your local building code official.
Use structural joining material when necessary or required by code.
The light patterns illustrated apply to rectangular removable interior wood grilles, Full Divided Light, Simulated Divided Light, Decorelle 100, 150 and 400
™
and Finelight Grilles-Between-the-Glass. All removable interior wood grilles will be installed in the units unless otherwise specified.
For a metric conversion in millimeters, multiply dimensions in inches by 25.4.
FORMULA FOR COMBINATION WINDOWS
The overall frame dimension (both width and height) is equal to the sum of the individual unit frame dimensions plus joining material dimension(s).
The overall rough opening (both width and height) is equal to the overall frame dimensions plus 1/4" on all sides.

FOR WINDOWS OVER 30 SQUARE FEET OR RATED HIGHER THAN PG50, ONE OF THESE THREE INSTALLATION METHODS IS REQUIRED: 69
A) THROUGH THE JAMB B) ALUMINUM NAILING FLANGE OR C) INSTALLATION CLIPS.
ADDITIONAL CUSTOM SIZES ARE AVAILABLE. CONTACT YOUR LOCAL SUPPLIER FOR MORE INFORMATION. DRAWINGS ARE NOT TO SCALE.
