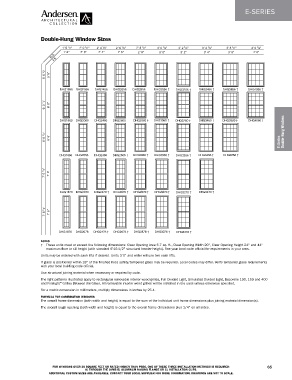

Page 67 - Andersen Architectural Collection E-Series 2017-18 Product Guide for Professionals

Double-Hung Window Sizes

1
1
1
1
1' 8 /2" 2' 0 /2" 2' 4 /2" 2' 6 /2" 2' 8 1 /2" 3' 0 /2" 3' 2 /2" 3' 4 /2" 3' 8 1 /2" 4' 0 /2"
1
1
1
1
1' 8" 2' 0" 2' 4" 2' 6" 2' 8" 3' 0" 3' 2" 3' 4" 3' 8" 4' 0"
R.O. F .S.
5' 6 1/ 2" 5' 6"
DHG1856 DHG2056 DHG2456 DHG2656 DHG2856 DHG3056 † DHG3256 † DHG3456 † DHG3856 † DHG4056 †
6' 0 1/ 2" 6' 0"

DHG1860 DHG2060 DHG2460 DHG2660 DHG2860 † DHG3060 † DHG3260 † DHG3460 † DHG3860 † DHG4060 †

6' 6 1/ 2" 6' 6" E-Series Double-Hung Windows

DHG1866 DHG2066 DHG2466 DHG2666 † DHG2866 † DHG3066 † DHG3266 † DHG3466 † DHG3866 †

7' 0 1/ 2" 7' 0"

DHG1870 DHG2070 DHG2470 † DHG2670 † DHG2870 † DHG3070 † DHG3270 † DHG3470 †

7' 6 1/ 2" 7' 6"

DHG1876 DHG2076 DHG2476 † DHG2676 † DHG2876 † DHG3076 † DHG3276 †

NOTES
† These units meet or exceed the following dimensions: Clear Opening Area 5.7 sq. ft., Clear Opening Width 20", Clear Opening Height 24" and 44"
maximum floor to sill height (with standard 6'10-1/2" structural header height). See your local code official for requirements in your area.
Units may be ordered with sash lifts if desired. Units 3'0" and wider will use two sash lifts.
If glass is positioned within 18" of the finished floor, safety/tempered glass may be required. Local codes may differ. Verify tempered glass requirements
with your local building code official.
Use structural joining material when necessary or required by code.
The light patterns illustrated apply to rectangular removable interior wood grilles, Full Divided Light, Simulated Divided Light, Decorelle 100, 150 and 400
and Finelight Grilles-Between-the-Glass. All removable interior wood grilles will be installed in the units unless otherwise specified.
™
For a metric conversion in millimeters, multiply dimensions in inches by 25.4.
FORMULA FOR COMBINATION WINDOWS
The overall frame dimension (both width and height) is equal to the sum of the individual unit frame dimensions plus joining material dimension(s).
The overall rough opening (both width and height) is equal to the overall frame dimensions plus 1/4" on all sides.

FOR WINDOWS OVER 30 SQUARE FEET OR RATED HIGHER THAN PG50, ONE OF THESE THREE INSTALLATION METHODS IS REQUIRED: 65
A) THROUGH THE JAMB B) ALUMINUM NAILING FLANGE OR C) INSTALLATION CLIPS.
ADDITIONAL CUSTOM SIZES ARE AVAILABLE. CONTACT YOUR LOCAL SUPPLIER FOR MORE INFORMATION. DRAWINGS ARE NOT TO SCALE.
