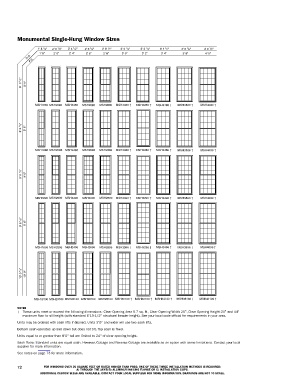

Monumental Single-Hung Window Sizes

1
1
1
1' 8 /2" 2' 0 /2" 2' 4 1 /2" 2' 6 /2" 2' 8 /2" 3' 0 /2" 3' 2 /2" 3' 4 /2" 3' 8 /2" 4' 0 /2"
1
1
1
1
1
1
1' 8" 2' 0" 2' 4" 2' 6" 2' 8" 3' 0" 3' 2" 3' 4" 3' 8" 4' 0"
R.O.
F.S.
8 ' 0 1 /2" 8' 0"
MSH1880 MSH2080 MSH2480 MSH2680 MSH2880 MSH3080 † MSH3280 † MSH3480 † MSH3880 † MSH4080 †

8' 6 1 /2" 8' 6"

MSH1886 MSH2086 MSH2486 MSH2686 MSH2886 MSH3086 † MSH3286 † MSH3486 † MSH3886 † MSH4086 †

9' 0 1 /2" 9' 0"

MSH1890 MSH2090 MSH2490 MSH2690 MSH2890 MSH3090 † MSH3290 † MSH3490 † MSH3890 † MSH4090 †

9' 6 1 /2" 9' 6"

MSH1896 MSH2096 MSH2496 MSH2696 MSH2896 MSH3096 † MSH3296 † MSH3496 † MSH3896 † MSH4096 †

10' 0 1 /2" 10' 0"

MSH18100 MSH20100 MSH24100 MSH26100 MSH28100 MSH30100 † MSH32100 † MSH34100 † MSH38100 † MSH40100 †
NOTES
† These units meet or exceed the following dimensions: Clear Opening Area 5.7 sq. ft., Clear Opening Width 20", Clear Opening Height 24" and 44"
maximum floor to sill height (with standard 6'10-1/2" structural header height). See your local code official for requirements in your area.
Units may be ordered with sash lifts if desired. Units 3'0" and wider will use two sash lifts.
Bottom sash operates up and down but does not tilt. Top sash is fixed.
Units equal to or greater than 8'0" tall are limited to 24" of clear opening height.
Sash Ratio: Standard units are equal sash. However, Cottage and Reverse Cottage are available as an option with some limitations. Contact your local
supplier for more information.
See notes on page 73 for more information.

72 FOR WINDOWS OVER 30 SQUARE FEET OR RATED HIGHER THAN PG50, ONE OF THESE THREE INSTALLATION METHODS IS REQUIRED:
A) THROUGH THE JAMB B) ALUMINUM NAILING FLANGE OR C) INSTALLATION CLIPS.
ADDITIONAL CUSTOM SIZES ARE AVAILABLE. CONTACT YOUR LOCAL SUPPLIER FOR MORE INFORMATION. DRAWINGS ARE NOT TO SCALE.
