Page 68 - Andersen Architectural Collection E-Series 2017-18 Product Guide for Professionals

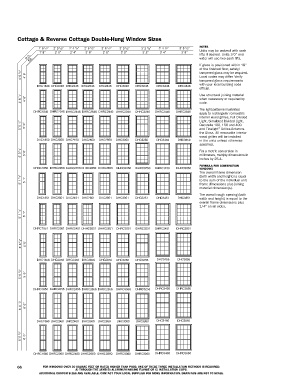

Cottage & Reverse Cottage Double-Hung Window Sizes

NOTES
1
1' 8 /2" 2' 0 1 /2" 2' 4 1 /2" 2' 6 /2" 2' 8 1 /2" 3' 0 1 /2" 3' 2 /2" 3' 4 /2" 3' 8 1 /2" Units may be ordered with sash
1
1
1
1' 8" 2' 0" 2' 4" 2' 6" 2' 8" 3' 0" 3' 2" 3' 4" 3' 8" lifts if desired. Units 3'0" and
R.O. F .S. wider will use two sash lifts.
If glass is positioned within 18"
of the finished floor, safety/
4' 6 1/ 2" 4' 6" tempered glass may be required.
Local codes may differ. Verify
tempered glass requirements
DHC1846 DHC2046 DHC2446 DHC2646 DHC2846 DHC3046 DHC3246 DHC3446 DHC3846 with your local building code
official.
4' 6 1/ 2" 4' 6" Use structural joining material
when necessary or required by
code.
The light patterns illustrated
DHRC1846 DHRC2046 DHRC2446 DHRC2646 DHRC2846 DHRC3046 DHRC3246 DHRC3446 DHRC3846
apply to rectangular removable
interior wood grilles, Full Divided
Light, Simulated Divided Light,
5' 0 1/ 2" 5' 0" Decorelle 100, 150 and 400
and Finelight Grilles-Between-
™
the-Glass. All removable interior
wood grilles will be installed
DHC1850 DHC2050 DHC2450 DHC2650 DHC2850 DHC3050 DHC3250 DHC3450 DHC3850 in the units unless otherwise
specified.
5' 0 1/ 2" 5' 0" For a metric conversion in
millimeters, multiply dimensions in
inches by 25.4.
FORMULA FOR COMBINATION
DHRC1850 DHRC2050 DHRC2450 DHRC2650 DHRC2850 DHRC3050 DHRC3250 DHRC3450 DHRC3850 WINDOWS
The overall frame dimension
5' 1 1/ 2" 5' 1" (both width and height) is equal
to the sum of the individual unit
frame dimensions plus joining
material dimension(s).
The overall rough opening (both
DHC1851 DHC2051 DHC2451 DHC2651 DHC2851 DHC3051 DHC3251 DHC3451 DHC3851 width and height) is equal to the
overall frame dimensions plus
1/4" on all sides.
5' 1 1/ 2" 5' 1"
DHRC1851 DHRC2051 DHRC2451 DHRC2651 DHRC2851 DHRC3051 DHRC3251 DHRC3451 DHRC3851

5' 6 1/ 2" 5' 6"

DHC1856 DHC2056 DHC2456 DHC2656 DHC2856 DHC3056 DHC3256 DHC3456 DHC3856

5' 6 1/ 2" 5' 6"

DHRC1856 DHRC2056 DHRC2456 DHRC2656 DHRC2856 DHRC3056 DHRC3256 DHRC3456 DHRC3856

6' 0 1/ 2" 6' 0"

DHC1860 DHC2060 DHC2460 DHC2660 DHC2860 DHC3060 DHC3260 DHC3460 DHC3860

6' 0 1/ 2" 6' 0"

DHRC1860 DHRC2060 DHRC2460 DHRC2660 DHRC2860 DHRC3060 DHRC3260 DHRC3460 DHRC3860

66 FOR WINDOWS OVER 30 SQUARE FEET OR RATED HIGHER THAN PG50, ONE OF THESE THREE INSTALLATION METHODS IS REQUIRED:
A) THROUGH THE JAMB B) ALUMINUM NAILING FLANGE OR C) INSTALLATION CLIPS.
ADDITIONAL CUSTOM SIZES ARE AVAILABLE. CONTACT YOUR LOCAL SUPPLIER FOR MORE INFORMATION. DRAWINGS ARE NOT TO SCALE.
