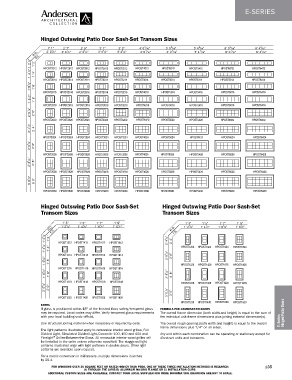

Page 137 - Andersen Architectural Collection E-Series 2017-18 Product Guide for Professionals

Hinged Outswing Patio Door Sash-Set Transom Sizes

9
9
9
9
9
2' 1" 2' 7" 2' 9" 3' 1" 3' 3" 4' 0 /16" 5' 0 /16" 5' 4 /16" 6' 0 /16" 6' 4 /16"
1
1
1
1
1
1
1
1
1
1
R.O. F .S. 2' 0 /2" 2' 6 /2" 2' 8 /2" 3' 0 /2" 3' 2 /2" 4' 0 /16" 5' 0 /16" 5' 4 /16" 6' 0 /16" 6' 4 /16"
1' 2 1 /2" 1' 2" HPOST2012 HPOST2612 HPOST2812 HPOST3012 HPOST3212 HPOST4012 HPOST5012 HPOST5412 HPOST6012 HPOST6412
1' 4 1 /2" 1' 4"
HPOST2014 HPOST2614 HPOST2814 HPOST3014 HPOST3214 HPOST4014 HPOST5014 HPOST5414 HPOST6014 HPOST6414
1' 6 1 /2" 1' 6"
HPOST2016 HPOST2616 HPOST2816 HPOST3016 HPOST3216 HPOST4016 HPOST5016 HPOST5416 HPOST6016 HPOST6416
1' 8 1 /2" 1' 8"
HPOST2018 HPOST2618 HPOST2818 HPOST3018 HPOST3218 HPOST4018 HPOST5018 HPOST5418 HPOST6018 HPOST6418
2' 0 1 /2" 2' 0"
HPOST2020 HPOST2620 HPOST2820 HPOST3020 HPOST3220 HPOST4020 HPOST5020 HPOST5420 HPOST6020 HPOST6420
2' 4 1 /2" 2' 4"
HPOST2024 HPOST2624 HPOST2824 HPOST3024 HPOST3224 HPOST4024 HPOST5024 HPOST5424 HPOST6024 HPOST6424
2' 6 1 /2" 2' 6"
HPOST2026 HPOST2626 HPOST2826 HPOST3026 HPOST3226 HPOST4026 HPOST5026 HPOST5426 HPOST6026 HPOST6426
2' 8 1 /2" 2' 8"
HPOST2028 HPOST2628 HPOST2828 HPOST3028 HPOST3228 HPOST4028 HPOST5028 HPOST5428 HPOST6028 HPOST6428
3' 0 1 /2" 3' 0"

HPOST2030 HPOST2630 HPOST2830 HPOST3030 HPOST3230 HPOST4030 HPOST5030 HPOST5430 HPOST6030 HPOST6430

Hinged Outswing Patio Door Sash-Set Hinged Outswing Patio Door Sash-Set
Transom Sizes Transom Sizes

1' 3" 1' 5" 1' 7" 1' 9" 1' 3" 1' 5" 1' 7" 1' 9"
1
1
1
1
1
1
1
1
R.O. F .S. 1' 2 /2" 1' 4 /2" 1' 6 /2" 1' 8 /2" R.O. F .S. 1' 2 /2" 1' 4 /2" 1' 6 /2" 1' 8 /2"
1' 2 1 /2" 1' 2" HPOST1212 HPOST1412 HPOST1612 HPOST1812 2' 4 1 /2" 2' 4"
1' 4 1 /2" 1' 4" HPOST1224 HPOST1424 HPOST1624 HPOST1824
HPOST1214 HPOST1414 HPOST1614 HPOST1814 2' 6 1 /2" 2' 6"
1' 6 1 /2" 1' 6" HPOST1226 HPOST1426 HPOST1626 HPOST1826
HPOST1216 HPOST1416 HPOST1616 HPOST1816
1' 8 1 /2" 1' 8" 2' 8 1 /2" 2' 8"
HPOST1218 HPOST1418 HPOST1618 HPOST1818 HPOST1228 HPOST1428 HPOST1628 HPOST1828
2' 0 1 /2" 2' 0"
HPOST1220 HPOST1420 HPOST1620 HPOST1820 3' 0 1 /2" 3' 0"
HPOST1230 HPOST1430 HPOST1630 HPOST1830
NOTES
If glass is positioned within 18" of the finished floor, safety/tempered glass FORMULA FOR COMBINATION DOORS
may be required. Local codes may differ. Verify tempered glass requirements The overall frame dimension (both width and height) is equal to the sum of Hinged Patio Doors
with your local building code official. the individual unit frame dimensions plus joining material dimension(s).
Use structural joining material when necessary or required by code. The overall rough opening (both width and height) is equal to the overall E-Series
frame dimensions plus 1/4" on all sides.
The light patterns illustrated apply to removable interior wood grilles, Full
Divided Light, Simulated Divided Light, Decorelle 100, 150 and 400 and Any unit within each combination can be operating or stationary except for
Finelight Grilles-Between-the-Glass. All removable interior wood grilles will direct-set units and transoms.
™
be installed in the units unless otherwise specified. The staggered light
patterns illustrated align with light patterns in double doors. Other light
patterns are available upon request.
For a metric conversion in millimeters, multiply dimensions in inches
by 25.4.
FOR WINDOWS OVER 30 SQUARE FEET OR RATED HIGHER THAN PG50, ONE OF THESE THREE INSTALLATION METHODS IS REQUIRED: 135
A) THROUGH THE JAMB B) ALUMINUM NAILING FLANGE OR C) INSTALLATION CLIPS.
ADDITIONAL CUSTOM SIZES ARE AVAILABLE. CONTACT YOUR LOCAL SUPPLIER FOR MORE INFORMATION. DRAWINGS ARE NOT TO SCALE.
