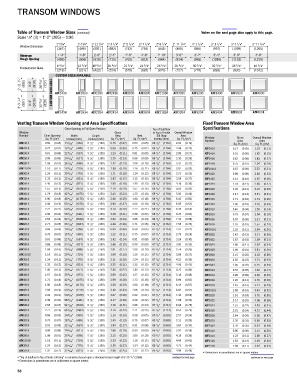

Page 60 - Andersen Architectural Collection A-Series 2018-19 Product Guide for Professionals

TRANSOM WINDOWS

Table of Transom Window Sizes (continued) Notes on the next page also apply to this page.
1
Scale ⁄8" (3) = 1'-0" (305) — 1:96
1'-3 1 / 4" 1'-7 1 / 4" 1'-11 1 /4" 2'-3 1 /4" 2'-5 1 /4" 2'-7 1 /4" 2'-9 1 /4" 2'-11 1 /4" 3'-1 1 /4" 3'-3 1 /4" 3'-7 1 /4" 3'-11 1 /4"
Window Dimension
(387) (489) (591) (692) (743) (794) (845) (895) (946) (997) (1099) (1200)
Minimum 1'-4" 1'-8" 2'-0" 2'-4" 2'-6" 2'-8" 2'-10" 3'-0" 3'-2" 3'-4" 3'-8" 4'-0"
Rough Opening (406) (508) (610) (711) (762) (813) (864) (914) (965) (1016) (1118) (1219)
8 5 /8" 12 5 /8" 16 5 /8" 20 5 /8" 22 5 /8" 24 5 /8" 26 5 /8" 28 5 /8" 30 5 /8" 32 5 /8" 36 5 /8" 40 5 /8"
Unobstructed Glass
(219) (321) (422) (524) (575) (625) (676) (727) (778) (829) (930) (1032)
CUSTOM SIZES AVAILABLE
2'-11 1 /4" (895) 3'-0" (914) 28 5 /8" (727) CUSTOM AVAILABLE ATF1430 ATF1830 ATF2030 ATF2430 ATF2630 ATF2830 ATF21030 ATF3030 ATF3230 ATF3430 ATF3830 ATF4030

3'-3 1 /4" (997) 3'-4" (1016) 32 5 /8" (829)

ATF1434 ATF1834 ATF2034 ATF2434 ATF2634 ATF2834 ATF21034 ATF3034 ATF3234 ATF3434 ATF3834 ATF4034

Venting Transom Window Opening and Area Specifications Fixed Transom Window Area
Clear Opening in Full Open Position Top of Subfloor Specifications
Window Glass to Top of Inside Overall Window
Number Clear Opening Width Depth Area Vent Sill Stop Area
Sq. Ft./(m 2 ) Inches/(mm) Inches/(mm) Sq. Ft./(m 2 ) Sq. Ft./(m 2 ) Inches/(mm) Sq. Ft./(m 2 ) Window Glass Overall Window
Area
Area
Number
ATV1814 0.59 (0.05) 14 5 / 16 " (363) 5 7 / 8 " (150) 0.75 (0.07) 0.59 (0.05) 69 1 / 2 " (1764) 2.04 (0.19) Sq. Ft./(m 2 ) Sq. Ft./(m 2 )
ATV2014 0.75 (0.07) 18 5 / 16 " (465) 5 7 / 8 " (150) 0.99 (0.09) 0.75 (0.07) 69 1 / 2 " (1764) 2.46 (0.23) ATF1410 0.27 (0.03) 1.19 (0.11)
ATV2414 0.91 (0.08) 22 5 / 16 " (567) 5 7 / 8 " (150) 1.23 (0.11) 0.91 (0.08) 69 1 / 2 " (1764) 2.89 (0.27) ATF1414 0.51 (0.05) 1.62 (0.15)
ATV2614 0.99 (0.09) 24 5 / 16 " (617) 5 7 / 8 " (150) 1.35 (0.13) 0.99 (0.09) 69 1 / 2 " (1764) 3.10 (0.29) ATF1416 0.63 (0.06) 1.83 (0.17)
ATV2814 1.08 (0.10) 26 5 / 16 " (668) 5 7 / 8 " (150) 1.47 (0.14) 1.08 (0.10) 69 1 / 2 " (1764) 3.31 (0.31) ATF1418 0.75 (0.07) 2.04 (0.19)
ATV21014 1.16 (0.11) 28 5 / 16 " (719) 5 7 / 8 " (150) 1.59 (0.15) 1.16 (0.11) 69 1 / 2 " (1764) 3.52 (0.33) ATF14110 0.87 (0.08) 2.25 (0.21)
ATV3014 1.24 (0.12) 30 5 / 16 " (770) 5 7 / 8 " (150) 1.71 (0.16) 1.24 (0.12) 69 1 / 2 " (1764) 3.73 (0.35) ATF1420 0.99 (0.09) 2.46 (0.23)
ATV3214 1.32 (0.12) 32 5 / 16 " (821) 5 7 / 8 " (150) 1.83 (0.17) 1.32 (0.12) 69 1 / 2 " (1764) 3.95 (0.37) ATF1422 1.11 (0.10) 2.67 (0.25)
ATV3414 1.40 (0.13) 34 5 / 16 " (871) 5 7 / 8 " (150) 1.95 (0.18) 1.40 (0.13) 69 1 / 2 " (1764) 4.16 (0.39) ATF1424 1.23 (0.11) 2.89 (0.27)
ATV3814 1.57 (0.15) 38 5 / 16 " (973) 5 7 / 8 " (150) 2.19 (0.20) 1.57 (0.15) 69 1 / 2 " (1764) 4.58 (0.43) ATF1426 1.35 (0.13) 3.10 (0.29)
ATV4014 1.73 (0.16) 42 5 / 16 " (1075) 5 7 / 8 " (150) 2.43 (0.23) 1.73 (0.16) 69 1 / 2 " (1764) 5.00 (0.46) ATF1428 1.47 (0.14) 3.31 (0.31)
ATV4414 1.90 (0.18) 46 5 / 16 " (1176) 5 7 / 8 " (150) 2.66 (0.25) 1.90 (0.18) 69 1 / 2 " (1764) 5.43 (0.50) ATF1430 1.71 (0.16) 3.73 (0.35)
ATV4814 2.06 (0.19) 50 5 / 16 " (1278) 5 7 / 8 " (150) 2.90 (0.27) 2.06 (0.19) 69 1 / 2 " (1764) 5.85 (0.54) ATF1434 1.95 (0.18) 4.16 (0.39)
ATV5014 2.22 (0.21) 54 5 / 16 " (1379) 5 7 / 8 " (150) 3.14 (0.29) 2.22 (0.21) 69 1 / 2 " (1764) 6.28 (0.58) ATF1810 0.40 (0.04) 1.50 (0.14)
ATV5414 2.39 (0.22) 58 5 / 16 " (1481) 5 7 / 8 " (150) 3.38 (0.31) 2.39 (0.22) 69 1 / 2 " (1764) 6.70 (0.62) ATF1814 0.75 (0.07) 2.04 (0.19)
ATV5814 2.55 (0.24) 62 5 / 16 " (1538) 5 7 / 8 " (150) 3.62 (0.34) 2.55 (0.24) 69 1 / 2 " (1764) 7.12 (0.66) ATF1816 0.93 (0.09) 2.31 (0.21)
ATV6014 2.71 (0.25) 66 5 / 16 " (1684) 5 7 / 8 " (150) 3.86 (0.36) 2.71 (0.25) 69 1 / 2 " (1764) 7.55 (0.70) ATF1818 1.10 (0.10) 2.57 (0.24)
ATV1816 0.59 (0.05) 14 5 / 16 " (363) 5 7 / 8 " (150) 0.93 (0.09) 0.59 (0.05) 67 1 / 2 " (1714) 2.31 (0.21) ATF18110 1.28 (0.12) 2.84 (0.26)
ATV2016 0.75 (0.07) 18 5 / 16 " (465) 5 7 / 8 " (150) 1.22 (0.11) 0.75 (0.07) 67 1 / 2 " (1714) 2.79 (0.26) ATF1820 1.45 (0.13) 3.11 (0.29)
ATV2416 0.91 (0.08) 22 5 / 16 " (567) 5 7 / 8 " (150) 1.52 (0.14) 0.91 (0.08) 67 1 / 2 " (1714) 3.26 (0.30) ATF1822 1.63 (0.15) 3.38 (0.31)
ATV2616 0.99 (0.09) 24 5 / 16 " (617) 5 7 / 8 " (150) 1.66 (0.15) 0.99 (0.09) 67 1 / 2 " (1714) 3.50 (0.33) ATF1824 1.80 (0.17) 3.64 (0.34)
ATV2816 1.08 (0.10) 26 5 / 16 " (668) 5 7 / 8 " (150) 1.81 (0.17) 1.08 (0.10) 67 1 / 2 " (1714) 3.74 (0.35) ATF1826 1.98 (0.18) 3.91 (0.36)
ATV21016 1.16 (0.11) 28 5 / 16 " (719) 5 7 / 8 " (150) 1.96 (0.18) 1.16 (0.11) 67 1 / 2 " (1714) 3.98 (0.37) ATF1828 2.15 (0.20) 4.18 (0.39)
ATV3016 1.24 (0.12) 30 5 / 16 " (770) 5 7 / 8 " (150) 2.11 (0.20) 1.24 (0.12) 67 1 / 2 " (1714) 4.22 (0.39) ATF1830 2.50 (0.23) 4.71 (0.44)
ATV3216 1.32 (0.12) 32 5 / 16 " (821) 5 7 / 8 " (150) 2.25 (0.21) 1.32 (0.12) 67 1 / 2 " (1714) 4.46 (0.41) ATF1834 2.85 (0.26) 5.25 (0.49)
ATV3416 1.40 (0.13) 34 5 / 16 " (871) 5 7 / 8 " (150) 2.40 (0.22) 1.40 (0.13) 67 1 / 2 " (1714) 4.70 (0.44) ATF2010 0.53 (0.05) 1.82 (0.17)
ATV3816 1.57 (0.15) 38 5 / 16 " (973) 5 7 / 8 " (150) 2.69 (0.25) 1.57 (0.15) 67 1 / 2 " (1714) 5.18 (0.48) ATF2014 0.99 (0.09) 2.46 (0.23)
ATV4016 1.73 (0.16) 42 5 / 16 " (1075) 5 7 / 8 " (150) 2.99 (0.28) 1.73 (0.16) 67 1 / 2 " (1714) 5.66 (0.53) ATF2016 1.22 (0.11) 2.79 (0.26)
ATV4416 1.90 (0.18) 46 5 / 16 " (1176) 5 7 / 8 " (150) 3.28 (0.30) 1.90 (0.18) 67 1 / 2 " (1714) 6.14 (0.57) ATF2018 1.45 (0.13) 3.11 (0.29)
ATV4816 2.06 (0.19) 50 5 / 16 " (1278) 5 7 / 8 " (150) 3.58 (0.33) 2.06 (0.19) 67 1 / 2 " (1714) 6.62 (0.61) ATF20110 1.68 (0.16) 3.43 (0.32)
ATV5016 2.22 (0.21) 54 5 / 16 " (1379) 5 7 / 8 " (150) 3.87 (0.36) 2.22 (0.21) 67 1 / 2 " (1714) 7.10 (0.66) ATF2020 1.91 (0.18) 3.75 (0.35)
ATV5416 2.39 (0.22) 58 5 / 16 " (1481) 5 7 / 8 " (150) 4.17 (0.39) 2.39 (0.22) 67 1 / 2 " (1714) 7.58 (0.70) ATF2022 2.14 (0.20) 4.08 (0.38)
ATV5816 2.55 (0.24) 62 5 / 16 " (1538) 5 7 / 8 " (150) 4.46 (0.41) 2.55 (0.24) 67 1 / 2 " (1714) 8.06 (0.75) ATF2024 2.37 (0.22) 4.40 (0.41)
ATV6016 2.71 (0.25) 66 5 / 16 " (1684) 5 7 / 8 " (150) 4.76 (0.44) 2.71 (0.25) 67 1 / 2 " (1714) 8.54 (0.79) ATF2026 2.61 (0.24) 4.72 (0.44)
ATV1818 0.59 (0.05) 14 5 / 16 " (363) 5 7 / 8 " (150) 1.10 (0.10) 0.59 (0.05) 65 1 / 2 " (1663) 2.57 (0.24) ATF2028 2.84 (0.26) 5.05 (0.47)
ATV2018 0.75 (0.07) 18 5 / 16 " (465) 5 7 / 8 " (150) 1.45 (0.13) 0.75 (0.07) 65 1 / 2 " (1663) 3.11 (0.29) ATF2030 3.30 (0.31) 5.69 (0.53)
ATV2418 0.91 (0.08) 22 5 / 16 " (567) 5 7 / 8 " (150) 1.80 (0.17) 0.91 (0.08) 65 1 / 2 " (1663) 3.64 (0.34) ATF2034 3.76 (0.35) 6.34 (0.59)
ATV2618 0.99 (0.09) 24 5 / 16 " (617) 5 7 / 8 " (150) 1.98 (0.18) 0.99 (0.09) 65 1 / 2 " (1663) 3.91 (0.36) ATF2410 0.66 (0.06) 2.13 (0.20)
ATV2818 1.08 (0.10) 26 5 / 16 " (668) 5 7 / 8 " (150) 2.15 (0.20) 1.08 (0.10) 65 1 / 2 " (1663) 4.18 (0.39) ATF2414 1.23 (0.11) 2.89 (0.27)
ATV21018 1.16 (0.11) 28 5 / 16 " (719) 5 7 / 8 " (150) 2.33 (0.22) 1.16 (0.11) 65 1 / 2 " (1663) 4.45 (0.41) ATF2416 1.52 (0.14) 3.26 (0.30)
ATV3018 1.24 (0.12) 30 5 / 16 " (770) 5 7 / 8 " (150) 2.50 (0.23) 1.24 (0.12) 65 1 / 2 " (1663) 4.71 (0.44) ATF2418 1.80 (0.17) 3.64 (0.34)
ATV3218 1.32 (0.12) 32 5 / 16 " (821) 5 7 / 8 " (150) 2.68 (0.25) 1.32 (0.12) 65 1 / 2 " (1663) 4.98 (0.46)
• Dimensions in parentheses are in square meters.
1
• "Top of Subfloor to Top of Inside Sill Stop" is calculated based upon a structural header height of 6'-10 / 2 " (2096). continued on next page continued on next page
• Dimensions in parentheses are in millimeters or square meters.
