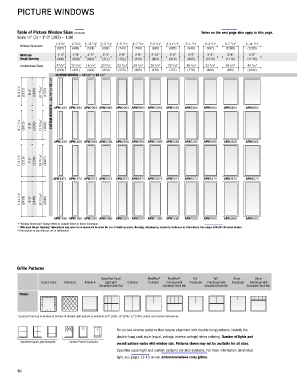

PICTURE WINDOWS
Table of Picture Window Sizes Notes on the next page also apply to this page.
(continued)
Scale ⁄8" (3) = 1'-0" (305) — 1:96
1
1'-3 1 / 4" 1'-7 1 / 4" 1'-11 1 /4" 2'-3 1 /4" 2'-5 1 /4" 2'-7 1 /4" 2'-9 1 /4" 2'-11 1 /4" 3'-1 1 /4" 3'-3 1 /4" 3'-7 1 /4" 3'-11 1 /4" 4'-3 1 /4" 4'-7 1 /4" 4'-11 1 /4" 5'-3 1 /4" 5'-7 1 /4" 5'-11 1 /4"
Window Dimension
(387) (489) (591) (692) (743) (794) (845) (895) (946) (997) (1099) (1200) (1302) (1403) (1505) (1607) (1708) (1810)
Minimum 1'-4" 1'-8" 2'-0" 2'-4" 2'-6" 2'-8" 2'-10" 3'-0" 3'-2" 3'-4" 3'-8" 4'-0" 4'-4" 4'-8" 5'-0" 5'-4" 5'-8" 6'-0"
Rough Opening (406) (508) (610) (711) (762) (813) (864) (914) (965) (1016) (1118) (1219) (1321) (1422) (1524) (1626) (1727) (1829)
Unobstructed Glass 8 5 /8" 12 5 /8" 16 5 /8" 20 5 /8" 22 5 /8" 24 5 /8" 26 5 /8" 28 5 /8" 30 5 /8" 32 5 /8" 36 5 /8" 40 5 /8" 44 5 /8" 48 5 /8" 52 5 /8" 56 5 /8" 60 5 /8" 64 5 /8"
(219) (321) (422) (524) (575) (625) (676) (727) (778) (829) (930) (1032) (1133) (1335) (1337) (1438) (1540) (1641)
CUSTOM WIDTHS — 15 1 ⁄4" to 95 1 ⁄4"
CUSTOM HEIGHTS — 21 1 ⁄4" to 95 1 ⁄4" APW1464 APW1864 APW2064 APW2464 APW2664 APW2864 APW21064 APW3064 APW3264 APW3464 APW3864 APW4064 APW4464 APW4864 APW5064 APW5464 APW5864 APW6064
6'-3 1 /4" (1911) 6'-4" (1930) 67 13 /16" (1722)
6'-7 1 /4" (2013) 6'-8" (2032) 71 13 /16" (1824)
APW1468 APW1868 APW2068 APW2468 APW2668 APW2868 APW21068 APW3068 APW3268 APW3468 APW3868 APW4068 APW4468 APW4868 APW5068 APW5468 APW5868 APW6068
7'-3 1 /4" (2216) 7'-4" (2235) 79 13 /16" (2027)
APW1474 APW1874 APW2074 APW2474 APW2674 APW2874 APW21074 APW3074 APW3274 APW3474 APW3874 APW4074 APW4474 APW4874 APW5074 APW5474 APW5874* APW6074*
7'-11 1 /4" (2419) 8'-0" (2438) 87 13 /16" (2230)
APW1480 APW1880 APW2080 APW2480 APW2680 APW2880 APW21080 APW3080 APW3280 APW3480 APW3880 APW4080 APW4480 APW4880 APW5080* APW5480* APW5880* APW6080*
• "Window Dimension" always refers to outside frame to frame dimension.
• "Minimum Rough Opening" dimensions may need to be increased to allow for use of building wraps, flashing, sill panning, brackets, fasteners or other items. See pages 236-237 for more details.
• Dimensions in parentheses are in millimeters.
Grille Patterns
Specified Equal Modified* Modified* Tall Tall Short Short
Queen Anne Diamond Prairie A Light with Colonial Colonial Colonial with Fractional Fractional with Fractional Fractional with
Simulated Check Rail Simulated Check Rail Simulated Check Rail Simulated Check Rail
*Location from top of window to bottom of divided light pattern is available at 8 " (203) , 10 " (254) , 12 " (305) , center and custom dimensions.
For picture window patterns that require alignment with double-hung patterns, identify the
double-hung sash style (equal, cottage, reverse cottage) when ordering. Number of lights and
Specified Equal Light Examples Custom Pattern Examples
overall pattern varies with window size. Patterns shown may not be available for all sizes.
Specified equal light and custom patterns are also available. For more information on divided
light, see pages 12-13 or visit andersenwindows.com/grilles.
