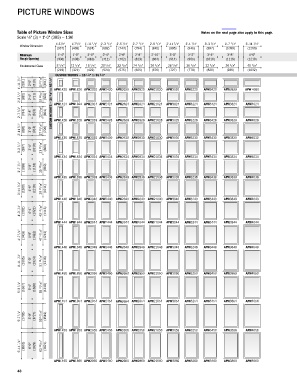

PICTURE WINDOWS

Table of Picture Window Sizes Notes on the next page also apply to this page.
Scale ⁄8" (3) = 1'-0" (305) — 1:96
1
1'-3 1 / 4" 1'-7 1 / 4" 1'-11 1 /4" 2'-3 1 /4" 2'-5 1 /4" 2'-7 1 /4" 2'-9 1 /4" 2'-11 1 /4" 3'-1 1 /4" 3'-3 1 /4" 3'-7 1 /4" 3'-11 1 /4"
Window Dimension
(387) (489) (591) (692) (743) (794) (845) (895) (946) (997) (1099) (1200)
Minimum 1'-4" 1'-8" 2'-0" 2'-4" 2'-6" 2'-8" 2'-10" 3'-0" 3'-2" 3'-4" 3'-8" 4'-0"
Rough Opening (406) (508) (610) (711) (762) (813) (864) (914) (965) (1016) (1118) (1219)
Unobstructed Glass 8 5 /8" 12 5 /8" 16 5 /8" 20 5 /8" 22 5 /8" 24 5 /8" 26 5 /8" 28 5 /8" 30 5 /8" 32 5 /8" 36 5 /8" 40 5 /8"
(219) (321) (422) (524) (575) (625) (676) (727) (778) (829) (930) (1032)
CUSTOM WIDTHS — 15 1 ⁄4" to 95 1 ⁄4"
1'-11 1 /4" (591) 2'-0" (610) 15 13 /16" (401) APW1420 APW1820 APW2020 APW2420 APW2620 APW2820 APW21020 APW3020 APW3220 APW3420 APW3820 APW 4020

2'-3 1 /4" (692) 2'-4" (711) 19 13 /16" (503) CUSTOM HEIGHTS — 21 1 ⁄4" to 95 1 ⁄4" APW1424 APW1824 APW2024 APW2424 APW2624 APW2824 APW21024 APW3024 APW3224 APW3424 APW3824 APW4024

2'-7 1 /4" (794) 2'-8" (813) 23 13 /16" (604) APW1428 APW1828 APW2028 APW2428 APW2628 APW2828 APW21028 APW3028 APW3228 APW3428 APW3828 APW4028

2'-11 1 /4" (895) 3'-0" (914) 27 13 /16" (706)

APW1430 APW1830 APW2030 APW2430 APW2630 APW2830 APW21030 APW3030 APW3230 APW3430 APW3830 APW4030
3'-3 1 /4" (997) 3'-4" (1016) 31 13 /16" (808)

APW1434 APW1834 APW2034 APW2434 APW2634 APW2834 APW21034 APW3034 APW3234 APW3434 APW3834 APW4034
3'-7 1 /4" (1099) 3'-8" (1118) 35 13 /16" (910)

APW1438 APW1838 APW2038 APW2438 APW2638 APW2838 APW21038 APW3038 APW3238 APW3438 APW3838 APW4038
3'-11 1 /4" (1200) 4'-0" (1219) 39 13 /16" (1011)

APW1440 APW1840 APW2040 APW2440 APW2640 APW2840 APW21040 APW3040 APW3240 APW3440 APW3840 APW4040
4'-3 1 /4" (1302) 4'-4" (1321) 43 13 /16" (1113)

APW1444 APW1844 APW2044 APW2444 APW2644 APW2844 APW21044 APW3044 APW3244 APW3444 APW3844 APW4044
4'-7 1 /4" (1403) 4'-8" (1422) 47 13 /16" (1214)

APW1448 APW1848 APW2048 APW2448 APW2648 APW2848 APW21048 APW3048 APW3248 APW3448 APW3848 APW4048

4'-11 1 /4" (1505) 5'-0" (1524) 51 13 /16" (1316)

APW1450 APW1850 APW2050 APW2450 APW2650 APW2850 APW21050 APW3050 APW3250 APW3450 APW3850 APW4050
5'-3 1 /4" (1607) 5'-4" (1626) 55 13 /16" (1418)

APW1454 APW1854 APW2054 APW2454 APW2654 APW2854 APW21054 APW3054 APW3254 APW3454 APW3854 APW4054

5'-7 1 /4" (1708) 5'-8" (1727) 59 13 /16" (1519)

APW1458 APW1858 APW2058 APW2458 APW2658 APW2858 APW21058 APW3058 APW3258 APW3458 APW3858 APW4058

5'-11 1 /4" (1810) 6'-0" (1829) 63 13 /16" (1621)

APW1460 APW1860 APW2060 APW2460 APW2660 APW2860 APW21060 APW3060 APW3260 APW3460 APW3860 APW4060

48
