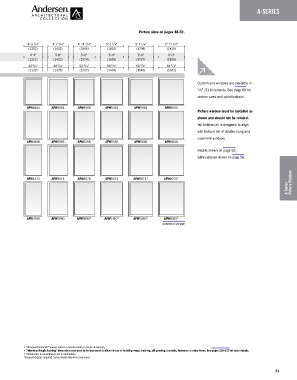

A-SERIES

Picture sizes on pages 48-52.

4'-3 1 /4" 4'-7 1 /4" 4'-11 1 /4" 5'-3 1 /4" 5'-7 1 /4" 5'-11 1 /4"
(1302) (1403) (1505) (1607) (1708) (1810)
4'-4" 4'-8" 5'-0" 5'-4" 5'-8" 6'-0"
(1321) (1422) (1524) (1626) (1727) (1829)
44 5 /8" 48 5 /8" 52 5 /8" 56 5 /8" 60 5 /8" 64 5 /8"
(1133) (1335) (1337) (1438) (1540) (1641)

Custom-size windows are available in
1 ⁄ 8" (3) increments. See page 69 for
custom sizes and specifications.

APW4464 APW4864 APW5064 APW5464 APW5864 APW6064
Picture window must be installed as
shown and should not be rotated.
Tall bottom rail is designed to align
with bottom rail of double-hung and
casement windows.
APW4468 APW4868 APW5068 APW5468 APW5868 APW6068
Details shown on page 55.
Grille patterns shown on page 50.

APW4474 APW4874 APW5074 APW5474 APW5874* APW6074* Picture Windows
A-Series

APW4480 APW4880 APW5080* APW5480* APW5880* APW6080*
continued on next page

• "Window Dimension" always refers to outside frame to frame dimension.
• "Minimum Rough Opening" dimensions may need to be increased to allow for use of building wraps, flashing, sill panning, brackets, fasteners or other items. See pages 236-237 for more details.
• Dimensions in parentheses are in millimeters.
*Tempered glass required. Some visual distortion may occur.

51
