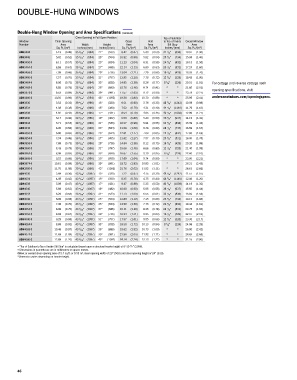

DOUBLE-HUNG WINDOWS

Double-Hung Window Opening and Area Specifications (continued)
Clear Opening in Full Open Position Top of Subfloor
Window Clear Opening Glass Vent to Top of Inside Overall Window
Number Area Width Height Area Area Sill Stop Area
Sq. Ft./(m 2 ) Inches/(mm) Inches/(mm) Sq. Ft./(m 2 ) Sq. Ft./(m 2 ) Inches/(mm) Sq. Ft./(m 2 )
ADH3444 5.13 (0.48) 35 3 / 16 " (894) 21" (533) 9.42 (0.87) 5.33 (0.50) 32 7 / 8 " (836) 13.97 (1.30)
ADH3448 5.62 (0.52) 35 3 / 16 " (894) 23" (584) 10.32 (0.96) 5.82 (0.54) 28 7 / 8 " (734) 15.06 (1.40)
ADH3450 ◊ 6.11 (0.57) 35 3 / 16 " (894) 25" (634) 11.23 (1.04) 6.31 (0.59) 24 7 / 8 " (632) 16.15 (1.50)
ADH3454 ◊ 6.59 (0.61) 35 3 / 16 " (894) 27" (685) 12.14 (1.13) 6.80 (0.63) 20 7 / 8 " (531) 17.24 (1.60)
ADH3458 ◊ 7.08 (0.66) 35 3 / 16 " (894) 29" (736) 13.04 (1.21) 7.29 (0.68) 16 7 / 8 " (429) 18.33 (1.70)
ADH3460 ◊ 7.57 (0.70) 35 3 / 16 " (894) 31" (787) 13.95 (1.30) 7.78 (0.72) 12 7 / 8 " (328) 19.42 (1.80)
ADH3464 ◊ 8.06 (0.75) 35 3 / 16 " (894) 33" (838) 14.85 (1.38) 8.26 (0.77) 8 7 / 8 " (226) 20.51 (1.91) For cottage and reverse cottage sash
ADH3468 ◊ 8.55 (0.79) 35 3 / 16 " (894) 35" (889) 15.76 (1.46) 8.74 (0.81) * * 21.60 (2.01)
opening specifications, visit
ADH3474 ◊ 9.53 (0.89) 35 3 / 16 " (894) 39" (991) 17.57 (1.63) 9.72 (0.90) * * 23.78 (2.21)
ADH3480 ◊ 10.50 (0.98) 35 3 / 16 " (894) 43" (1092) 19.38 (1.80) 10.70 (0.99) * * 25.96 (2.41) andersenwindows.com/openingspecs.
ADH3830 3.53 (0.33) 39 3 / 16 " (996) 13" (330) 6.51 (0.60) 3.76 (0.35) 48 7 / 8 " (1242) 10.59 (0.98)
ADH3834 4.08 (0.38) 39 3 / 16 " (996) 15" (380) 7.52 (0.70) 4.31 (0.40) 44 7 / 8 " (1140) 11.79 (1.10)
ADH3838 4.62 (0.43) 39 3 / 16 " (996) 17" (431) 8.54 (0.79) 4.85 (0.45) 40 7 / 8 " (1039) 12.99 (1.21)
ADH3840 5.17 (0.48) 39 3 / 16 " (996) 19" (482) 9.56 (0.89) 5.40 (0.50) 36 7 / 8 " (937) 14.19 (1.32)
ADH3844 5.71 (0.53) 39 3 / 16 " (996) 21" (533) 10.57 (0.98) 5.94 (0.55) 32 7 / 8 " (836) 15.39 (1.43)
ADH3848 6.25 (0.58) 39 3 / 16 " (996) 23" (584) 11.59 (1.08) 6.48 (0.60) 28 7 / 8 " (734) 16.59 (1.54)
ADH3850 ◊ 6.80 (0.63) 39 3 / 16" (996) 25" (634) 12.61 (1.17) 7.03 (0.65) 24 7 / 8" (632) 17.80 (1.65)
ADH3854 ◊ 7.34 (0.68) 39 3 / 16 " (996) 27" (685) 13.62 (1.27) 7.57 (0.70) 20 7 / 8 " (531) 19.00 (1.76)
ADH3858 ◊ 7.89 (0.73) 39 3 / 16 " (996) 29" (736) 14.64 (1.36) 8.12 (0.75) 16 7 / 8 " (429) 20.20 (1.88)
ADH3860 ◊ 8.43 (0.78) 39 3 / 16 " (996) 31" (787) 15.66 (1.45) 8.66 (0.80) 12 7 / 8 " (328) 21.40 (1.99)
ADH3864 ◊ 8.98 (0.83) 39 3 / 16 " (996) 33" (838) 16.67 (1.55) 9.19 (0.85) 8 7 / 8 " (226) 22.60 (2.10)
ADH3868 ◊ 9.52 (0.88) 39 3 / 16 " (996) 35" (889) 17.69 (1.64) 9.74 (0.90) * * 23.80 (2.21)
ADH3874 ◊ 10.61 (0.99) 39 3 / 16 " (996) 39" (991) 19.72 (1.83) 10.83 (1.01) * * 26.21 (2.43)
ADH3880 ◊ 11.70 (1.09) 39 3 / 16 " (996) 43" (1092) 21.76 (2.02) 11.92 (1.11) * * 28.61 (2.66)
ADH4030 3.89 (0.36) 43 3 / 16 " (1097) 13" (330) 7.22 (0.67) 4.15 (0.39) 48 7 / 8 " (1242) 11.57 (1.07)
ADH4034 4.49 (0.42) 43 3 / 16 " (1097) 15" (380) 8.35 (0.78) 4.75 (0.44) 44 7 / 8 " (1140) 12.88 (1.20)
ADH4038 5.09 (0.47) 43 3 / 16" (1097) 17" (431) 9.47 (0.88) 5.35 (0.50) 40 7 / 8" (1039) 14.19 (1.32)
ADH4040 5.69 (0.53) 43 3 / 16 " (1097) 19" (482) 10.60 (0.98) 5.95 (0.55) 36 7 / 8 " (937) 15.50 (1.44)
ADH4044 6.29 (0.58) 43 3 / 16 " (1097) 21" (533) 11.73 (1.09) 6.55 (0.61) 32 7 / 8 " (836) 16.82 (1.56)
ADH4048 6.89 (0.64) 43 3 / 16 " (1097) 23" (584) 12.86 (1.19) 7.15 (0.66) 28 7 / 8 " (734) 18.13 (1.68)
ADH4050 ◊ 7.49 (0.70) 43 3 / 16 " (1097) 25" (634) 13.99 (1.30) 7.75 (0.72) 24 7 / 8 " (632) 19.44 (1.81)
ADH4054 ◊ 8.09 (0.75) 43 3 / 16" (1097) 27" (685) 15.11 (1.40) 8.35 (0.78) 20 7 / 8" (531) 20.75 (1.93)
ADH4058 ◊ 8.69 (0.81) 43 3 / 16 " (1097) 29" (736) 16.24 (1.51) 8.95 (0.83) 16 7 / 8 " (429) 22.07 (2.05)
ADH4060 ◊ 9.29 (0.86) 43 3 / 16 " (1097) 31" (787) 17.37 (1.61) 9.55 (0.89) 12 7 / 8 " (328) 23.38 (2.17)
ADH4064 ◊ 9.89 (0.92) 43 3 / 16 " (1097) 33" (838) 18.50 (1.72) 10.13 (0.94) 8 7 / 8 " (226) 24.96 (2.29)
ADH4068 ◊ 10.49 (0.97) 43 3 / 16 " (1097) 35" (889) 19.62 (1.82) 10.73 (1.00) * * 26.00 (2.42)
ADH4074 ◊ 11.69 (1.09) 43 3 / 16 " (1097) 39" (991) 21.88 (2.03) 11.93 (1.11) * * 28.63 (2.66)
ADH4080 ◊ 12.89 (1.20) 43 3 / 16 " (1097) 43" (1092) 24.14 (2.24) 13.13 (1.22) * * 31.25 (2.90)
1
• "Top of Subfloor to Top of Inside Sill Stop" is calculated based upon a structural header height of 6'-10 / 2 " (2096).
• Dimensions in parentheses are in millimeters or square meters.
◊Meet or exceed clear opening area of 5.7 sq.ft. or 0.53 m 2 , clear opening width of 20" (508) and clear opening height of 24" (610).
*Dimension varies depending on header height.
