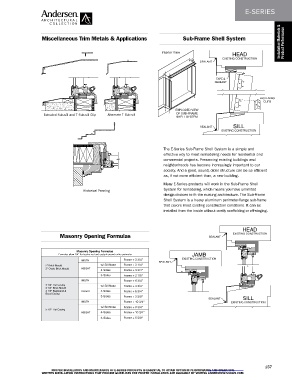

Page 159 - Andersen Architectural Collection E-Series 2017-18 Product Guide for Professionals

Installation Materials & Product Performance

Miscellaneous Trim Metals & Applications Sub-Frame Shell System

Interior View
HEAD
EXISTING CONSTRUCTION
SEALANT

TAPE &
SEALANT

FASTENING
CLIPS
EXPLODED VIEW
Extruded Sub-sill and T Sub-sill Clip Alternate T Sub-sill OF SUB-FRAME
SHELL SYSTEM
SILL
SEALANT
EXISTING CONSTRUCTION

The E-Series Sub-Frame Shell System is a simple and
effective way to meet remodeling needs for residential and
commercial projects. Preserving existing buildings and
neighborhoods has become increasingly important to our
society. And a good, sound, older structure can be as efficient
as, if not more efficient than, a new building.
HEAD
Many E-Series products will work in the Sub-Frame Shell
EXISTING CONSTRUCTION
Historical Panning System for remodeling, which means you have unlimited
SEALANT
design choices to fit the existing architecture. The Sub-Frame
Shell System is a heavy aluminum perimeter-flange sub-frame
that covers most existing construction conditions. It can be
HEAD
installed from the inside without costly scaffolding or off-staging.
EXISTING CONSTRUCTION
SEALANT
JAMB
HEAD
EXISTING CONSTRUCTION
EXISTING CONSTRUCTION
Masonry Opening Formulas SEALANT
SEALANT
Masonry Opening Formulas
Formulas allow 1/4" for backer rod and sealant around entire perimeter JAMB
WIDTH Frame + 3 3/4" EXISTING CONSTRUCTION
SEALANT
2" Brick Mould w/ Sill Nose Frame + 3 1/4"
2" Ovolo Brick Mould HEIGHT
4-Sides Frame + 3 3/4"
3-Sides Frame + 2 1/8" JAMB
EXISTING CONSTRUCTION
WIDTH Frame + 6 3/4"
SEALANT
3 1/2" Flat Casing w/ Sill Nose Frame + 4 3/4"
3 1/2" Brick Mould
3 1/2" Backband & HEIGHT 4-Sides Frame + 6 3/4"
Bead Casing
3-Sides Frame + 3 5/8"
SEALANT SILL
WIDTH Frame + 10 3/4" EXISTING CONSTRUCTION
w/ Sill Nose Frame + 6 3/4"
5 1/2" Flat Casing
HEIGHT 4-Sides Frame + 10 3/4"
3-Sides Frame + 5 5/8"
SEALANT SILL
EXISTING CONSTRUCTION
SEALANT SILL
EXISTING CONSTRUCTION

157
PROPER INSTALLATION AND MAINTENANCE OF E-SERIES PRODUCTS IS ESSENTIAL TO ATTAIN OPTIMUM PERFORMANCE AND OPERATION.
WRITTEN INSTALLATION INSTRUCTIONS THAT PROVIDE GUIDELINES FOR PROPER INSTALLATION ARE AVAILABLE BY VISITING ANDERSENWINDOWS.COM.
