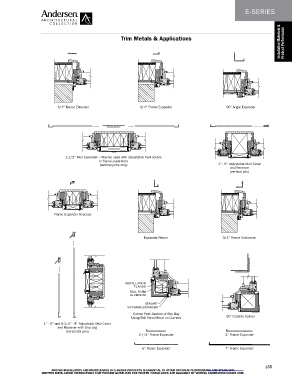

Installation Materials & Product Performance
Trim Metals & Applications
3/4" Frame Extender 3/4" Frame Expander 90˚ Angle Expander
1-1/2" Mull Expander – May be used with adjustable mull covers
or frame expanders
(vertical joins only) 1" - 5" Adjustable Mull Cover
and Receiver
(vertical join)
Frame Expander Receiver
Expander Return 3/4" Frame Enclosure
INSTALLATION
FLANGE
ROLL FORM
ALUMINUM
SEALANT
3 /4" FRAME EXPANDER
Corner Post Section of Box Bay
Using Roll Form Metal on Corners 90˚ Outside Corner
1" - 5" and 5-1/4" - 8" Adjustable Mull Cover
and Receiver with Drip Leg
(horizontal join)
2-1/4" Frame Expander 3" Frame Expander
5" Frame Expander 7" Frame Expander
155
PROPER INSTALLATION AND MAINTENANCE OF E-SERIES PRODUCTS IS ESSENTIAL TO ATTAIN OPTIMUM PERFORMANCE AND OPERATION.
WRITTEN INSTALLATION INSTRUCTIONS THAT PROVIDE GUIDELINES FOR PROPER INSTALLATION ARE AVAILABLE BY VISITING ANDERSENWINDOWS.COM.
