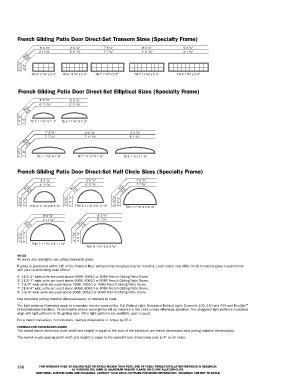

Page 154 - Andersen Architectural Collection E-Series 2017-18 Product Guide for Professionals

French Gliding Patio Door Direct-Set Transom Sizes (Specialty Frame)

1
1
1
1
5' 0 /4" 6' 0 1 /4" 7' 8 /4" 8' 0 /4" 9' 2 /4"
4' 11 /4" 5' 11 3 /4" 7' 7 3 /4" 7' 11 /4" 9' 1 /4"
3
3
3
R.O.
F.S.
2' 0 1 /2" 2' 0"
3
3
TR 4' 11 /4" x 2' 0" TR 5' 11 3 /4" x 2' 0" TR 7' 7 3 /4" x 2' 0" TR 7' 11 /4" x 2' 0" TR 9' 1 3 /4" x 2' 0"
French Gliding Patio Door Direct-Set Elliptical Sizes (Specialty Frame)
1
5' 0 /4" 6' 0 /4"
1
3
4' 11 /4" 5' 11 /4"
3
R.O. F.S.
1' 4 1 /2" 1' 4" TE 4' 11 /4" X 1' 4" TE 5' 11 /4" X 1' 4"
3
3
7' 8 /4" 8' 0 /4" 9' 2 /4"
1
1
1
3
3
7' 7 /4" 7' 11 /4" 9' 1 /4"
3
R.O. F.S.
1' 6 1 /2" 1' 6" TE 7' 7 /4" X 1' 6" TE 7' 11 /4" X 1' 6" TE 9' 1 /4" X 1' 6"
3
3
3
French Gliding Patio Door Direct-Set Half Circle Sizes (Specialty Frame)
1
1
5' 0 /4" 6' 0 /4" 7' 8 /4"
1
3
3
3
R.O. F.S. 4' 11 /4" R.O. F.S. 5' 11 /4" R.O. F.S. 7' 7 /4"
2' 6 3 /8" 2' 5 7 /8" THC 4' 11 /4" X 2' 5 /8" 3' 0 3 /8" 2' 11 7 /8" THC 5' 11 /4" X 2' 11 /8" 3' 10 3 /8" 3' 9 7 /8" THC 7' 7 /4" X 3' 9 /8"
7
3
3
7
3
7
1
8' 0 /4" 9' 2 /4"
1
3
3
R.O. F.S. 7' 11 /4" R.O. F.S. 9' 1 /4"
4' 0 3 /8" 3' 11 7 /8" 4' 7 3 /8" 4' 6 7 /8"
3
7
THC 7' 11 /4" X 3' 11 /8"
3
7
THC 9' 1 /4" X 4' 6 /8"
NOTES
All doors and sidelights use safety/tempered glass.
If glass is positioned within 18" of the finished floor, safety/tempered glass may be required. Local codes may differ. Verify tempered glass requirements
with your local building code official.
4' 11-3/4" wide units are used above 5068, 50610 or 5080 French Gliding Patio Doors.
5' 11-3/4" wide units are used above 6068, 60610 or 6080 French Gliding Patio Doors.
7' 7-3/4" wide units are used above 7668, 76610 or 7680 French Gliding Patio Doors.
7' 11-3/4" wide units are used above 8068, 80610 or 8080 French Gliding Patio Doors.
9' 1-3/4" wide units are used above 9068, 90610 or 9080 French Gliding Patio Doors.
Use structural joining material when necessary or required by code.
The light patterns illustrated apply to removable interior wood grilles, Full Divided Light, Simulated Divided Light, Decorelle 100, 150 and 400 and Finelight
™
Grilles-Between-the-Glass. All removable interior wood grilles will be installed in the units unless otherwise specified. The staggered light patterns illustrated
align with light patterns in the gliding door. Other light patterns are available upon request.
For a metric conversion in millimeters, multiply dimensions in inches by 25.4.
FORMULA FOR COMBINATION DOORS
The overall frame dimension (both width and height) is equal to the sum of the individual unit frame dimensions plus joining material dimension(s).
The overall rough opening (both width and height) is equal to the overall frame dimensions plus 1/4" on all sides.
152 FOR WINDOWS OVER 30 SQUARE FEET OR RATED HIGHER THAN PG50, ONE OF THESE THREE INSTALLATION METHODS IS REQUIRED:
A) THROUGH THE JAMB B) ALUMINUM NAILING FLANGE OR C) INSTALLATION CLIPS.
ADDITIONAL CUSTOM SIZES ARE AVAILABLE. CONTACT YOUR LOCAL SUPPLIER FOR MORE INFORMATION. DRAWINGS ARE NOT TO SCALE.
