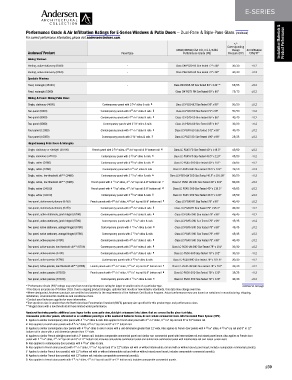

Page 161 - Andersen Architectural Collection E-Series 2017-18 Product Guide for Professionals

Performance Grade & Air Infiltration Ratings for E-Series Windows & Patio Doors — Dual-Pane & Triple-Pane Glass (continued)
, For current performance information, please visit andersenwindows.com.
+/- Installation Materials & Product Performance
Corresponding
AAMA/WDMA/CSA 101/I.S.2/A440 Design Air Infiltration
Andersen Product Panel Type Performance Grade (PG) Pressure (DP) CFM/FT 2
®
Gliding Windows
Venting, active-stationary (6040) - Class CW-PG30-HS Size Tested 72" x 48" 30/30 ≤0.2
Venting, active-stationary (6050) - Class CW-PG30-HS Size Tested 72" x 60" 30/30 ≤0.2
Specialty Windows
Fixed, rectangle (46120) - Class CW-PG55-FW Size Tested 54" x 144" * 55/55 ≤0.2
Fixed, rectangle (5080) - Class CW-PG75-FW Size Tested 60" x 96" 75/75 ≤0.2
Gliding & French Gliding Patio Doors
3
Single, stationary (4080) Contemporary panel with 2 ⁄ 4" stiles & rails 1 Class LC-PG50-SLT Size Tested 50" x 96" 50/50 ≤0.2
Two-panel (6080) Contemporary panels with 4 ⁄ 16" stiles & rails 2 Class LC-PG50-SD Size Tested 71" x 96" 50/50 ≤0.2
11
Two-panel (8080) Contemporary panels with 4 11 ⁄ 16" stiles & rails 2 Class LC-PG40-SD Size Tested 95" x 96" 40/40 ≤0.2
3
Two-panel (8080) Contemporary panels with 2 ⁄ 4" stiles & rails Class LC-PG30-SD Size Tested 95" x 96" 30/30 ≤0.2
Four-panel (12080) Contemporary panels with 4 11 ⁄ 16" stiles & rails 2 Class LC-PG40-SD Size Tested 142" x 96" 40/40 ≤0.2
3
Four-panel (16080) Contemporary panels with 2 ⁄ 4" stiles & rails 3 Class LC-PG25-SD Size Tested 190" x 96" 25/25 ≤0.2
Hinged Inswing Patio Doors & Sidelights
Single, stationary or sidelight (34100) French panel with 2 3 ⁄ 4" stiles, 4 ⁄ 16" top rail & 8" bottom rail 4 Class LC-PG45-FD Size Tested 40" x 119.5" 45/60 ≤0.2
11
11
Single, stationary (34100) Contemporary panel with 3 ⁄ 16" stiles & rails 5 Class LC-PG45-FD Size Tested 40.5" x 120" 45/50 ≤0.2
11
Single, active (3486) Contemporary panel with 4 ⁄ 16" stiles & rails 6 Class LC-PG45-SHD Size Tested 40" x 102" 45/65 ≤0.2
11
Single, active (3486) Contemporary panel with 3 ⁄ 16" stiles & rails Class LC-PG45-SHD Size Tested 40.5" x 102" 45/50 ≤0.2
Single, active, low threshold sill ** (3486) Contemporary panel with 3 ⁄ 16" stiles & rails 5 Class LC-PG50-LW SHD Size Tested 40.5" x 101.18" 50/50 ≤0.2
11
Single, active, low threshold sill ** (3486) French panel with 4 11 ⁄ 16" stiles, 4 ⁄ 16" top rail & 8" bottom rail 7 Class LC-PG50-LW SHD Size Tested 40" x 101" 50/60 ≤0.2
11
11
Single, active (34100) French panel with 4 ⁄ 16" stiles, 4 ⁄ 16" top rail & 8" bottom rail 8 Class LC-PG45-SHD Size Tested 40" x 119.5" 45/65 ≤0.2
11
Single, active (34100) Contemporary panel with 3 ⁄ 16" stiles & rails 5 Class LC-PG45-SHD Size Tested 40.5" x 120" 45/50 ≤0.2
11
11
Two-panel, stationary-stationary (6780) French panels with 4 ⁄ 16" stiles, 4 ⁄ 16" top rail & 8" bottom rail 7 Class LC-PG40-FD Size Tested 79" x 96" 40/40 ≤0.2
11
11
Two-panel, stationary-stationary (6780) Contemporary panels with 3 ⁄ 16" stiles & rails 5 Class LC-PG40-FD Size Tested 79" x 95.3" 40/40 ≤0.2
11
Two-panel, active-stationary, jamb hinged (6780) Contemporary panels with 4 ⁄ 16" stiles & rails 6 Class LC-PG45-SHD Size Tested 79" x 96" 45/45 ≤0.2
Two-panel, active-stationary, jamb hinged (6780) Contemporary panels with 3 ⁄ 16" stiles & rails Class LC-PG45-SHD Size Tested 79" x 96" 45/45 ≤0.2
11
11
Two-panel, active-stationary, astragal hinged (6780) Contemporary panels with 4 ⁄ 16" stiles & rails 6 Class LC-PG45-SHD Size Tested 79" x 96" 45/45 ≤0.2
11
Two-panel, active-stationary, astragal hinged (6780) Contemporary panels with 3 ⁄ 16" stiles & rails Class LC-PG45-SHD Size Tested 79" x 96" 45/45 ≤0.2
Two-panel, active-passive (6780) Contemporary panels with 4 11 ⁄ 16" stiles & rails 6 Class LC-PG40-SHD Size Tested 79" x 96" 40/40 ≤0.2
11
Two-panel, active-passive, low threshold sill ** (6786) Contemporary panels with 3 ⁄ 16" stiles & rails 5 Class LC-PG30-LW SHD Size Tested 79" x 101" 30/30 ≤0.2
Two-panel, active-passive (6786) Contemporary panels with 4 ⁄ 16" stiles & rails 9 Class LC-PG30-SHD Size Tested 79" x 102" 30/30 ≤0.2
11
Two-panel, active-passive (6786) Contemporary panels with 3 ⁄ 16" stiles & rails Class LC-PG30-SHD Size Tested 79" x 101.8" 30/40 ≤0.2
11
11
11
Two-panel, active-passive, low threshold sill ** (6786) French panels with 4 ⁄ 16" stiles, 4 ⁄ 16" top rail & 8" bottom rail 7 Class LC-PG30-LW SHD Size Tested 79" x 101" 30/30 ≤0.2
11
11
Two-panel, active-passive (67100) French panels with 4 ⁄ 16" stiles, 4 ⁄ 16" top rail & 8" bottom rail 8 Class LC-PG35-SHD Size Tested 79" x 120" 35/35 ≤0.2
Two-panel, active-passive (67100) Contemporary panels with 3 11 ⁄ 16" stiles & rails 5 Class LC-PG30-SHD Size Tested 79" x 120" 30/40 ≤0.2
• "Performance Grade (PG)" ratings may vary from tested performance rating for larger or smaller units of a particular type. continued on next page
• This data is accurate as of October 2018. Due to ongoing product changes, updated test results or new industry standards, this data may change over time.
• Where designated, Andersen products are certified and labeled to the requirements of the Hallmark Certification Program. Actual performance may vary based on variations in manufacturing, shipping,
installation, environmental conditions and conditions of use.
• Contact your Andersen supplier for more information.
*Test specimen size is smaller than the North American Fenestration Standard (NAFS) gateway size specified for this product type and performance class.
**Hinged doors with a low threshold sill have limited water performance.
Numbered footnotes provide additional panel types for the same patio door, sidelight or transom listed above that are covered by the given test data.
Commercial patio door panels, referenced as an additional panel type in the numbered footnotes below, do not include commercial doors with Concealed Panic System (CPS).
11
11
11
1 Applies to similar contemporary door panel with 4 ⁄ 16" stiles & rails. Also applies to French door panel with 4 ⁄ 16" stiles, 4 ⁄ 16" top rail and 8" or 12" bottom rail.
2 Also applies to French door panels with 4 ⁄ 16" stiles, 4 ⁄ 16" top rail and 8" or 12" bottom rail.
11
11
11
11
11
3 Applies to similar contemporary door panels with 4 ⁄ 16" stiles & rails in doors with a unit dimension greater than 12' wide. Also applies to French door panels with 4 ⁄ 16" stiles, 4 ⁄ 16" top rail and 8" or 12"
bottom rail in doors with a unit dimension greater than 12' wide.
4 Applies to similar French sidelight panel with 12" bottom rail; includes comparable commercial panel and similar non-commercial panel with intermediate rail and raised panel insert. Also applies to French door
11
panel with 4 ⁄ 16" stiles, 4 ⁄ 16" top rail and 8" or 12" bottom rail; includes comparable commercial panel and similar non-commercial panel with intermediate rail and raised panel insert.
11
11
5 Also applies to contemporary door panel(s) with 4 ⁄ 16" stiles & rails.
11
6 Also applies to French door panel(s) with 4 ⁄ 16" stiles, 4 ⁄ 16" top rail and 8" or 12" bottom rail with or without intermediate rail and with or without raised panel insert; includes comparable commercial panel(s).
11
7 Applies to similar French door panel(s) with 12" bottom rail with or without intermediate rail and with or without raised panel insert; includes comparable commercial panel(s).
8 Applies to similar French door panel(s) with 12" bottom rail; includes comparable commercial panel(s).
11
11
9 Also applies to French door panels with 4 ⁄ 16" stiles, 4 ⁄ 16" top rail and 8" or 12" bottom rail; includes comparable commercial panels.
