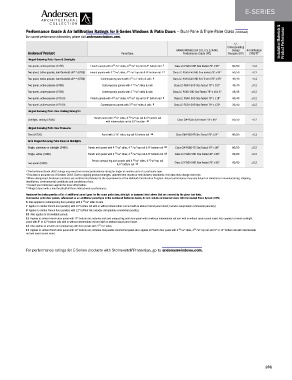

Page 163 - Andersen Architectural Collection E-Series 2017-18 Product Guide for Professionals

Performance Grade & Air Infiltration Ratings for E-Series Windows & Patio Doors — Dual-Pane & Triple-Pane Glass (continued)
, For current performance information, please visit andersenwindows.com.
+/- Installation Materials & Product Performance
Corresponding
AAMA/WDMA/CSA 101/I.S.2/A440 Design Air Infiltration
Andersen Product Panel Type Performance Grade (PG) Pressure (DP) CFM/FT 2
®
Hinged Outswing Patio Doors & Sidelights
11
Two-panel, active-passive (6780) French panels with 4 ⁄ 16" stiles, 4 ⁄ 16" top rail & 8" bottom rail 7 Class LC-PG60-SHD Size Tested 79" x 95" 60/60 ≤0.2
11
11
11
Two-panel, active-passive, low threshold sill ** (6780) French panels with 4 ⁄ 16" stiles, 4 ⁄ 16" top rail & 8" bottom rail 17 Class LC-PG50-LW SHD Size Tested 79" x 94" 50/50 ≤0.2
Two-panel, active-passive, low threshold sill ** (6780) Contemporary panels with 3 11 ⁄ 16" stiles & rails 5 Class LC-PG40-LW SHD Size Tested 79" x 95" 40/40 ≤0.2
11
Two-panel, active-passive (6786) Contemporary panels with 4 ⁄ 16" stiles & rails Class LC-PG40-SHD Size Tested 79" x 101" 40/40 ≤0.2
Two-panel, active-passive (6786) Contemporary panels with 3 11 ⁄ 16" stiles & rails Class LC-PG45-SHD Size Tested 79" x 101.5" 45/45 ≤0.2
11
11
Two-panel, active-passive (67100) French panels with 4 ⁄ 16" stiles, 4 ⁄ 16" top rail & 8" bottom rail 8 Class LC-PG40-SHD Size Tested 79" x 119" 40/40 ≤0.2
Two-panel, active-passive (67100) Contemporary panels with 3 11 ⁄ 16" stiles & rails 5 Class LC-PG30-SHD Size Tested 79" x 120" 30/40 ≤0.2
Hinged Outswing Patio Door Venting Sidelights
French panel with 2 3 ⁄ 4" stiles, 4 ⁄ 16" top rail & 8" bottom rail
11
Sidelight, venting (2080) Class CW-PG50 Size Tested 24" x 96" 50/50 ≤0.2
with intermediate rail at 35" location 10
Hinged Outswing Patio Door Transoms
Fixed (6720) Panel with 2 3 ⁄ 4" stiles, top rail & bottom rail 10 Class CW-PG80-TR Size Tested 79" x 24" 80/80 ≤0.2
Arch Hinged Outswing Patio Doors & Sidelights
Single, stationary or sidelight (3480) French arch panel with 4 ⁄ 16" stiles, 4 ⁄ 16" top rail & 8" bottom rail 12 Class CW-PG80-FD Size Tested 40" x 96" 80/80 ≤0.2
11
11
11
11
Single, active (3480) French arch panel with 4 ⁄ 16" stiles, 4 ⁄ 16" top rail & 8" bottom rail 13 Class LC-PG60-SHD Size Tested 40" x 96" 60/60 ≤0.2
French unequal leg arch panels with 4 11 ⁄ 16" stiles, 4 ⁄ 16" top rail
11
Two-panel (6080) & 8" bottom rail 13 Class LC-PG60-SHD Size Tested 79" x 96" 60/60 ≤0.2
• "Performance Grade (PG)" ratings may vary from tested performance rating for larger or smaller units of a particular type.
• This data is accurate as of October 2018. Due to ongoing product changes, updated test results or new industry standards, this data may change over time.
• Where designated, Andersen products are certified and labeled to the requirements of the Hallmark Certification Program. Actual performance may vary based on variations in manufacturing, shipping,
installation, environmental conditions and conditions of use.
• Contact your Andersen supplier for more information.
**Hinged doors with a low threshold sill have limited water performance.
Numbered footnotes provide a list of additional panel types for the same patio door, sidelight or transom listed above that are covered by the given test data.
Commercial patio door panels, referenced as an additional panel type in the numbered footnotes below, do not include commercial doors with Concealed Panic System (CPS).
11
5 Also applies to contemporary door panel(s) with 4 ⁄ 16" stiles & rails.
7 Applies to similar French door panel(s) with 12" bottom rail with or without intermediate rail and with or without raised panel insert; includes comparable commercial panels(s).
8 Applies to similar French door panel(s) with 12" bottom rail; includes comparable commercial panel(s).
10 Also applies to all available panels.
12 Applies to similar French door panel with 12" bottom rail; includes arch and unequal leg arch door panel with or without intermediate rail and with or without raised panel insert. Also applies to French sidelight
panel with 8" or 12" bottom rails with or without intermediate rail and with or without raised panel insert.
11
13 Also applies to all arch and unequal leg arch door panels with 4 ⁄ 16" stiles.
11
11
17 Applies to similar French door panel with 12" bottom rail; includes comparable commercial panel. Also applies to French door panel with 4 ⁄ 16" stiles, 4 ⁄ 16" top rail and 8" or 12" bottom rail with intermediate
rail and raised panel insert.
For performance ratings for E-Series products with Stormwatch Protection, go to andersenwindows.com.
®
