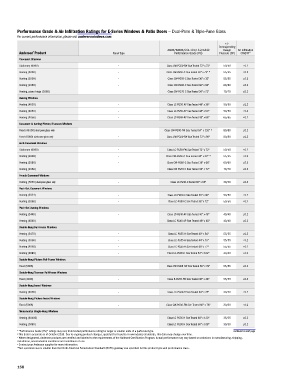

Performance Grade & Air Infiltration Ratings for E-Series Windows & Patio Doors — Dual-Pane & Triple-Pane Glass
, For current performance information, please visit andersenwindows.com.
+/-
Corresponding
AAMA/WDMA/CSA 101/I.S.2/A440 Design Air Infiltration
Andersen Product Panel Type Performance Grade (PG) Pressure (DP) CFM/FT 2
®
Casement Windows
Stationary (6060) - Class CW-PG50-FW Size Tested 72" x 72" 50/50 ≤0.2
Venting (2660) - Class CW-PG55-C Size Tested 30" x 72" * 55/55 ≤0.2
Venting (3028) - Class CW-PG55-C Size Tested 36" x 32" 55/55 ≤0.2
Venting (3056) - Class CW-PG60-C Size Tested 36" x 66" 60/60 ≤0.2
Venting, piano hinge (3060) - Class CW-PG70-C Size Tested 36" x 72" 70/70 ≤0.2
Awning Windows
Venting (4030) - Class LC-PG50-AP Size Tested 48" x 36" 50/50 ≤0.2
Venting (4050) - Class LC-PG50-AP Size Tested 48" x 60" 50/50 ≤0.2
Venting (4056) - Class LC-PG65-AP Size Tested 48" x 66" 65/65 ≤0.2
Casement & Awning Picture/Transom Windows
Fixed (46100) dual-pane glass only - Class CW-PG80-FW Size Tested 54" x 120" * 80/80 ≤0.2
Fixed (6080) dual-pane glass only - Class CW-PG80-FW Size Tested 72" x 96" 80/80 ≤0.2
Arch Casement Windows
Stationary (6060) - Class LC-PG50-FW Size Tested 72" x 72" 50/50 ≤0.2
Venting (3028) - Class CW-PG55-C Size Tested 36" x 32" * 55/55 ≤0.2
Venting (3056) - Class CW-PG60-C Size Tested 36" x 66" 60/60 ≤0.2
Venting (3060) - Class CW-PG70-C Size Tested 36" x 72" 70/70 ≤0.2
French Casement Windows
Venting (5050) dual-pane glass only - Class LC-PG30-C Tested 60" x 60" 30/30 ≤0.2
Push Out Casement Windows
Venting (3034) - Class LC-PG50-C Size Tested 36" x 40" 50/50 ≤0.2
Venting (3060) - Class LC-PG50-C Size Tested 36" x 72" 50/50 ≤0.2
Push Out Awning Windows
Venting (3440) - Class LC-PG40-AP Size Tested 40" x 48" 40/40 ≤0.2
Venting (4040) - Class LC-PG40-AP Size Tested 48" x 48" 40/40 ≤0.2
Double-Hung Full-Frame Windows
Venting (3470) - Class LC-PG55-H Size Tested 40" x 84" 55/55 ≤0.2
Venting (3866) - Class LC-PG55-H Size Tested 44" x 78" 55/55 ≤0.2
Venting (4060) - Class LC-PG55-H Size Tested 48" x 72" 55/55 ≤0.2
Venting (4686) - Class LC-PG30-H Size Tested 54" x 102" 30/30 ≤0.2
Double-Hung Picture Full-Frame Windows
Fixed (5066) - Class CW-PG55-FW Size Tested 60" x 78" 55/55 ≤0.2
Double-Hung Transom Full-Frame Windows
Fixed (4040) - Class R-PG55-FW Size Tested 48" x 48" 55/55 ≤0.2
Double-Hung Insert Windows
Venting (3866) - Class LC-PG30-H Size Tested 44" x 78" 30/30 ≤0.2
Double-Hung Picture Insert Windows
Fixed (5066) - Class CW-PG30-FW Size Tested 60" x 78" 30/30 ≤0.2
Monumental Single-Hung Windows
Venting (40100) - Class LC-PG35-H Size Tested 48" x 120" 35/35 ≤0.2
Venting (5090) - Class LC-PG30-H Size Tested 60" x 108" 30/30 ≤0.2
• "Performance Grade (PG)" ratings may vary from tested performance rating for larger or smaller units of a particular type. continued on next page
• This data is accurate as of October 2018. Due to ongoing product changes, updated test results or new industry standards, this data may change over time.
• Where designated, Andersen products are certified and labeled to the requirements of the Hallmark Certification Program. Actual performance may vary based on variations in manufacturing, shipping,
installation, environmental conditions and conditions of use.
• Contact your Andersen supplier for more information.
*Test specimen size is smaller than the North American Fenestration Standard (NAFS) gateway size specified for this product type and performance class.
