SPECIALTY WINDOWS

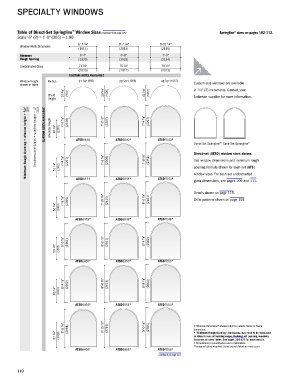

Table of Direct-Set Springline Window Sizes ™ (continued from page 108) Springline ™ sizes on pages 102-112.
1
Scale ⁄8" (3) = 1'-0" (305) — 1:96
6'-3 1 ⁄4" 6'-7 1 ⁄4" 6'-11 1 ⁄4"
Window Width Dimension
(1911) (2013) (2115)
Minimum 6'-4" 6'-8" 7'-0"
Rough Opening (1930) (2032) (2134)
Unobstructed Glass 71 1 ⁄4" 75 1 ⁄4" 79 1 ⁄4"
(1810) (1911) (2013)
CUSTOM SIZES AVAILABLE
Window height Radius 37 5 ⁄8" (956) 39 5 ⁄8" (1006) 41 5 ⁄8" (1057)
shown in table Custom-size windows are available
1
37 5 ⁄8" (956) 39 5 ⁄8" (1006) 41 5 ⁄8" 41 5 ⁄8" (1057) (1057) in ⁄ 8" (3) increments. Contact your
Chord
Height Andersen supplier for more information.
Minimum Rough Opening = window height + 3 ⁄4" Unobstructed Glass = window height – 4" CUSTOM SIZES AVAILABLE Shoulder Height 47 1 ⁄4" (1200) 7'-0 7 ⁄8" 7'-4 7 ⁄8" (2156) (2257) ATSD6440 7'-2 7 ⁄8" 7'-6 7 ⁄8" (2207) (2308) ATSD6840* 7'-4 7 ⁄8" 7'-8 7 ⁄8" (2257) (2359) ATSD7040* Direct-Set Springline ™ Sash-Set Springline ™
(102)
(19)

Direct-set (ATSD) window sizes shown.
Use window dimensions and minimum rough
51 1 ⁄4"
(1302)
opening formula shown for sash-set (ATS)
window sizes. For sash-set unobstructed
ATSD6844*
ATSD7044*
ATSD6444
glass dimensions, see pages 109 and 111.
Details shown on page 115.
7'-8 7 ⁄8" (2359) 7'-10 7 ⁄8" (2410) 8'-0 7 ⁄8" (2461) Grille patterns shown on page 109.
55 1 ⁄4" (1403)

ATSD6448* ATSD6848* ATSD7048*

8'-0 7 ⁄8" (2461) 8'-2 7 ⁄8" (2511) 8'-4 7 ⁄8" (2562)
59 1 ⁄4" (1505)

ATSD6450* ATSD6850* ATSD7050*

8'-4 7 ⁄8" (2562) 8'-6 7 ⁄8" (2613) 8'-8 7 ⁄8" (2664)
63 1 ⁄4" (1607)

ATSD6454* ATSD6854* ATSD7054*

8'-8 7 ⁄8" (2664) 8'-10 7 ⁄8" (2715) 9'-0 7 ⁄8" (2765) • "Window Dimension" always refers to outside frame to frame
dimension.
67 1 ⁄4" (1708) • "Minimum Rough Opening" dimensions may need to be increased
to allow for use of building wraps, flashing, sill panning, brackets,
fasteners or other items. See pages 236-237 for more details.
• Dimensions in parentheses are in millimeters.
*Tempered glass required. Some visual distortion may occur.
ATSD6458* ATSD6858* ATSD7058*
continued on page 112

110 9'-0 7 ⁄8" (2765) 9'-2 7 ⁄8" (2816) 9'-4 7 ⁄8" (2867)
71 1 ⁄4" (1810)

ATSD6460* ATSD6860* ATSD7060*

9'-4 7 ⁄8" (2867) 9'-6 7 ⁄8" (2918) 9'-8 7 ⁄8" (2969)
75 1 ⁄4" (1911)

ATSD6464* ATSD6864* ATSD7064*

9'-8 7 ⁄8" (2969) 9'-10 7 ⁄8" (3019) 10'-0 7 ⁄8" (3070)
79 1 ⁄4" (2013)

ATSD6468* ATSD6868* ATSD7068*

10'-4 7 ⁄8" (3172) 10'-6 7 ⁄8" (3223) 10'-8 7 ⁄8" (3273)
87 1 ⁄4" (2216)

ATSD6474* ATSD6874* ATSD7074*

11'-0 7 ⁄8" (3375) 11'-2 7 ⁄8" (3426) 11'-4 7 ⁄8" (3477)
95 1 ⁄4" (2419)

ATSD6480* ATSD6880* ATSD7080*
