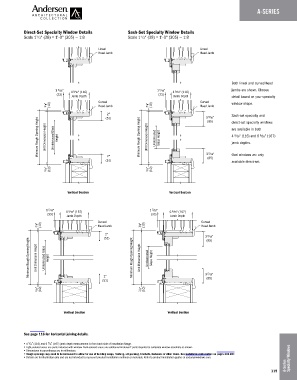

Page 117 - Andersen Architectural Collection A-Series 2018-19 Product Guide for Professionals

A-SERIES

Direct-Set Specialty Window Details Sash-Set Specialty Window Details
1
1
Scale 1 ⁄ 2" (38) = 1'-0" (305) — 1:8 Scale 1 ⁄ 2" (38) = 1'-0" (305) — 1:8
Lineal Lineal
Head Jamb Head Jamb

Both lineal and curved head
1 5 ⁄16" 4 9 ⁄16" (116) 1 5 ⁄16" 4 9 ⁄16" (116) jambs are shown. Choose
(33) Jamb Depth (33) Jamb Depth detail based on your specialty
Curved Curved
3 ⁄ 8" (10) Head Jamb 3 ⁄ 8" (10) Head Jamb window shape.
2" 3 5 ⁄16" Sash-set specialty and
(51)
Minimum Rough Opening Height Unit Dimension Height Unobstructed Glass Height Minimum Rough Opening Height Unit Dimension Height Unobstructed Glass Height are available in both
(85)
direct-set specialty windows
⁄16" (116) and 6 ⁄16" (167)
9
4 9
jamb depths.

2"
(85)
(51) 3 5 ⁄16" Oval windows are only
available direct-set.
Lineal Lineal
3 ⁄ 8" (10) Head Jamb 3 ⁄ 8" (10) Head Jamb

Vertical Section Vertical Section

1 5 ⁄16" 6 9 ⁄16" (167) 1 5 ⁄16" 6 9 ⁄16" (167)
(33) Jamb Depth (33) Jamb Depth
Curved Curved
3 ⁄ 8" (10) Head Jamb 3 ⁄ 8" (10) Head Jamb
2" 3 5 ⁄16"
(51)
Minimum Rough Opening Height Unit Dimension Height Unobstructed Glass Height Minimum Rough Opening Height Unit Dimension Height Unobstructed Glass Height
(85)

2"
(85)
(51) 3 5 ⁄16"
3 ⁄ 8" (10) 3 ⁄ 8" (10)

Vertical Section Vertical Section

See page 116 for horizontal joining details.
9
9
• 4 / 16 " (116) and 6 / 16 " (167) jamb depth measurement is from back side of installation flange.
• Light-colored areas are parts included with window. Dark-colored areas are additional Andersen ® parts required to complete window assembly as shown.
• Dimensions in parentheses are in millimeters.
• Rough openings may need to be increased to allow for use of building wraps, flashing, sill panning, brackets, fasteners or other items. See installation information on pages 236-237.
• Details are for illustration only and are not intended to represent product installation methods or materials. Refer to product installation guides at andersenwindows.com. Specialty Windows
A-Series
