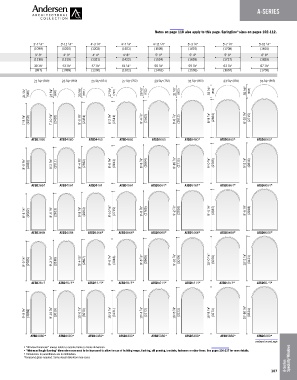

Page 109 - Andersen Architectural Collection A-Series 2018-19 Product Guide for Professionals

A-SERIES

Notes on page 110 also apply to this page. Springline ™ sizes on pages 102-112.

3'-7 1 ⁄4" 3'-11 1 ⁄4" 4'-3 1 ⁄4" 4'-7 1 ⁄4" 4'-11 1 ⁄4" 5'-3 1 ⁄4" 5'-7 1 ⁄4" 5'-11 1 ⁄4"
(1099) (1200) (1302) (1403) (1505) (1607) (1708) (1810)
3'-8" 4'-0" 4'-4" 4'-8" 5'-0" 5'-4" 5'-8" 6'-0"
(1118) (1219) (1321) (1422) (1524) (1626) (1727) (1829)
39 1 ⁄4" 43 1 ⁄4" 47 1 ⁄4" 51 1 ⁄4" 55 1 ⁄4" 59 1 ⁄4" 63 1 ⁄4" 67 1 ⁄4"
(997) (1099) (1200) (1302) (1403) (1505) (1607) (1708)
21 5 ⁄8" (549) 23 5 ⁄8" (600) 25 5 ⁄8" (651) 27 5 ⁄8" (702) 29 5 ⁄8" (752) 31 5 ⁄8" (803) 33 5 ⁄8" (854) 35 5 ⁄8" (905)

21 5 ⁄8" (549) 23 5 ⁄8" (600) 25 5 ⁄8" (651) 27 5 ⁄8" (702) 29 5 ⁄8" (752) 31 5 ⁄8" (803) 33 5 ⁄8" (854) 35 5 ⁄8" (905)

7'-8 7 ⁄8" (2359) 7'-10 7 ⁄8" (2410) 8'-0 7 ⁄8" (2461) 8'-2 7 ⁄8" (2511) 8'-4 7 ⁄8" (2562) 8'-6 7 ⁄8" (2613) 8'-8 7 ⁄8" (2664) 8'-10 7 ⁄8" (2715)

ATSD3860 ATSD4060 ATSD4460 ATSD4860 ATSD5060 ATSD5460* ATSD5860* ATSD6060*

8'-0 7 ⁄8" (2461) 8'-2 7 ⁄8" (2511) 8'-4 7 ⁄8" (2562) 8'-6 7 ⁄8" (2613) 8'-8 7 ⁄8" (2664) 8'-10 7 ⁄8" (2715) 9'-0 7 ⁄8" (2765) 9'-2 7 ⁄8" (2816)

ATSD3864 ATSD4064 ATSD4464 ATSD4864 ATSD5064* ATSD5464* ATSD5864* ATSD6064*

8'-4 7 ⁄8" (2562) 8'-6 7 ⁄8" (2613) 8'-8 7 ⁄8" (2664) 8'-10 7 ⁄8" (2715) 9'-0 7 ⁄8" (2765) 9'-2 7 ⁄8" (2816) 9'-4 7 ⁄8" (2867) 9'-6 7 ⁄8" (2918)

ATSD3868 ATSD4068 ATSD4468* ATSD4868* ATSD5068* ATSD5468* ATSD5868* ATSD6068*

9'-0 7 ⁄8" (2765) 9'-2 7 ⁄8" (2816) 9'-4 7 ⁄8" (2867) 9'-6 7 ⁄8" (2918) 9'-8 7 ⁄8" (2969) 9'-10 7 ⁄8" (3019) 10'-0 7 ⁄8" (3070) 10'-2 7 ⁄8" (3121)

ATSD3874 ATSD4074* ATSD4474* ATSD4874* ATSD5074* ATSD5474* ATSD5874* ATSD6074*

9'-8 7 ⁄8" (2969) 9'-10 7 ⁄8" (3019) 10'-0 7 ⁄8" (3070) 10'-2 7 ⁄8" (3121) 10'-4 7 ⁄8" (3172) 10'-6 7 ⁄8" (3223) 10'-8 7 ⁄8" (3273) 10'-10 7 ⁄8" (3324)

ATSD3880* ATSD4080* ATSD4480* ATSD4880* ATSD5080* ATSD5480* ATSD5880* ATSD6080*
continued on next page
• "Window Dimension" always refers to outside frame to frame dimension.
• "Minimum Rough Opening" dimensions may need to be increased to allow for use of building wraps, flashing, sill panning, brackets, fasteners or other items. See pages 236-237 for more details.
• Dimensions in parentheses are in millimeters.
*Tempered glass required. Some visual distortion may occur. Specialty Windows
A-Series
107
