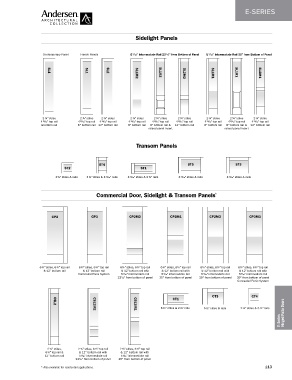

Page 115 - Andersen Architectural Collection E-Series 2017-18 Product Guide for Professionals

Sidelight Panels

Contemporary Panel French Panels SL2 5 / 16" Intermediate Rail 23 / 4" from Bottom of Panel 5 / 16" Intermediate Rail 35" from Bottom of Panel
1
5
5
SL1
SL4
SL1R1
SL1R2
SL2M1
SL1M2
SL1M1
SL2M2

2 3 ⁄4" stiles 2 3 ⁄4" stiles 2 3 ⁄4" stiles 2 3 ⁄4" stiles 2 3 ⁄4" stiles 2 3 ⁄4" stiles 2 3 ⁄4" stiles 2 3 ⁄4" stiles 2 3 ⁄4" stiles
4 11 ⁄16" top rail 4 11 ⁄16" top rail 4 11 ⁄16" top rail 4 11 ⁄16" top rail 4 11 ⁄16" top rail 4 11 ⁄16" top rail 4 11 ⁄16" top rail 4 11 ⁄16" top rail 4 11 ⁄16" top rail
& bottom rail 8" bottom rail 12" bottom rail 8" bottom rail 8" bottom rail & 12" bottom rail 8" bottom rail 8" bottom rail & 12" bottom rail
raised panel insert raised panel insert

Transom Panels

ST4 ST5 ST3
ST2 ST1
2 3 ⁄4" stiles & rails 2 3 ⁄4" stiles & 4 11 ⁄16" rails 4 11 ⁄16" stiles & 2 3 ⁄4" rails 3 11 ⁄16" stiles & rails 4 11 ⁄16" stiles & rails

Commercial Door, Sidelight & Transom Panels *

CP2 CP3 CP2M2 CP2M1 CP2M3 CP3M3

6 1 ⁄2" stiles, 6 1 ⁄2" top rail 6 1 ⁄2" stiles, 6 1 ⁄2" top rail 6 1 ⁄2" stiles, 6 1 ⁄2" top rail 6 1 ⁄2" stiles, 6 1 ⁄2" top rail 6 1 ⁄2" stiles, 6 1 ⁄2" top rail 6 1 ⁄2" stiles, 6 1 ⁄2" top rail
& 12" bottom rail & 12" bottom rail & 12" bottom rail with & 12" bottom rail with & 12" bottom rail with & 12" bottom rail with
Concealed Panic System 5 5 ⁄16" intermediate rail 5 5 ⁄16" intermediate rail 5 5 ⁄16" intermediate rail 5 5 ⁄16" intermediate rail
23 1 ⁄4" from bottom of panel 35" from bottom of panel 39" from bottom of panel 39" from bottom of panel
Concealed Panic System

CT3 CT4
CT1
CSL2
6 1 ⁄2" stiles & 2 3 ⁄4" rails 6 1 ⁄2" stiles & rails 2 3 ⁄4" stiles & 6 1 ⁄2" rails Hinged Patio Doors
CSL2M2
CSL2M1
E-Series

2 3 ⁄4" stiles, 2 3 ⁄4" stiles, 6 1 ⁄2" top rail 2 3 ⁄4" stiles, 6 1 ⁄2" top rail
6 1 ⁄2" top rail & & 12" bottom rail with & 12" bottom rail with
12" bottom rail 5 5 ⁄16" intermediate rail 5 5 ⁄16" intermediate rail
23 1 ⁄4" from bottom of panel 35" from bottom of panel
* Also available for residential applications. 113
