SPECIALTY WINDOWS

1
Scale 1 ⁄ 2" (38) = 1'-0" (305) — 1:8

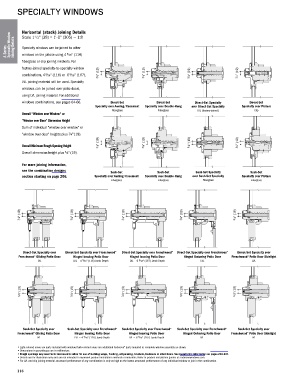

A-Series Specialty Window Joining Details Horizontal (stack) Joining Details
Specialty windows can be joined to other
windows on the jobsite using 4 ⁄16" (116)
9
fiberglass or clip joining methods. For
factory-joined specialty-to-specialty window
9
combinations, 4 ⁄16" (116) or 6 ⁄16" (167), 3 ⁄4" (19) 3 ⁄4" (19) 3 ⁄4" (19) 3 ⁄4" (19)
9
LVL joining material will be used. Specialty
windows can be joined over patio doors,
using LVL joining material. For additional
windows combinations, see pages 64-66. Direct-Set Direct-Set Direct-Set Specialty Direct-Set
Specialty over Awning/Casement Specialty over Double-Hung over Direct-Set Specialty Specialty over Picture
Fiberglass Fiberglass LVL (factory-joined) Clip
Overall "Window over Window" or
"Window over Door" Dimension Height
Sum of individual "window over window" or
"window over door" heights plus 3 ⁄4" (19).
3 ⁄4" (19) 3 ⁄4" (19) 3 ⁄4" (19) 3 ⁄4" (19)
Overall Minimum Rough Opening Height
3
Overall dimension height plus ⁄4" (19).
For more joining information,
see the combination designs Sash-Set Sash-Set Sash-Set Specialty Sash-Set
section starting on page 206. Specialty over Awning/Casement Specialty over Double-Hung over Sash-Set Specialty Specialty over Picture
Fiberglass Fiberglass Fiberglass Fiberglass

3 ⁄4" (19) 3 ⁄4" (19) 3 ⁄4" (19) 3 ⁄4" (19) 3 ⁄4" (19)

Direct-Set Specialty over Direct-Set Specialty over Frenchwood ® Direct-Set Specialty over Frenchwood ® Direct-Set Specialty over Frenchwood ® Direct-Set Specialty over
Frenchwood ® Gliding Patio Door Hinged Inswing Patio Door Hinged Inswing Patio Door Hinged Outswing Patio Door Frenchwood ® Patio Door Sidelight
9
9
LVL LVL — 4 ⁄16" (116) Jamb Depth LVL — 6 ⁄16" (167) Jamb Depth LVL LVL

3 ⁄4" (19) 3 ⁄4" (19) 3 ⁄4" (19) 3 ⁄4" (19) 3 ⁄4" (19)

Sash-Set Specialty over Sash-Set Specialty over Frenchwood ® Sash-Set Specialty over Frenchwood ® Sash-Set Specialty over Frenchwood ® Sash-Set Specialty over
Frenchwood ® Gliding Patio Door Hinged Inswing Patio Door Hinged Inswing Patio Door Hinged Outswing Patio Door Frenchwood ® Patio Door Sidelight
9
9
LVL LVL — 4 ⁄16" (116) Jamb Depth LVL — 6 ⁄16" (167) Jamb Depth LVL LVL
• Light-colored areas are parts included with window. Dark-colored areas are additional Andersen ® parts required to complete window assembly as shown.
• Dimensions in parentheses are in millimeters.
• Rough openings may need to be increased to allow for use of building wraps, flashing, sill panning, brackets, fasteners or other items. See installation information on pages 236-237.
• Details are for illustration only and are not intended to represent product installation methods or materials. Refer to product installation guides at andersenwindows.com.
• For LVL and clip joining material, structural performance of any combination is only as high as the lowest structural performance of any individual window or join in the combination.
