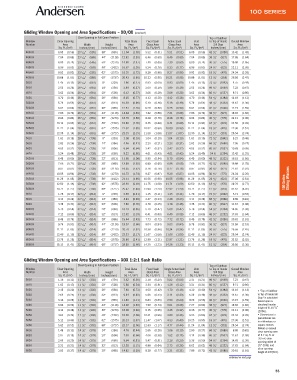

Page 57 - Andersen Windows & Patio Doors 2017-18 100 Series Product Guide for Professionals

Gliding Window Opening and Area Specifications – XO/OX (continued)
Clear Opening in Full Open Position Top of Subfloor
Window Clear Opening Total Glass Fixed Sash Active Sash Vent to Top of Inside Overall Window
Number Area Width Height Area Glass Area Glass Area Area Sill Stop Area
Sq. Ft./(m 2 ) Inches/(mm) Inches/(mm) Sq. Ft./(m 2 ) Sq. Ft./(m 2 ) Sq. Ft./(m 2 ) Sq. Ft./(m 2 ) Inches/(mm) Sq. Ft./(m 2 )
4636 ◊ 6.08 (0.56) 23 1 / 16 " (585) 38" (965) 11.04 (1.03) 5.52 (0.51) 5.51 (0.51) 6.08 (0.56) 42 1 / 2 " (1080) 15.42 (1.43)
4640 ◊ 7.04 (0.65) 23 1 / 16 " (585) 44" (1118) 12.92 (1.20) 6.46 (0.60) 6.45 (0.60) 7.04 (0.65) 36 1 / 2 " (927) 17.65 (1.64)
4646 ◊ 8.00 (0.74) 23 1 / 16 " (585) 50" (1270) 14.80 (1.37) 7.40 (0.69) 7.39 (0.69) 8.00 (0.74) 30 1 / 2" (775) 19.88 (1.85)
4650 ◊ 8.96 (0.83) 23 1 / 16 " (585) 56" (1422) 16.67 (1.55) 8.34 (0.78) 8.33 (0.77) 8.96 (0.83) 24 1 / 2" (622) 22.11 (2.05)
4656 ◊ 9.92 (0.92) 23 1 / 16 " (585) 62" (1575) 18.55 (1.72) 9.28 (0.86) 9.27 (0.86) 9.92 (0.92) 18 1 / 2 " (470) 24.34 (2.26)
4660 ◊ 10.88 (1.01) 23 1 / 16 " (585) 68" (1727) 20.43 (1.90) 10.23 (0.95) 10.21 (0.95) 10.88 (1.01) 12 1 / 2" (318) 26.56 (2.47)
5010 1.45 (0.13) 26 1 / 16 " (661) 8" (203) 1.86 (0.17) 0.93 (0.09) 0.93 (0.09) 1.45 (0.13) 72 1 / 2" (1842) 4.75 (0.44)
5016 2.53 (0.24) 26 1 / 16 " (661) 14" (356) 3.99 (0.37) 2.00 (0.19) 1.99 (0.19) 2.53 (0.24) 66 1 / 2" (1689) 7.23 (0.67)
5020 3.62 (0.34) 26 1 / 16 " (661) 20" (508) 6.12 (0.57) 3.06 (0.28) 3.06 (0.28) 3.62 (0.34) 60 1 / 2 " (1537) 9.71 (0.90)
5026 4.70 (0.44) 26 1 / 16 " (661) 26" (660) 8.25 (0.77) 4.13 (0.38) 4.12 (0.38) 4.70 (0.44) 54 1 / 2" (1384) 12.19 (1.13)
5030 ◊ 5.79 (0.54) 26 1 / 16 " (661) 32" (813) 10.38 (0.96) 5.19 (0.48) 5.18 (0.48) 5.79 (0.54) 48 1 / 2" (1232) 14.67 (1.36)
5036 ◊ 6.87 (0.64) 26 1 / 16 " (661) 38" (965) 12.51 (1.16) 6.26 (0.58) 6.25 (0.58) 6.87 (0.64) 42 1 / 2" (1080) 17.15 (1.59)
5040 ◊ 7.96 (0.74) 26 1 / 16 " (661) 44" (1118) 14.64 (1.36) 7.32 (0.68) 7.31 (0.68) 7.96 (0.74) 36 1 / 2" (927) 19.63 (1.82)
5046 ◊ 9.04 (0.84) 26 1 / 16 " (661) 50" (1270) 16.76 (1.56) 8.39 (0.78) 8.38 (0.78) 9.04 (0.84) 30 1 / 2" (775) 22.11 (2.05)
5050 ◊ 10.13 (0.94) 26 1 / 16 " (661) 56" (1422) 18.89 (1.76) 9.45 (0.88) 9.44 (0.88) 10.13 (0.94) 24 1 / 2" (622) 24.59 (2.28)
5056 ◊ 11.21 (1.04) 26 1 / 16 " (661) 62" (1575) 21.02 (1.95) 10.52 (0.98) 10.50 (0.98) 11.21 (1.04) 18 1 / 2 " (470) 27.06 (2.51)
5060 ◊ 12.30 (1.14) 26 1 / 16 " (661) 68" (1727) 23.15 (2.15) 11.58 (1.08) 11.57 (1.07) 12.30 (1.14) 12 1 / 2" (318) 29.54 (2.74)
5610 1.61 (0.15) 29 1 / 16 " (738) 8" (203) 2.08 (0.19) 1.04 (0.10) 1.04 (0.10) 1.61 (0.15) 72 1 / 2 " (1842) 5.23 (0.49)
5616 2.82 (0.26) 29 1 / 16" (738) 14" (356) 4.46 (0.41) 2.23 (0.21) 2.23 (0.21) 2.82 (0.26) 66 1 / 2" (1689) 7.96 (0.74)
5620 4.03 (0.37) 29 1 / 16" (738) 20" (508) 6.84 (0.64) 3.42 (0.32) 3.42 (0.32) 4.03 (0.37) 60 1 / 2" (1537) 10.69 (0.99)
5626 5.24 (0.49) 29 1 / 16" (738) 26" (660) 9.22 (0.86) 4.61 (0.43) 4.61 (0.43) 5.24 (0.49) 54 1 ⁄2 (1384) 13.42 (1.25)
5630 ◊ 6.45 (0.60) 29 1 / 16 " (738) 32" (813) 11.60 (1.08) 5.80 (0.54) 5.79 (0.54) 6.45 (0.60) 48 1 / 2" (1232) 16.15 (1.50)
5636 ◊ 7.66 (0.71) 29 1 / 16 " (738) 38" (965) 13.98 (1.30) 6.99 (0.65) 6.98 (0.65) 7.66 (0.71) 42 1 / 2" (1080) 18.88 (1.75)
5640 ◊ 8.87 (0.82) 29 1 / 16 " (738) 44" (1118) 16.35 (1.52) 8.18 (0.76) 8.17 (0.76) 8.87 (0.82) 36 1 / 2" (927) 21.61 (2.01)
5646 ◊ 10.08 (0.94) 29 1 / 16 " (738) 50" (1270) 18.73 (1.74) 9.37 (0.87) 9.36 (0.87) 10.08 (0.94) 30 1 / 2" (775) 24.34 (2.26)
5650 ◊ 11.29 (1.05) 29 1 / 16 " (738) 56" (1422) 21.11 (1.96) 10.56 (0.98) 10.55 (0.98) 11.29 (1.05) 24 1 / 2 " (622) 27.06 (2.51) Gliding Windows
5656 ◊ 12.50 (1.16) 29 1 / 16 " (738) 62" (1575) 23.49 (2.18) 11.75 (1.09) 11.74 (1.09) 12.50 (1.16) 18 1 / 2" (470) 29.79 (2.77) 100 Series
5660 ◊ 13.71 (1.27) 29 1 / 16 " (738) 68" (1727) 25.87 (2.40) 12.94 (1.20) 12.92 (1.20) 13.71 (1.27) 12 1 / 2 " (318) 32.52 (3.02)
6010 1.78 (0.17) 32 1 / 16 " (814) 8" (203) 2.30 (0.21) 1.15 (0.11) 1.15 (0.11) 1.78 (0.17) 72 1 / 2 " (1842) 5.71 (0.53)
6016 3.11 (0.29) 32 1 / 16 " (814) 14" (356) 4.93 (0.46) 2.47 (0.23) 2.46 (0.23) 3.11 (0.29) 66 1 / 2" (1689) 8.69 (0.81)
6020 4.45 (0.41) 32 1 / 16 " (814) 20" (508) 7.56 (0.70) 3.78 (0.35) 3.78 (0.35) 4.45 (0.41) 60 1 / 2 " (1537) 11.67 (1.08)
6026 ◊ 5.78 (0.54) 32 1 / 16 " (814) 26" (660) 10.19 (0.95) 5.10 (0.47) 5.09 (0.47) 5.78 (0.54) 54 1 / 2" (1384) 14.65 (1.36)
6030 ◊ 7.12 (0.66) 32 1 / 16 " (814) 32" (813) 12.82 (1.19) 6.41 (0.60) 6.40 (0.59) 7.12 (0.66) 48 1 / 2" (1232) 17.63 (1.64)
6036 ◊ 8.45 (0.79) 32 1 / 16 " (814) 38" (965) 15.44 (1.43) 7.73 (0.72) 7.72 (0.72) 8.45 (0.79) 42 1 / 2 " (1080) 20.61 (1.91)
6040 ◊ 9.79 (0.91) 32 1 / 16 " (814) 44" (1118) 18.07 (1.68) 9.04 (0.84) 9.03 (0.84) 9.79 (0.91) 36 1 / 2" (927) 23.59 (2.19)
6046 ◊ 11.12 (1.03) 32 1 / 16" (814) 50" (1270) 20.70 (1.92) 10.36 (0.96) 10.34 (0.96) 11.12 (1.03) 30 1 / 2" (775) 26.56 (2.47)
6050 ◊ 12.46 (1.16) 32 1 / 16" (814) 56" (1422) 23.33 (2.17) 11.67 (1.08) 11.66 (1.08) 12.46 (1.16) 24 1 / 2" (622) 29.54 (2.74)
6056 ◊ 13.79 (1.28) 32 1 / 16" (814) 62" (1575) 25.96 (2.41) 12.99 (1.21) 12.97 (1.21) 13.79 (1.28) 18 1 / 2" (470) 32.52 (3.02)
6060 ◊ 15.13 (1.41) 32 1 / 16 " (814) 68" (1727) 28.59 (2.66) 14.30 (1.33) 14.28 (1.33) 15.13 (1.41) 12 1 / 2 " (318) 35.50 (3.30)

Gliding Window Opening and Area Specifications – XOX 1:2:1 Sash Ratio
Clear Opening in Full Open Position Top of Subfloor
Window Clear Opening Total Glass Fixed Sash Single Active Sash Vent to Top of Inside Overall Window
Number Area Width Height Area Glass Area Glass Area Area Sill Stop Area
Sq. Ft./(m 2 ) Inches/(mm) Inches/(mm) Sq. Ft./(m 2 ) Sq. Ft./(m 2 ) Sq. Ft./(m 2 ) Sq. Ft./(m 2 ) Inches/(mm) Sq. Ft./(m 2 )
5016 1.16 (0.11) 11 7 / 8 " (302) 14" (356) 3.82 (0.36) 2.18 (0.20) 0.82 (0.08) 2.31 (0.21) 66 1 / 2 " (1689) 7.23 (0.67)
5020 1.65 (0.15) 11 7 / 8 " (302) 20" (508) 5.86 (0.54) 3.34 (0.31) 1.26 (0.12) 3.31 (0.31) 60 1 / 2 " (1537) 9.71 (0.90)
5026 2.15 (0.20) 11 7 / 8 " (302) 26" (660) 7.90 (0.73) 4.50 (0.42) 1.70 (0.16) 4.30 (0.40) 54 1 / 2 " (1384) 12.19 (1.13) • "Top of Subfloor
5030 2.64 (0.25) 11 7 / 8 " (302) 32" (813) 9.94 (0.92) 5.66 (0.53) 2.14 (0.20) 5.29 (0.49) 48 1 / 2 " (1232) 14.67 (1.36) to Top of Inside Sill
Stop" is calculated
5036 3.14 (0.29) 11 7 / 8" (302) 38" (965) 11.98 (1.11) 6.83 (0.63) 2.58 (0.24) 6.28 (0.58) 42 1 / 2" (1080) 17.15 (1.59) based upon a
5040 3.64 (0.34) 11 7 / 8" (302) 44" (1118) 14.02 (1.30) 7.99 (0.74) 3.01 (0.28) 7.27 (0.68) 36 1 / 2" (927) 19.63 (1.82) structural header
1
height of 6'-10 / 2 "
5046 4.13 (0.38) 11 7 / 8 " (302) 50" (1270) 16.06 (1.49) 9.15 (0.85) 3.45 (0.32) 8.26 (0.77) 30 1 / 2 " (775) 22.11 (2.05) (2096).
5050 4.63 (0.43) 11 7 / 8 " (302) 56" (1422) 18.09 (1.68) 10.31 (0.96) 3.89 (0.36) 9.25 (0.86) 24 1 / 2 " (622) 24.59 (2.28) • Dimensions in
parentheses are
5056 5.12 (0.48) 11 7 / 8" (302) 62" (1575) 20.13 (1.87) 11.47 (1.07) 4.33 (0.40) 10.25 (0.95) 18 1 / 2" (470) 27.06 (2.51)
in millimeters or
5060 5.62 (0.52) 11 7 / 8 " (302) 68" (1727) 22.17 (2.06) 12.63 (1.17) 4.77 (0.44) 11.24 (1.04) 12 1 / 2 " (318) 29.54 (2.74) square meters.
◊Meet or exceed
6016 1.45 (0.13) 14 7 / 8 " (378) 14" (356) 4.76 (0.44) 2.65 (0.25) 1.06 (0.10) 2.90 (0.27) 66 1 / 2 " (1689) 8.69 (0.81)
clear opening area
6020 2.07 (0.19) 14 7 / 8 " (378) 20" (508) 7.30 (0.68) 4.06 (0.38) 1.62 (0.15) 4.14 (0.38) 60 1 / 2 " (1537) 11.67 (1.08) of 5.7 sq. ft. or
.53 m 2 , clear
6026 2.69 (0.25) 14 7 / 8" (378) 26" (660) 9.84 (0.91) 5.47 (0.51) 2.18 (0.20) 5.38 (0.50) 54 1 / 2" (1384) 14.65 (1.36)
opening width of
6030 3.31 (0.31) 14 7 / 8" (378) 32" (813) 12.38 (1.15) 6.88 (0.64) 2.75 (0.26) 6.62 (0.62) 48 1 / 2" (1232) 17.63 (1.64) 20" (508) and
clear opening
6036 3.93 (0.37) 14 7 / 8" (378) 38" (965) 14.92 (1.39) 8.29 (0.77) 3.31 (0.31) 7.86 (0.73) 42 1 / 2" (1080) 20.61 (1.91)
height of 24" (610).
continued on next page
