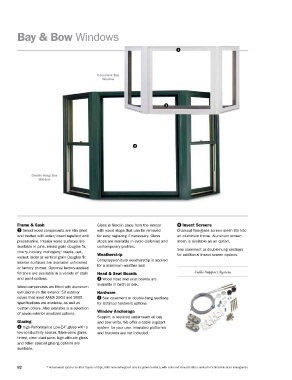

Page 84 - Andersen Architectural Collection E-Series 2017-18 Product Guide for Professionals

Bay & Bow Windows

1

Casement Bay
Window

3

2

Double-Hung Bay
Window

Frame & Sash 8 Glass is fixed in place from the interior 8 5 Insect Screens
1 Select wood components are kiln dried with wood stops that can be removed Charcoal fiberglass screen mesh fits into
and treated with water/insect repellent and for easy reglazing if necessary. Glass an aluminum frame. Aluminum screen
preservative. Interior wood surfaces are stops are available in ovolo (colonial) and mesh is available as an option.
available in pine, mixed grain douglas fir, contemporary profiles.
cherry, hickory, mahogany, maple, oak, Weatherstrip See casement or double-hung sections
*
walnut, alder or vertical grain Douglas fir. for additional insect screen options.
Interior surfaces are available unfinished Compression bulb weatherstrip is applied
or factory primed. Optional factory-applied for a maximum weather seal.
finishes are available in a variety of stain Head & Seat Boards Cable Support System
and paint options. 3 Wood head and seat boards are
available in birch or oak.
Wood components are fitted with aluminum
extrusions on the exterior. 50 exterior Hardware
colors that meet AAMA 2604 and 2605 4 See casement or double-hung sections
specifications are available, as well as for detailed hardware options.
custom colors. Also available is a selection
of seven exterior anodized options. Window Anchorage
Support is required underneath all bay
Glazing and bow units. We offer a cable support
®
2 High-Performance Low-E4 glass with a system for your use. Insulated platforms
low-conductivity spacer. Triple-pane glass, and brackets are not included.
tinted, clear dual-pane, high-altitude glass
and other special glazing options are
available.

82 * Actual wood species is either Sapele or Sipo, both non-endangered species grown in Africa, with color and characteristics similar to Central American mahoganies.
