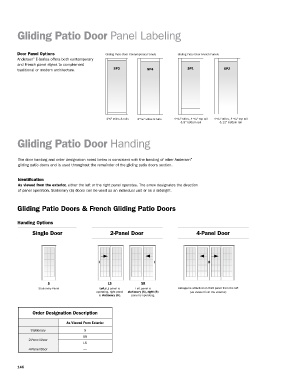

Page 148 - Andersen Architectural Collection E-Series 2017-18 Product Guide for Professionals

Gliding Patio Door Panel Labeling

Door Panel Options Gliding Patio Door Contemporary Panels Gliding Patio Door French Panels
Andersen E-Series offers both contemporary
®
and French panel styles to complement
traditional or modern architecture. SP3 SP4 SP1 SP2

2 3 ⁄4" stiles & rails 4 11 ⁄16" stiles & rails 4 11 ⁄16" stiles, 4 11 ⁄16" top rail 4 11 ⁄16" stiles, 4 11 ⁄16" top rail
& 8" bottom rail & 12" bottom rail

Gliding Patio Door Handing

The door handing and order designation noted below is consistent with the handing of other Andersen
®
gliding patio doors and is used throughout the remainder of the gliding patio doors section.

Identification
As viewed from the exterior, either the left or the right panel operates. The arrow designates the direction
of panel operation. Stationary (S) doors can be used as an individual unit or as a sidelight.

Gliding Patio Doors & French Gliding Patio Doors

Handing Options
Single Door 2-Panel Door 4-Panel Door

S S LS S SSR LS LS LS SR SR
SR
Stationary Panel Left (L) panel is Left panel is Astragal is attached on third panel from the left
operating, right panel stationary (S), right (R) (as viewed from the exterior)
is stationary (S). panel is operating.

Order Designation Description

As Viewed From Exterior
Stationary S
SR
2-Panel Door
LS
4-Panel Door —
