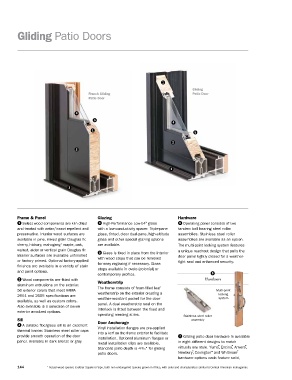

Page 146 - Andersen Architectural Collection E-Series 2017-18 Product Guide for Professionals

Gliding Patio Doors

1
Gliding
French Gliding Patio Door
Patio Door

4
5
4
1
5
2
2

3

3

Frame & Panel Glazing Hardware
1 Select wood components are kiln dried 4 High-Performance Low-E4 glass 6 Operating panel consists of two

®

and treated with water/insect repellent and with a low-conductivity spacer. Triple-pane tandem ball bearing steel roller
preservative. Interior wood surfaces are glass, tinted, clear dual-pane, high-altitude assemblies. Stainless steel roller
available in pine, mixed grain Douglas fir, glass and other special glazing options assemblies are available as an option.
cherry, hickory, mahogany, maple, oak, are available. The multi-point locking system features G
*
walnut, alder or vertical grain Douglas fir. a unique reachout design that pulls the

Interior surfaces are available unfinished 5 Glass is fixed in place from the interior door panel tightly closed for a weather-
or factory primed. Optional factory-applied with wood stops that can be removed tight seal and enhanced security.
finishes are available in a variety of stain for easy reglazing if necessary. Glass
and paint options. stops available in ovolo (colonial) or
contemporary profiles. 6
2 Wood components are fitted with Weatherstrip Hardware

aluminum extrusions on the exterior.
50 exterior colors that meet AAMA The frame consists of foam-filled leaf Multi-point
locking
2604 and 2605 specifications are weatherstrip on the exterior creating a system
available, as well as custom colors. weather-resistant pocket for the door
Also available is a selection of seven panel. A dual weatherstrip seal on the
exterior anodized options. interlock is fitted between the fixed and
operating meeting stiles. Stainless steel roller
Sill Door Anchorage assembly
3 A durable fiberglass sill is an excellent

thermal barrier. Stainless steel roller caps Vinyl installation flanges are pre-applied
into a kerf on the frame exterior to facilitate
provide smooth operation of the door installation. Optional aluminum flanges or 7 Gliding patio door hardware is available

panel. Available in dark bronze or gray. metal installation clips are available. in eight different designs to match
®
®
®
Standard jamb depth is 4 ⁄16" for gliding virtually any style. Yuma, Encino, Anvers,
9
®
®
™
patio doors. Newbury, Covington and Whitmore
hardware options each feature solid,
144 * Actual wood species is either Sapele or Sipo, both non-endangered species grown in Africa, with color and characteristics similar to Central American mahoganies.
