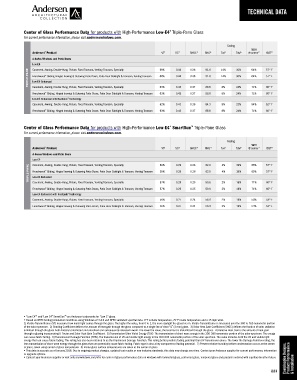

Page 225 - Andersen Architectural Collection A-Series 2018-19 Product Guide for Professionals

TECHNICAL DATA

Center of Glass Performance Data for products with High-Performance Low-E4 Triple-Pane Glass
®
For current performance information, please visit andersenwindows.com.
Fading
%RH
Andersen Product VT 1 SC 2 SHGC 3 RHG 4 Tuv 5 Tdw 6 @ center 7 IGST 8
®
A-Series Windows and Patio Doors
Low-E4 66% 0.44 0.38 91.6 14% 30% 64% 57° F
Casement, Awning, Double-Hung, Picture, Fixed Transom, Venting Transom, Specialty
TRIPLE-PANE Frenchwood ® Gliding, Hinged Inswing & Outswing Patio Doors, Patio Door Sidelight & Transom, Venting Transom 66% 0.44 0.38 91.6 14% 30% 64% 57° F
Low-E4 Enhanced
Casement, Awning, Double-Hung, Picture, Fixed Transom, Venting Transom, Specialty
24%
60° F
71%
Frenchwood ® Gliding, Hinged Inswing & Outswing Patio Doors, Patio Door Sidelight & Transom, Venting Transom 63% 0.43 0.37 88.6 8% 24% 71% 60° F
63%
0.43
0.37
88.6
8%
Low-E4 Enhanced with HeatLock ® Technology
Casement, Awning, Double-Hung, Picture, Fixed Transom, Venting Transom, Specialty 62% 0.41 0.36 84.3 8% 23% 54% 52° F
Frenchwood ® Gliding, Hinged Inswing & Outswing Patio Doors, Patio Door Sidelight & Transom, Venting Transom 63% 0.43 0.37 88.6 8% 24% 71% 60° F
Center of Glass Performance Data for products with High-Performance Low-E4 SmartSun Triple-Pane Glass
®
™
For current performance information, please visit andersenwindows.com.
Fading
%RH
®
Andersen Product VT 1 SC 2 SHGC 3 RHG 4 Tuv 5 Tdw 6 @ center 7 IGST 8
A-Series Windows and Patio Doors
TRIPLE-PANE Low-E4 59% 0.29 0.26 62.0 4% 19% 65% 57° F
Casement, Awning, Double-Hung, Picture, Fixed Transom, Venting Transom, Specialty
TRIPLE-PANE Frenchwood ® Gliding, Hinged Inswing & Outswing Patio Doors, Patio Door Sidelight & Transom, Venting Transom 59% 0.29 0.26 62.0 4% 19% 65% 57° F
Low-E4 Enhanced
Casement, Awning, Double-Hung, Picture, Fixed Transom, Venting Transom, Specialty
0.25
0.29
59.6
71%
60° F
2%
16%
57%
Frenchwood ® Gliding, Hinged Inswing & Outswing Patio Doors, Patio Door Sidelight & Transom, Venting Transom 57% 0.29 0.25 59.6 2% 16% 71% 60° F
Low-E4 Enhanced with HeatLock ® Technology
Casement, Awning, Double-Hung, Picture, Fixed Transom, Venting Transom, Specialty 56% 0.27 0.24 56.9 2% 16% 54% 53° F
Frenchwood ® Gliding, Hinged Inswing & Outswing Patio Doors, Patio Door Sidelight & Transom, Venting Transom 56% 0.27 0.24 56.9 2% 16% 54% 53° F

• "Low-E4 ® " and "Low-E4 ® SmartSun ™ " are Andersen trademarks for "Low-E" glass.
• Based on NFRC testing/simulation conditions using Windows v7.3.4.0 and NFRC validated spectral data. 0°F outside temperature, 70°F inside temperature and a 15 mph wind.
1) Visible Transmittance (VT) measures how much light comes through the glass. The higher the value, from 0 to 1, the more daylight the glass lets in. Visible Transmittance is measured over the 380 to 760 nanometer portion
1
of the solar spectrum. 2) Shading Coefficient defines the amount of heat gain through the glass compared to a single lite of clear / 8 " (3 mm) glass. 3) Solar Heat Gain Coefficient (SHGC) defines the fraction of solar radiation
admitted through the glass both directly transmitted and absorbed and subsequently released inward. The lower the value, the less heat is transmitted through the glass. 4) Relative Heat Gain is the amount of heat gain
through a glazing incorporating U-Factor and Solar Heat Gain Coefficient. 5) Transmission Ultra-Violet Energy (TUV). The transmission of short-wave energy in the 300-380 nanometer portion of the solar spectrum. The energy
can cause fabric fading. 6) Transmission Damage Function (TDW). The transmission of UV and visible light energy in the 300-600 nanometer portion of the solar spectrum. The value includes both the UV and visible light
energy that can cause fabric fading. This rating has also been referred to as the Krochmann Damage Function. This rating better predicts fading potential than UV transmission alone. The lower the Damage Function rating, the
less transmission of short-wave energy through the glass that can potentially cause fabric fading. Fabric type is also a key component of fading potential. 7) Percent relative humidity before condensation occurs at the center
of glass, taken using center of glass temperature. 8) Inside glass surface temperatures are taken at the center of glass.
• This data is accurate as of January 2018. Due to ongoing product changes, updated test results or new industry standards, this data may change over time. Contact your Andersen supplier for current performance information
or upgrade options.
• Contact your Andersen supplier or visit andersenwindows.com/nfrc for center of glass performance data on windows with laminated glass, patterned glass, tempered glass and products ordered with capillary breather tubes. Combination Designs, Product Performance
223 & Installation
