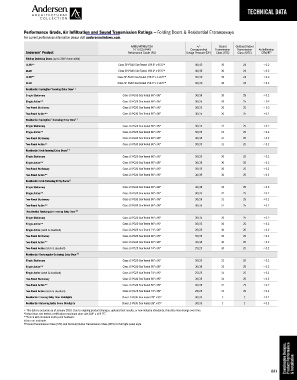

Page 223 - Andersen Architectural Collection A-Series 2018-19 Product Guide for Professionals

TECHNICAL DATA

Performance Grade, Air Infiltration and Sound Transmission Ratings — Folding Doors & Residential Entranceways
For current performance information please visit andersenwindows.com.

AAMA/WDMA/CSA +/- Sound Outdoor/Indoor
101/IS2/A440 Corresponding Transmission Transmission Air Infiltration
Andersen Product Performance Grade (PG) Design Pressure (DP) Class (STC) Class (OITC) CFM/FT 2
®
Folding Outswing Doors (up to 288" frame width)
1L3R** Class SP-PG40 Size Tested 159.8" x 95.5"* 40/45 30 24 < 0.2
2L2R Class SP-PG40 Size Tested 159.0" x 95.5"* 40/45 30 24 < 0.2
1L3R** Class SP-PG30 Size Tested 159.8" x 119.5"* 30/30 30 24 < 0.2
2L2R Class SP-PG30 Size Tested 159.0" x 119.5"* 30/30 30 24 < 0.2
Residential Springline ™ Inswing Entry Door ††
Single Stationary Class LC-PG30 Size Tested 86" x 95" 30/35 30 25 < 0.2
Single Active** Class LC-PG30 Size Tested 86" x 95" 30/35 30 25 < 0.2
Two-Panel Stationary Class LC-PG30 Size Tested 86" x 95" 30/35 30 25 < 0.2
Two-Panel Active** Class LC-PG30 Size Tested 86" x 95" 30/35 30 25 < 0.2
Residential Springline ™ Outswing Entry Door ††
Single Stationary Class LC-PG30 Size Tested 86" x 95" 30/35 31 25 < 0.2
Single Active** Class LC-PG30 Size Tested 86" x 95" 30/35 31 25 < 0.2
Two-Panel Stationary Class LC-PG30 Size Tested 86" x 95" 30/35 31 25 < 0.2
Two-Panel Active** Class LC-PG30 Size Tested 86" x 95" 30/35 31 25 < 0.2
Residential Arch Inswing Entry Doors ††
Single Stationary Class LC-PG30 Size Tested 86" x 95" 30/35 30 25 < 0.2
Single Active** Class LC-PG30 Size Tested 86" x 95" 30/35 30 25 < 0.2
Two-Panel Stationary Class LC-PG30 Size Tested 86" x 95" 30/35 30 25 < 0.2
Two-Panel Active** Class LC-PG30 Size Tested 86" x 95" 30/35 30 25 < 0.2
Residential Arch Outswing Entry Doors ††
Single Stationary Class LC-PG30 Size Tested 86" x 95" 30/35 31 25 < 0.2
Single Active** Class LC-PG30 Size Tested 86" x 95" 30/35 31 25 < 0.2
Two-Panel Stationary Class LC-PG30 Size Tested 86" x 95" 30/35 31 25 < 0.2
Two-Panel Active** Class LC-PG30 Size Tested 86" x 95" 30/35 31 25 < 0.2
Residential Rectangular Inswing Entry Door ††
Single Stationary Class LC-PG30 Size Tested 86" x 95" 30/35 30 25 < 0.2
Single Active** Class LC-PG30 Size Tested 86" x 95" 30/35 30 25 < 0.2
Single Active (latch & deadbolt) Class LC-PG25 Size Tested 74" x 95" 25/25 30 25 < 0.2
Two-Panel Stationary Class LC-PG30 Size Tested 86" x 95" 30/35 30 25 < 0.2
Two-Panel Active** Class LC-PG30 Size Tested 86" x 95" 30/35 30 25 < 0.2
Two-Panel Active (latch & deadbolt) Class LC-PG25 Size Tested 74" x 95" 25/25 30 25 < 0.2
Residential Rectangular Outswing Entry Door ††
Single Stationary Class LC-PG30 Size Tested 86" x 95" 30/35 31 25 < 0.2
Single Active** Class LC-PG30 Size Tested 86" x 95" 30/35 31 25 < 0.2
Single Active (latch & deadbolt) Class LC-PG25 Size Tested 74" x 95" 25/25 31 25 < 0.2
Two-Panel Stationary Class LC-PG30 Size Tested 86" x 95" 30/35 31 25 < 0.2
Two-Panel Active** Class LC-PG30 Size Tested 86" x 95" 30/35 31 25 < 0.2
Two-Panel Active (latch & deadbolt) Class LC-PG25 Size Tested 74" x 95" 25/25 31 25 < 0.2
Residential Inswing Entry Door Sidelights Class LC-PG35 Size Tested 28" x 95" 30/35 † † < 0.2
Residential Outswing Entry Doors Sidelights Class LC-PG35 Size Tested 28" x 95" 30/35 † † < 0.2
• This data is accurate as of January 2018. Due to ongoing product changes, updated test results, or new industry standards, this data may change over time.
1
*Actual door size tested; certification maximum door size 288" x 119 / 2 " .
**Tested with standard multi-point hardware.
†Data not available.
†† Sound Transmission Class (STC) and Outdoor/Indoor Transmission Class (OITC) for full light panel style.

Combination Designs, Product Performance & Installation
