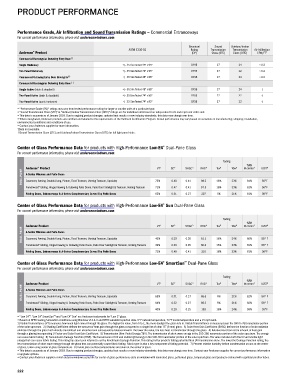

PRODUCT PERFORMANCE

Performance Grade, Air Infiltration and Sound Transmission Ratings — Commercial Entranceways
For current performance information, please visit andersenwindows.com.

Structural Sound Outdoor/Indoor
ASTM E330-02 Rating Transmission Transmission Air Infiltration
Andersen Product (DP) Class (STC) Class (OITC) CFM/FT 2
®
Commercial Rectangular Outswing Entry Door ††
Single Stationary +/- 35 Size Tested 45" x 95" DP35 27 24 < 0.2
Two-Panel Stationary +/- 35 Size Tested 74" x 95" DP35 27 22 < 0.2
Commercial Outswing Entry Door Sidelights †† +/- 35 Size Tested 45" x 95" DP35 27 24 < 0.2
Commercial Rectangular Outswing Entry Door ††
Single Active (latch & deadbolt) +/- 35 Size Tested 45" x 95" DP35 27 24 †
Two-Panel Active (latch & deadbolt) +/- 35 Size Tested 74" x 95" DP35 27 22 †
Two-Panel Active (panic hardware) +/- 35 Size Tested 74" x 95" DP35 27 22 †
• "Performance Grade (PG)" ratings may vary from tested performance rating for larger or smaller units of a particular type.
• "Sound Transmission Class (STC)" & "Outdoor/Indoor Transmission Class (OITC)" ratings are for individual units based on independent tests and represent entire unit.
• This data is accurate as of January 2018. Due to ongoing product changes, updated test results or new industry standards, this data may change over time.
• Where designated, Andersen products are certified and labeled to the requirements of the Hallmark Certification Program. Actual performance may vary based on variations in manufacturing, shipping, installation,
environmental conditions and conditions of use.
• Contact your Andersen supplier for more information.
†Data not available.
†† Sound Transmission Class (STC) and Outdoor/Indoor Transmission Class (OITC) for full light panel style.
Center of Glass Performance Data for products with High-Performance Low-E4 Dual-Pane Glass
®
For current performance information, please visit andersenwindows.com.
Fading
%RH
Andersen Product VT 1 SC 2 SHGC 3 RHG 4 Tuv 5 Tdw 6 @ center 7 IGST 8
®
DUAL-PANE A-Series Windows and Patio Doors 72% 0.48 0.41 98.2 16% 33% 61% 56°F
Casement, Awning, Double-Hung, Picture, Fixed Transom, Venting Transom, Specialty
Frenchwood ® Gliding, Hinged Inswing & Outswing Patio Doors, Patio Door Sidelight & Transom, Venting Transom 71% 0.47 0.41 97.5 16% 33% 61% 56°F
Folding Doors, Entranceways & A-Series Complementary Curved Top Patio Doors 65% 0.31 0.27 207 5% 21% 61% 56°F
Center of Glass Performance Data for products with High-Performance Low-E4 Sun Dual-Pane Glass
®
For current performance information, please visit andersenwindows.com.
Fading
%RH
AndersenProduct VT 1 SC 2 SHGC 3 RHG 4 Tuv 5 Tdw 6 @ center 7 IGST 8

DUAL-PANE A-Series Windows and Patio Doors 40% 0.29 0.25 61.1 16% 24% 60% 55° F
Casement, Awning, Double-Hung, Picture, Fixed Transom, Venting Transom, Specialty
Frenchwood ® Gliding, Hinged Inswing & Outswing Patio Doors, Patio Door Sidelight & Transom, Venting Transom 39% 0.29 0.25 60.6 15% 23% 61% 56° F
Folding Doors, Entranceways & A-Series Complementary Curved Top Patio Doors 72% 0.48 0.41 310 16% 33% 61% 56°F

Center of Glass Performance Data for products with High-Performance Low-E4 SmartSun Dual-Pane Glass
™
®
For current performance information, please visit andersenwindows.com.
Fading
%RH
AndersenProduct VT 1 SC 2 SHGC 3 RHG 4 Tuv 5 Tdw 6 @ center 7 IGST 8

DUAL-PANE A-Series Windows and Patio Doors 65% 0.31 0.27 65.6 5% 21% 62% 56° F
Casement, Awning, Double-Hung, Picture, Fixed Transom, Venting Transom, Specialty
Frenchwood ® Gliding, Hinged Inswing & Outswing Patio Doors, Patio Door Sidelight & Transom, Venting Transom 64% 0.32 0.27 66.3 5% 21% 62% 56° F
Folding Doors, Entranceways & A-Series Complementary Curved Top Patio Doors 40% 0.29 0.25 193 16% 24% 59% 55°F
• "Low-E4 ® ", "Low-E4 ® SmartSun ™ " and "Low-E4 ® Sun" are Andersen trademarks for "Low-E" glass.
• Based on NFRC testing/simulation conditions using Windows v7.3.4.0 and NFRC validated spectral data. 0°F outside temperature, 70°F inside temperature and a 15 mph wind.
1) Visible Transmittance (VT) measures how much light comes through the glass. The higher the value, from 0 to 1, the more daylight the glass lets in. Visible Transmittance is measured over the 380 to 760 nanometer portion
of the solar spectrum. 2) Shading Coefficient defines the amount of heat gain through the glass compared to a single lite of clear / 8 " (3 mm) glass. 3) Solar Heat Gain Coefficient (SHGC) defines the fraction of solar radiation
1
admitted through the glass both directly transmitted and absorbed and subsequently released inward. The lower the value, the less heat is transmitted through the glass. 4) Relative Heat Gain is the amount of heat gain
through a glazing incorporating U-Factor and Solar Heat Gain Coefficient. 5) Transmission Ultra-Violet Energy (TUV). The transmission of short-wave energy in the 300-380 nanometer portion of the solar spectrum. The energy
can cause fabric fading. 6) Transmission Damage Function (TDW). The transmission of UV and visible light energy in the 300-600 nanometer portion of the solar spectrum. The value includes both the UV and visible light
energy that can cause fabric fading. This rating has also been referred to as the Krochmann Damage Function. This rating better predicts fading potential than UV transmission alone. The lower the Damage Function rating, the
less transmission of short-wave energy through the glass that can potentially cause fabric fading. Fabric type is also a key component of fading potential. 7) Percent relative humidity before condensation occurs at the center
of glass, taken using center of glass temperature. 8) Inside glass surface temperatures are taken at the center of glass.
• This data is accurate as of January 2018. Due to ongoing product changes, updated test results or new industry standards, this data may change over time. Contact your Andersen supplier for current performance information
or upgrade options.
• Contact your Andersen supplier or visit andersenwindows.com/nfrc for center of glass performance data on windows with laminated glass, patterned glass, tempered glass and products ordered with capillary breather tubes.
