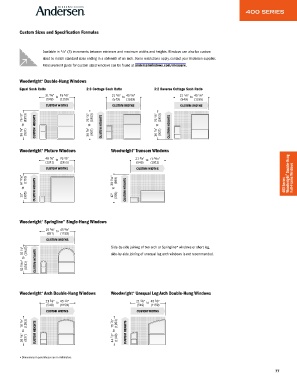

Page 79 - Andersen Windows & Doors 400 Series & 200 Series Product Guide for Professionals

Custom Sizes and Specification Formulas

1
Available in ⁄ 8" (3) increments between minimum and maximum widths and heights. Windows can also be custom
sized to match standard sizes ending in a sixteenth of an inch. Some restrictions apply, contact your Andersen supplier.
Measurement guide for custom sized windows can be found at andersenwindows.com/measure.

Woodwright Double-Hung Windows
®
Equal Sash Ratio 2:3 Cottage Sash Ratio 3:2 Reverse Cottage Sash Ratio
21 5 ⁄8" to 45 5 ⁄8" 21 5 ⁄8" to 45 5 ⁄8" 21 5 ⁄8" to 45 5 ⁄8"
(549) (1159) (549) (1593) (549) (1159)
CUSTOM WIDTHS CUSTOM WIDTHS CUSTOM WIDTHS
76 7 ⁄8" (1953) 76 7 ⁄8" (1953) 76 7 ⁄8" (1953)

to CUSTOM HEIGHTS to CUSTOM HEIGHTS to CUSTOM HEIGHTS
36 7 ⁄8" (937) 36 7 ⁄8" (937) 36 7 ⁄8" (937)

Woodwright Picture Windows Woodwright Transom Windows
®
®
48 7 ⁄8" to 76 7 ⁄8" 21 5 ⁄8" to 75 5 ⁄16"
(1241) (1953) (549) (1913) ® Double-Hung
CUSTOM WIDTHS CUSTOM WIDTHS
67 5 ⁄16" (1710) 39 5 ⁄16" (999) Full-Frame Windows

to CUSTOM HEIGHTS to CUSTOM HEIGHTS 400 Series Woodwright
12" (305) 12" (305)

™
®
Woodwright Springline Single-Hung Windows
25 5 ⁄8" to 45 5 ⁄8"
(651) (1159)
CUSTOM WIDTHS
76 1 ⁄2" (1943) Side-by-side joining of two arch or Springline ™ windows or short leg,
side-by-side joining of unequal leg arch windows is not recommended.
to CUSTOM HEIGHTS
52 13 ⁄16" (1341)

Woodwright Arch Double-Hung Windows Woodwright Unequal Leg Arch Double-Hung Windows
®
®
21 5 ⁄8" to 45 1 ⁄4" 21 5 ⁄8" to 45 5 ⁄8"
(549) (1159) (549) (1159)
CUSTOM WIDTHS CUSTOM WIDTHS
76 7 ⁄8" (1953) 76 7 ⁄8" (1953)

to CUSTOM HEIGHTS to CUSTOM HEIGHTS
36 7 ⁄8" (937) 44 7 ⁄8" (1140)

• Dimensions in parentheses are in millimeters.

77
