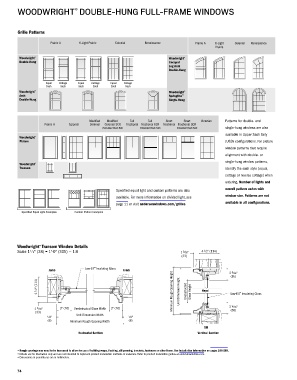

Page 76 - Andersen Windows & Doors 400 Series & 200 Series Product Guide for Professionals

®
WOODWRIGHT DOUBLE-HUNG FULL-FRAME WINDOWS

Grille Patterns
Prairie A 6-Light Prairie Colonial Renaissance Prairie A 6-Light Colonial Renaissance
Prairie

Woodwright ® Woodwright ®
Double-Hung Unequal
Leg Arch
Double-Hung

Equal Cottage Equal Cottage Equal Cottage
Sash Sash Sash Sash Sash Sash
Woodwright ® Woodwright ®
Arch Springline ™
Double-Hung Single-Hung

Modified Modified Tall Tall Short Short Victorian Patterns for double- and
Prairie A Colonial Colonial Colonial SCR Fractional Fractional SCR Fractional Fractional SCR
(Simulated Check Rail) (Simulated Check Rail) (Simulated Check Rail) single-hung windows are also
available in Upper Sash Only
Woodwright ®
Picture (USO) configurations. For picture
window patterns that require
alignment with double- or
single-hung window patterns,
Woodwright ®
Transom identify the sash style (equal,
cottage or reverse cottage) when
ordering. Number of lights and
Specified equal light and custom patterns are also overall pattern varies with
available. For more information on divided light, see window size. Patterns are not
page 11 or visit andersenwindows.com/grilles. available in all configurations.
Specified Equal Light Examples Custom Pattern Examples

®
Woodwright Transom Window Details
Scale 1 ⁄ 2" (38) = 1'-0" (305) — 1:8 1 5 ⁄16" 4 1 ⁄ 2" (114)
1
(33)
Low-E4 Insulating Glass
®
Jamb Jamb 2 9 ⁄16"
(65)
4 1 ⁄ 2" (114) Minimum Rough Opening Height Unit Dimension Height Unobstructed Glass Height Head Low-E4 Insulating Glass
®

1 5 ⁄16" 3" (76) Unobstructed Glass Width 3" (76) 2 9 ⁄16"
(65)
(33)
1 ⁄4" Unit Dimension Width 1 ⁄4"
(6) Minimum Rough Opening Width (6)
Sill
Horizontal Section Vertical Section

• Rough openings may need to be increased to allow for use of building wraps, flashing, sill panning, brackets, fasteners or other items. See installation information on pages 288-289.
• Details are for illustration only and are not intended to represent product installation methods or materials. Refer to product installation guides at andersenwindows.com.
• Dimensions in parentheses are in millimeters.
