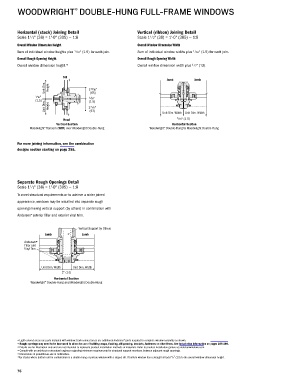

WOODWRIGHT DOUBLE-HUNG FULL-FRAME WINDOWS

Horizontal (stack) Joining Detail Vertical (ribbon) Joining Detail
1
1
Scale 1 ⁄ 2" (38) = 1'-0" (305) — 1:8 Scale 1 ⁄ 2" (38) = 1'-0" (305) — 1:8
Overall Window Dimension Height Overall Window Dimension Width
Sum of individual window heights plus ⁄ 16" (1.5) for each join. Sum of individual window widths plus ⁄ 16" (1.5) for each join.
1
1
Overall Rough Opening Height Overall Rough Opening Width
1
Overall window dimension height.* Overall window dimension width plus ⁄ 2" (13).
Sill
Jamb Jamb
Unit Dim. Height 2 9 ⁄16"
(65)
1 ⁄16" 1 ⁄16"
(1.5) (1.5)
Unit Dim. Height 2 5 ⁄8"
(67)
Unit Dim. Width Unit Dim. Width
1 ⁄16" (1.5)
Head
Vertical Section Horizontal Section
Woodwright ® Transom (WTR) over Woodwright Double-Hung Woodwright ® Double-Hung to Woodwright Double-Hung

For more joining information, see the combination
designs section starting on page 255.

Separate Rough Openings Detail
Scale 1 ⁄ 2" (38) = 1'-0" (305) — 1:8
1
To meet structural requirements or to achieve a wider joined
appearance, windows may be installed into separate rough
openings having vertical support (by others) in combination with
Andersen ® exterior filler and exterior vinyl trim.

Vertical Support by Others
Jamb Jamb
Andersen®
Filler and
Vinyl Trim

Unit Dim. Width Unit Dim. Width
2" (51)
Horizontal Section
Woodwright ® Double-Hung and Woodwright Double-Hung

• Light-colored areas are parts included with window. Dark-colored areas are additional Andersen ® parts required to complete window assembly as shown.
• Rough openings may need to be increased to allow for use of building wraps, flashing, sill panning, brackets, fasteners or other items. See installation information on pages 288-289.
• Details are for illustration only and are not intended to represent product installation methods or materials. Refer to product installation guides at andersenwindows.com.
• Consult with an architect or structural engineer regarding minimum requirements for structural support members between adjacent rough openings.
• Dimensions in parentheses are in millimeters.
1
*For stacks where bottom unit in combination is a double-hung or picture window with a sloped sill. If bottom window has a straight sill add / 2 " (13) to the overall window dimension height.
