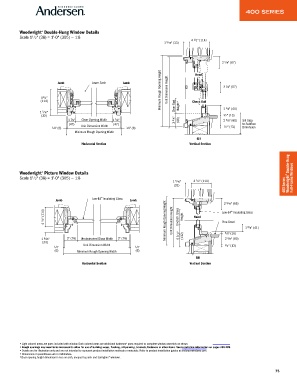

Woodwright Double-Hung Window Details
1
Scale 1 ⁄ 2" (38) = 1'-0" (305) — 1:8
1 5 ⁄16" (33) 4 1 ⁄ 2" (114)

2 5 ⁄8" (67)
Minimum Rough Opening Height Unit Dimension Height

Jamb Lower Sash Jamb Head 2 1 ⁄4" (57)

4 1 ⁄ 2"
(114) Clear Opg. Height * Check Rail
1 5 ⁄16" 1 3 ⁄4" (44)
(33) 1 ⁄ 2" (13)
1 7 ⁄8" Clear Opening Width 1 7 ⁄8" 3 3 ⁄8" (86) 2 3 ⁄8" (60) Sill Stop
(47) (47) to Subfloor
1 ⁄4" (6) Unit Dimension Width 1 ⁄4" (6) 1 ⁄ 2" (13) Dimension
Minimum Rough Opening Width
Sill
Horizontal Section Vertical Section

® Double-Hung

®
Woodwright Picture Window Details
Scale 1 ⁄ 2" (38) = 1'-0" (305) — 1:8 Full-Frame Windows
1
1 5 ⁄16" 4 1 ⁄ 2" (114)
(33) 400 Series Woodwright
®
Low-E4 Insulating Glass
Jamb Jamb 2 9 ⁄16" (65)
4 1 ⁄ 2" (114) Minimum Rough Opening Height Unit Dimension Height Unobstr. Glass Height Head Low-E4 ® Insulating Glass

Pine Stool
1 5 ⁄8" (41)

1 5 ⁄16" 3" (76) Unobstructed Glass Width 3" (76) 5 3 ⁄16" (132) 5 ⁄8" (16)
2 3 ⁄8" (60)
(33)
1 ⁄4" Unit Dimension Width 1 ⁄4" 1 ⁄ 2" (13)
(6) Minimum Rough Opening Width (6)
Sill
Horizontal Section Vertical Section

• Light-colored areas are parts included with window. Dark-colored areas are additional Andersen ® parts required to complete window assembly as shown.
• Rough openings may need to be increased to allow for use of building wraps, flashing, sill panning, brackets, fasteners or other items. See installation information on pages 288-289.
• Details are for illustration only and are not intended to represent product installation methods or materials. Refer to product installation guides at andersenwindows.com.
• Dimensions in parentheses are in millimeters.
*Clear opening height dimension is less on arch, unequal leg arch and Springline ™ windows.
