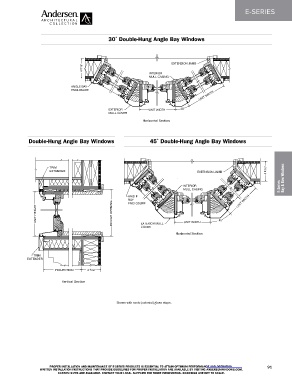

30˚ Double-Hung Angle Bay Windows

EXTENSION JAMB
4 9 /16"
INTERIOR
MULL CASING

ANGLE BAY
ENCLOSURE
UNIT WIDTH

EXTERIOR UNIT WIDTH 30 O
MULL COVER
Horizontal Section

Double-Hung Angle Bay Windows 45˚ Double-Hung Angle Bay Windows

TRIM
EXTENDER EXTENSION JAMB 4 9 /16" Bay & Bow Windows
E-Series
INTERIOR
MULL CASING
ANGLE
BAY UNIT WIDTH
ENCLOSURE
UNIT HEIGHT ROUGH OPENING 45 O

EXTERIOR MULL
COVER UNIT WIDTH
Horizontal Section

TRIM
EXTENDER
PROJECTION 4 9 /16"

Vertical Section

Shown with ovolo (colonial) glass stops.

PROPER INSTALLATION AND MAINTENANCE OF E-SERIES PRODUCTS IS ESSENTIAL TO ATTAIN OPTIMUM PERFORMANCE AND OPERATION. 91
WRITTEN INSTALLATION INSTRUCTIONS THAT PROVIDE GUIDELINES FOR PROPER INSTALLATION ARE AVAILABLE BY VISITING ANDERSENWINDOWS.COM.
CUSTOM SIZES ARE AVAILABLE. CONTACT YOUR LOCAL SUPPLIER FOR MORE INFORMATION. DRAWINGS ARE NOT TO SCALE.
