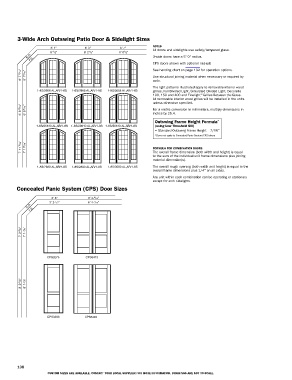

3-Wide Arch Outswing Patio Door & Sidelight Sizes

NOTES
6' 1" 6' 3" 6' 7" All doors and sidelights use safety/tempered glass.
6' 1 /2" 6' 2 1 /2" 6' 6 1 /2"
R.O. F.S. 3-wide doors have a 5' 0" radius.
CPS doors shown with optional mid-rail.
6' 7 13 /16" 6' 7 5 /16" See handing chart on page 132 for operation options.
Use structural joining material when necessary or required by
code.
The light patterns illustrated apply to removable interior wood
1-8S/2668 AL,AR/1-8S 1-8S/2868 AL,AR/1-8S 1-8S/3068 AL,AR/1-8S grilles, Full Divided Light, Simulated Divided Light, Decorelle
™
100, 150 and 400 and Finelight Grilles-Between-the-Glass.
All removable interior wood grilles will be installed in the units
unless otherwise specified.
6' 9 13 /16" 6' 9 5 /16" For a metric conversion in millimeters, multiply dimensions in
inches by 25.4.
Outswing Frame Height Formula *
1-8S/26610 AL,AR/1-8S 1-8S/28610 AL,AR/1-8S 1-8S/30610 AL,AR/1-8S (using Low Threshold Sill)
= Standard Outswing Frame Height – 7/16"
*Does not apply to Concealed Panic System (CPS) doors
7' 11 /16" 7' 11 5 /16" FORMULA FOR COMBINATION DOORS
13
The overall frame dimension (both width and height) is equal
to the sum of the individual unit frame dimensions plus joining
material dimension(s).
1-8S/2680 AL,AR/1-8S 1-8S/2880 AL,AR/1-8S 1-8S/3080 AL,AR/1-8S The overall rough opening (both width and height) is equal to the
overall frame dimensions plus 1/4" on all sides.
Any unit within each combination can be operating or stationary
except for arch sidelights.
Concealed Panic System (CPS) Door Sizes
3' 3" 6' 4- 9 /16"
3' 2- 1 /2" 6' 4- 1 /16"
R.O. F.S.

7' 2- 3 /8" 7' 1- 7 /8"

CPS3273 CPS6473

8' 2- 3 /8" 8' 1- 7 /8"

CPS3283 CPS6483

138
CUSTOM SIZES ARE AVAILABLE. CONTACT YOUR LOCAL SUPPLIER FOR MORE INFORMATION. DRAWINGS ARE NOT TO SCALE.
